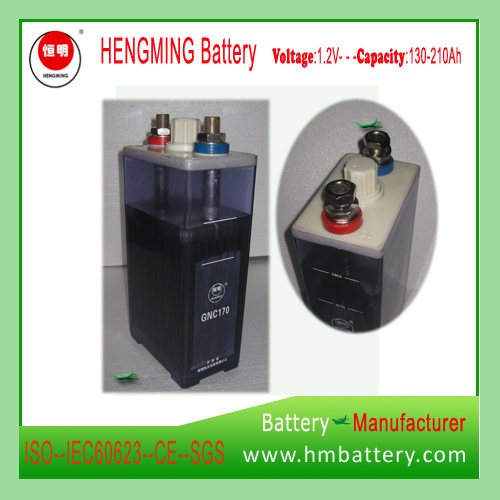

Pocket Type Ni-CD Industrial Battery Gnc170 for Engine Starting

Prod Model:	GNC170
Certificate:	IEC60623/ISO9001/14001/18001/Ce
Exceptionally Long Service Life:	More Than 20 Years
Type:	Ni-CD Battery
Usage:	Lighting
Nominal Voltage:	1.2V
Discharge Rate:	Ultrahigh Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

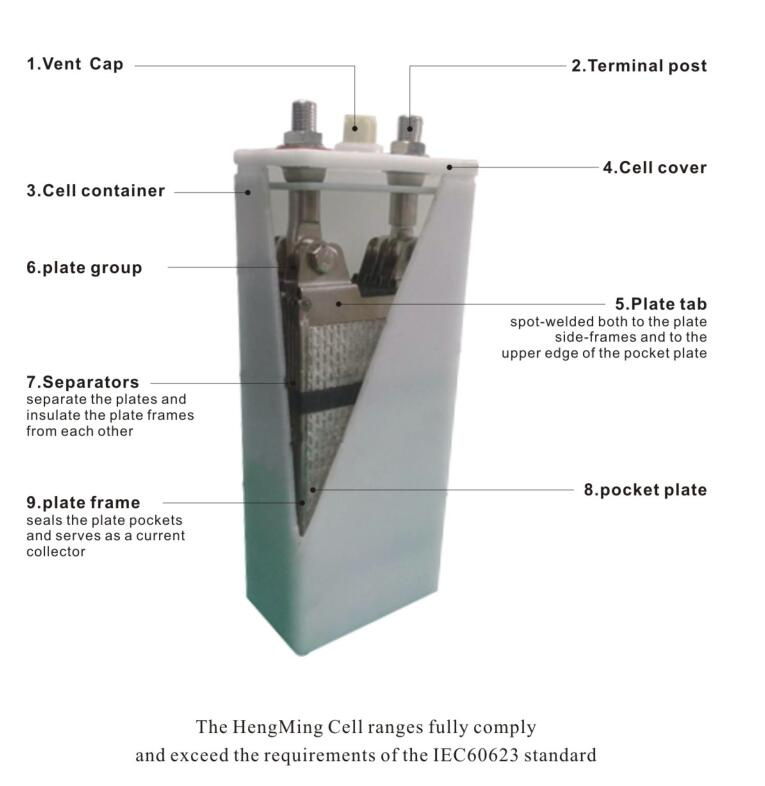

Cell construction

Description

1.Cell type:GNC170=KPX170 (Extra-high rate nickel cadmium battery)

2.Rated capacity:170AH

3.Nominal voltage:1.2V

4.Container material :ABS/PP

5.Delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)

Cell Capacity and Dimensions

KPX=GNC(Ultra High Rate Type)                Sintered----Sintered
Cell Type	Nominal  Voltage (V)	Rated Capacity (Ah)	Dimension(mm)			Thread of pole	Weight  (filled)  (Kg)	Electrolyte  Volume  (L)	Container Material
			L	W	H
GNC5	1.2	5	81	26	163	M8	0.51	0.05	ABS
GNC10	1.2	10	81	26	163	M8	0.62	0.06	ABS
GNC10-(2)	1.2	10	81	34	245	M10	1.1	0.13	ABS
GNC20	1.2	20	81	34	245	M10	1.25	0.12	ABS
GNC20-(2)	1.2	20	138	61	266	M10	2.8	0.5	ABS/PP
GNC20-(3)	1.2	20	81	43	266	M10	1.7	0.2	ABS/PP
GNC30	1.2	30	81	43	266	M10	1.75	0.2	ABS/PP
GNC30-(2)	1.2	30	138	61	266	M10	3	0.5	ABS/PP
GNC40	1.2	40	81	43	266	M10	1.85	0.2	ABS/PP
GNC40-(2)	1.2	40	80	35	235	M10	1.5	0.16	Nylon
GNC40-(3)	1.2	40	138	61	266	M10	3.3	0.5	ABS/PP
GNC40-(4)	1.2	40	100	85	138	M10	1.6	0.2	ABS
GNC50	1.2	50	81	50	266	M10	2.14	0.25	ABS
GNC50-(2)	1.2	50	138	61	266	M16	3.5	0.5	ABS/PP
GNC60	1.2	60	81	50	266	M10	2.2	0.24	ABS
GNC60-(2)	1.2	60	138	61	266	M16	3.8	0.5	ABS/PP
GNC70	1.2	70	138	61	266	M16	4	0.4	ABS/PP
GNC80	1.2	80	138	61	266	M16	4.2	0.4	ABS/PP
GNC80-(2)	1.2	80	86	86	276	M10	3.6	0.45	PP
GNC80-(3)	1.2	80	86	86	305	M10	3.8	0.6	PP
GNC90	1.2	90	138	61	266	M16	4.3	0.4	ABS/PP
GNC100	1.2	100	138	61	266	M16	4.3	0.4	ABS/PP
GNC100-(2)	1.2	100	148	78	196	M16	4.3	0.25	ABS
GNC100-(3)	1.2	100	139	79	295	M16	5.5	1.4	ABS
GNC110	1.2	110	138	61	266	M16	4.5	0.4	ABS/PP
GNC110-(2)	1.2	110	139	79	295	M16	5.5	1.4	ABS
GNC120	1.2	120	138	61	266	M16	4.6	0.35	ABS/PP
GNC120-(2)	1.2	120	139	79	295	M16	5.5	1.4	ABS
GNC130	1.2	130	139	79	295	M16	5.6	1.4	ABS
GNC140	1.2	140	165	105	350	M20	9.5	1.9	ABS/PP
GNC140-(2)	1.2	140	139	79	362	M16	9	1.7	ABS/PP
GNC140-(3)	1.2	140	139	79	295	M16	6	1.3	ABS
GNC150	1.2	150	165	105	350	M20	9.5	1.8	ABS/PP
GNC150-(2)	1.2	150	139	79	362	M16	9.3	1.6	ABS/PP
GNC150-(3)	1.2	150	139	79	295	M16	6	1.2	ABS
GNC160	1.2	160	165	105	350	M20	9.5	1.75	ABS/PP
GNC160-(2)	1.2	160	139	79	362	M16	9.5	1.6	ABS/PP
GNC160-(3)	1.2	160	139	79	295	M16	6.5	1.5	ABS
GNC170	1.2	170	165	105	350	M20	9.5	1.7	ABS/PP
GNC170-(2)	1.2	170	139	79	295	M16	6.7	1.5	ABS
GNC170-(3)	1.2	170	139	79	362	M16	9.5	1.6	ABS/PP
GNC190	1.2	190	165	105	350	M20	9.9	1.7	ABS/PP
GNC210	1.2	210	165	105	350	M20	10.5	1.6	ABS/PP
GNC230	1.2	230	167	162	343	M16	13	2.8	ABS/PP
GNC230-(2)	1.2	230	146	128	363	M20	10	3	ABS
GNC250	1.2	250	167	162	343	M16	13	2.6	ABS/PP
GNC250-(2)	1.2	250	146	128	363	M20	10	3	ABS

Cycle life
One cycle means a cell is fully charged and discharged. The cell's cycle life should not be less than 900 cycle. According to the applicable IEC standard,it shoud be 500 cycles at least. in case of float charge application,its cycl life may be longer.

Advantage of hmbattery
1.Having packing room,welding room,assembling room,heating room,production room etc

2.Wide operating temperature range from -25 °C to 45°C

3.Long service life more than 20 years

4.Excellent charging efficiency and smooth discharge voltage

5.High resistance to mechanical and electrical abuse

6.Plastic maerial is produced by our own factory

7.Low maintenance cost and replacement cost.

8.Excellent sales man and engineers

9.Fastest delivery time

10.30 years Ni-Cd manufacture experience

12.Top three sales in China NiCd battery field

Application

Nickel-cadmium pocket plate batteries are available in three different plate designs optiized with regard to the required discharge(back up ) time. these categories are:

 High Rate(KPH)              for discharge periods of less than 60 minutes

 Medium Rate(KPM)          for discharge periods of more than 60 minutes

 Low Rate(KPL)               for discharge periods of more than 120 minutes

These cell ranges do perfectly satisfy the requirements of a really wide variety of different applications.

 1.High rate batteries

 Typical high rate applications are,among others:

 Electro Magnets

 Engine Starting

 Switchgears

 Uninterruptible power supply (UPS)

2. Medium rate batteries

 Typical medium rate applications are,among others:

 Electric Train Control

 Process Control

 Turbine Starting

 3.Low Rate Batteries

 Typical medium rate applications are,among others:

 Alarms

 Railway Signalling

 Telecommunications

Company Information

Henan Hengming Fengyun Power Souce Co.,Ltd is professional ni-cd railway storage batteries manufacturer in China and have been in this line for 30 years.
our products have been exported to more than 20 countries, which performance is better and widely used for DC power, back-up power of railway, railway signaling, UPS, boat, Solar home application, boat, engine starting, etc
Hengming have attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / CE/ IEC.

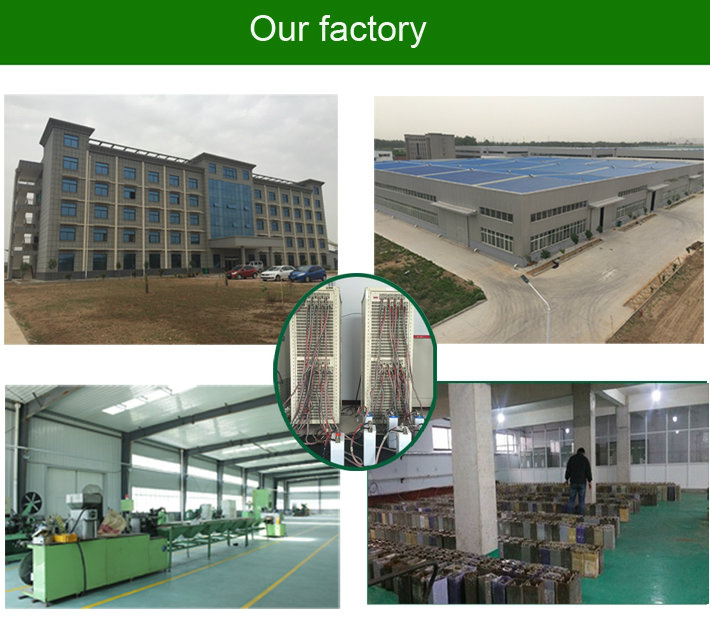

We built a new factory to expand our business.
Welcome to visit our new factory.



Packing and Shipping

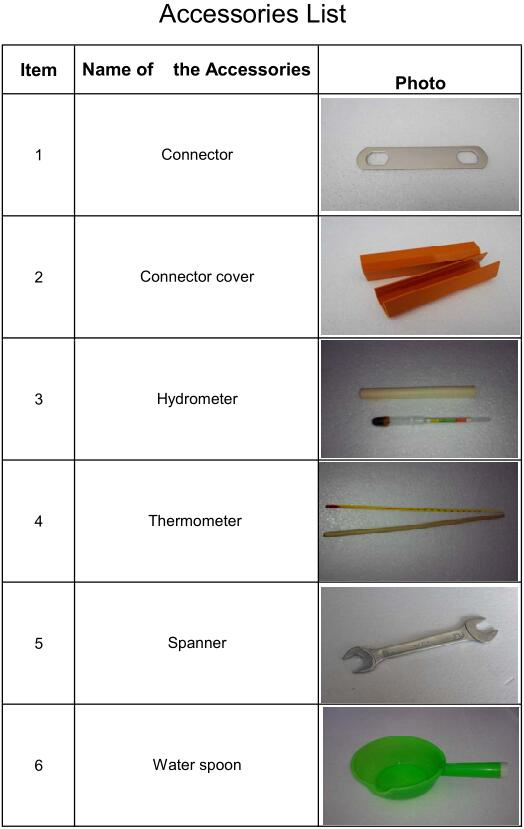

The battery will be packed by polywood case. Electrolyte powder or wet electrolyte will be sent with accessories.



Certification
