POF Multimedia Socket

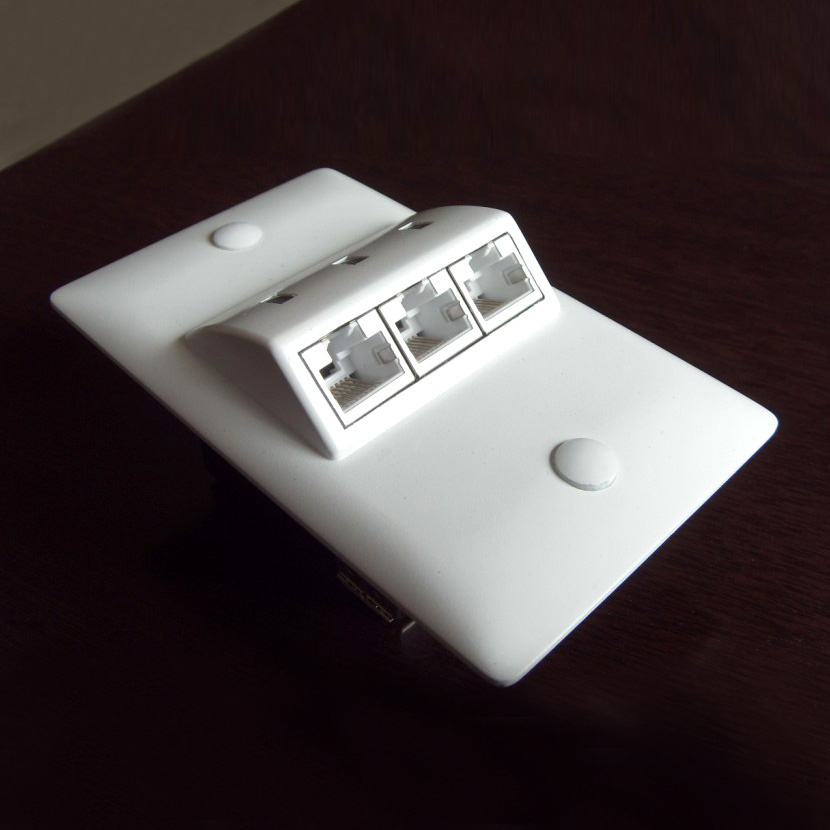

Name: POF Multimedia Socket
Brand: all-electronics-online.com
SKU: 688616565
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	Negotiable
Trade Terms:	CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Western Europe
Support Network:	Switch
Type:	Wired
Usage:	Telephone, IPTV, Internet

Product Description

Active POF Wall Plate, also called POF Multimedia Socket, is a Flush-mounted Switch which is small and easy to install. It is the top choice for retrofitting existing network and Triple-play applications, which is widely used in EU and North America. Due to its total optical working environment, it does less harm to human kinds, making life easy and safe.

Features:
1. With 3 100Mbps RJ-45 ports, ensuring the QOS of different data;
2. LED indicates application status of each RJ-45 port
3. Integrated a high-performance fast Ethernet Integration system inside
4. Energy saving, with a high-performance power system inside, rated power is 3W only
5. One POF Opt-Lock port
6. Packets can be used at maximum by VLAN ID Tagging.
7. Less electromagnetic radiation
8. Easy installation

Technical Parameters:
Model	HY-1078
Standards	Meet IEEE 802.3u Fast Ethernet
Standards	Meet IEEE 802.3x Full-duplex Mode Flow Control
Wavelength	650nm
Transmission Rate	100Mbps
Transmission Distance	POF ≤ 80m
Input Interface	POF Opt-Lock® interface (100Mbps)
Output Interface	3 RJ45 (100Mbps) Ports
Transmission Media	Φ 2.2 POF Duplex Cable
Input Voltage	100V~240V AC
Rated Power	3 Watts
Operating Temperature	0 Celsius ~ 50 Celsius
Storage Temperature	-20 Celsius ~ 70 Celsius
Operating Humidity	10%~90% (Non-condensation Condition)
Storage Humidity	10%~90% (Non-condensation Condition)
Applications	FTTH & LAN Reconstruction of existing network

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
