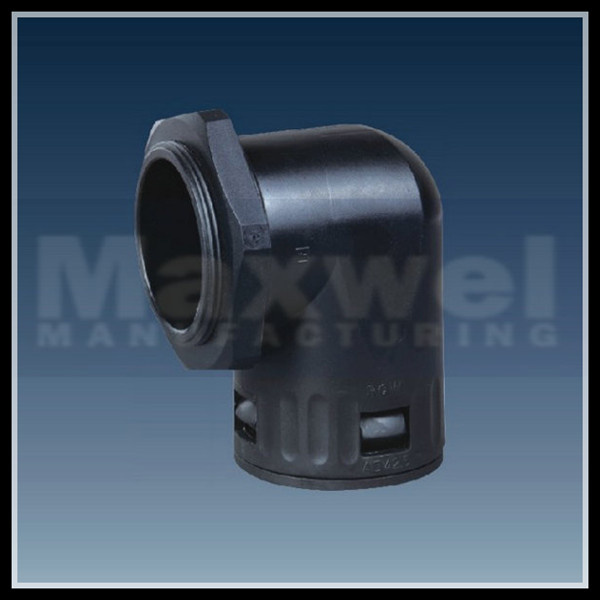

Polyamide Elbow Screw Connector (BCW1)

Name: Polyamide Elbow Screw Connector (BCW1)
Brand: all-electronics-online.com
SKU: 738934605
Availability: InStock
Rating: 4.6 (49 reviews)

Price:	US $ 0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BCW1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Polyamide
Model:	M10-M63
Color:	Black
Protection Degree:	IP65
Application:	Power
Gender:	Screw

Product Description

Elbow screw connector

Material: Polyamide
Temperature Range: Min-40° C, max105° C, short-term 150° C
Protection degree: IP65
Flame-retardant: Self-extinguishing, free of halogen/ phosphor and cadmium

Metric Thread		PG Thread		Fits to tubing size	Color
Item No.	Thread Dimension	Item.	Thread Dimension	Fits to tubing size	Color
BCW1-M10	M10 x 1.0	BCW1 -PG7	PG7	Φ7	black
BCW1 -M12	M12 x 1.5	BCW1 -PG9	PG9	Φ10
BCW1 -M16	M16 x 1.5	BCW1 -PG11	PG11	Φ12
BCW1 -M20	M20 x 1.5	BCW1 -PG13	PG13.5	Φ14
BCW1 -M25	M25 x 1.5	BCW1 -PG16	PG16	Φ17
BCW1 -M32	M32 x 1.5	BCW1 -PG21	PG21	Φ25
BCW1 -M40	M40 x 1.5	BCW1 -PG29	PG29	Φ29
BCW1 -M50	M50 x 1.5	BCW1 -PG36	PG36	Φ36
BCW1 -M63	M63 x 1.5	BCW1 -PG48	PG48	Φ48
