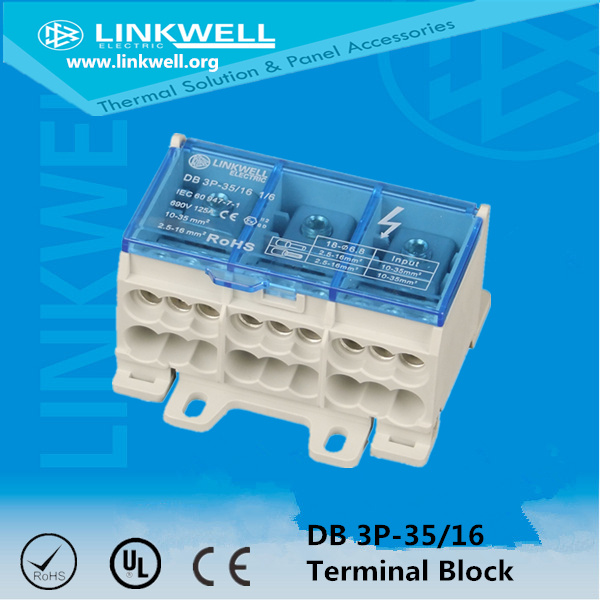

Polyamide UL 94V-0 Terminal Block with Blue Cover

Name: Polyamide UL 94V-0 Terminal Block with Blue Cover
Brand: all-electronics-online.com
SKU: 788005195
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DP3P-35/16 1/6
Certificate:	Ce RoHS
Inflammability:	UL 94 V0
Input Conductor:	3*1
Output Conductor:	3*6
Torque:	3
Application:	Communication
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Linkwell

Product Description

DB power distribution blocks

Features:
1) small and compact
2) IP20 protection degree
3) modular design, enable 3 phase modules
4) easy to use and combine
5) Installation:clip on NS35 DIN rail, or mount to panel sheet by screws
7) with short-circuit protection

New types of distribution terminal boxes, with exquisite handicraft, high conductivity ratio upto 95%.
High qualtity Polyamide with temperature resistant and low flammablity UL94 V0. It is easy for viewing and inspection of the contact and wires.

Specification:

Model	DP3P-35/16 1/6DP3P-35/16 1/6
Dimension(mm) (NS35)	75.5	85	50
Max. current	125A
Standard	IEC60947-7-1
Input cable cross section	3*1		10-35mm2
Output cable	3*6	2.5...16mm2
UL flammability rate	UL94 V-0

We are mainly dealing with low voltage electrical products for switchgear board and automation industry, such as panel filter and fan, panel heater, thermostat and hygrostat for panel, flexible busbar, terminal block, DIN rail, wiring duct, etc. We are aiming to provide one- stop-solution for panel builder.

Now we are mainly exporting to European countries and Middle East Area, our products now are being well sold to more than 60countries all over the world and we enjoy very good reputation in the market for the sake of our good quality and competitive prices, kind and prompt services to clients.

LINKWELL ELECTRIC policy is to offer a full support to Clients:

- pre-after sales assistance

- customized products

- fast delivery

- monitoring of customers' satisfaction

Rather than a supplier, LINKWELL ELECTRIC aims to be a Client's industrial PARTNER!

Our company always pays special attention to protecting the benefits of clients' so that both the clients and our company are able to gain the maximum benefits from the relations between us.

We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future!
