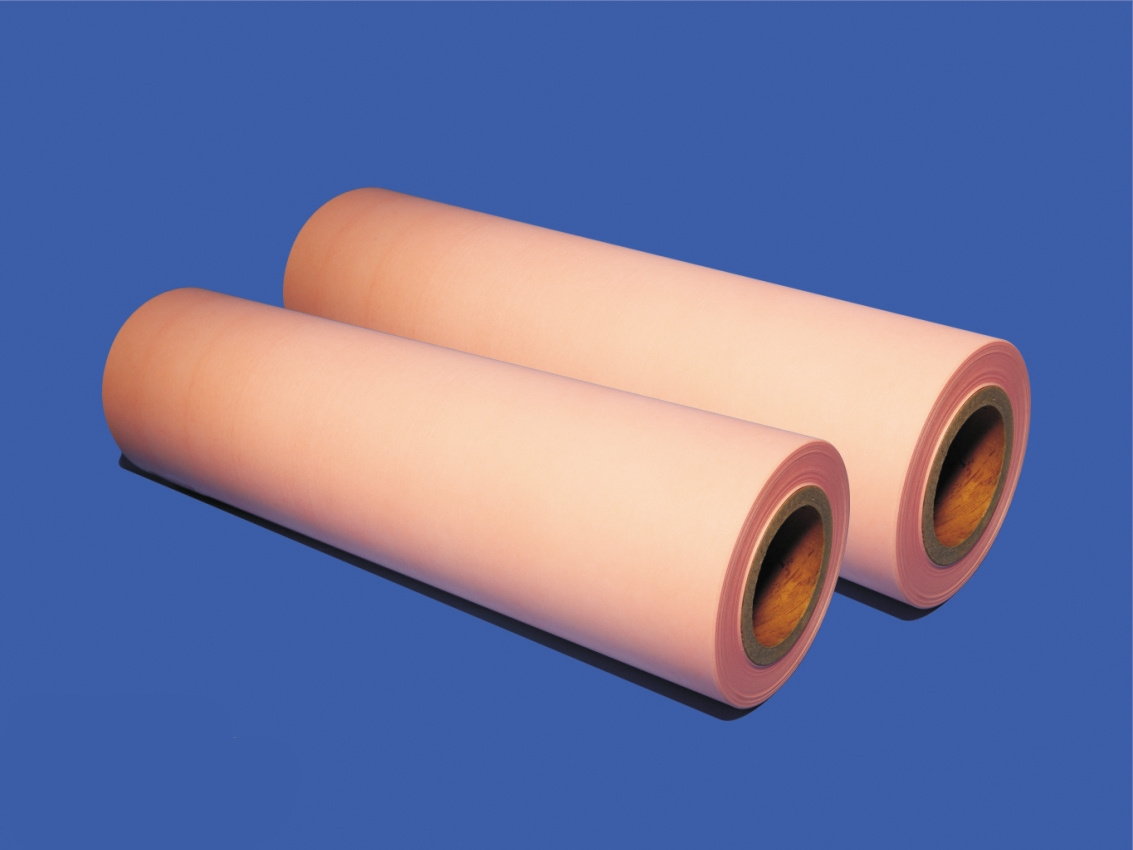

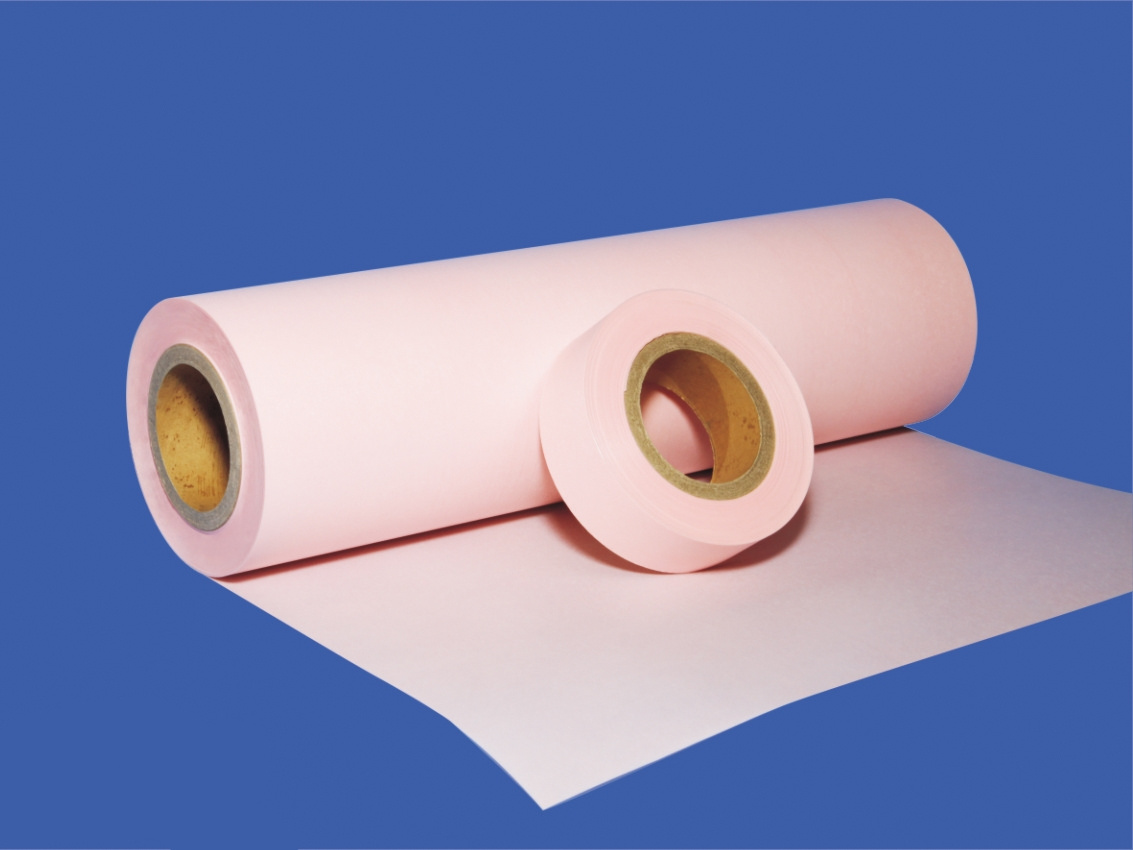

Polyester Film Polyester Nonwoven Laminates DMD

Prod Model:	6641, DMD
Colors:	Pink, Blue, Green
Application:	Electrical Winding Insulation
Type:	Solid
Chemistry:	Hybrid Insulation
Thermal Rating:	F 155
Maximum Voltage:	20KV~100KV
Material:	Nonwoven Fabric/Polyester Film
Certification:	ISO14001, Ohsas18001, ISO10012, Cnas
Brand:	Dongfang

Product Description

Polyester film/polyester nonwoven flexible laminate (Class F DMD) is a three-layer flexible
laminate made of high melting-point polyester film and excellent hot-rolling polyester non-woven fabric.
Each side of the polyester film (M) is bounded by one layer of polyester nonwoven fabric (D) with Class F adhesive. It has excellent thermal resistance, electrical, mechanical and impregnated properties. It is suitable for slot insulation, interphase insulation and liner insulation in Class F electric motors. This product has obtained UL and SGS certificate. It passed the thermal ageing routine test fulfilled by Quality Supervision and Testing Center of China machinery industry for Electromechanical Materials. The temperature index is recognized as class F (155ºC) by Shanghai Electrical Equipment Testing Institute.
1 Technical requirements
1.1 Appearance requirement should accord with stipulations of Part I: Definition & General  Requirement, Electrical Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).
1.2 Dimension:
Nominal width:1000 mm.
Nominal weight: 50+/-5kg /Roll.
The splices shall not be more than 3 in a roll.
1.3 Performance requirements: The standard values for 6641 are shown in Table 1 and relevant typical values shown in
Table 2.
2 Test method
As per the stipulations in Part II: Test Method, Electrical Insulating Flexible Laminates, GB/T 5591.2-2002
(MOD with IEC60626-2: 1995).
Testing for thermal resistance shall be as per the relative stipulations in JB3730-1999.
3 Packing, transportation and Storage
3.1 6641 is supplied in rolls, sheet or tape and packed in cartons or/and pallets
3.2 6641 should be stored in clean & dry warehouse with temperature below 40ºC. Keep away from fire, heat and direct
sunshine.
3.3 The other requirements shall accord with the stipulations in Part I: Definition & General Requirement , Electrical
Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).
4 Application & Remarks
6641 F-DMD has such advantages: lower price, excellent flexibility, high mechanical & electrical properties,
convenient application. It has also good compatibility with many kinds of impregnating varnish, especially with 1040,
D026 impregnating varnish produced by Dongfang.

Polyester Film/Polyester Non-Woven Fabric
Flexible Laminate (DMD)

Properties			Unit	0.15 mm	0.18 mm	0.20 mm	0.23 mm	0.25 mm	0.30 mm	0.35 mm	Test Method
Grammage			g/m 2	150	190	225	260	290	355	420	GB/T 5591.2-2002
Tensile Strength	MD	Not folded	N/10mm	90	125	153	170	200	260	310
		After folded		85	125	152	170	195	260	310
	TD	Not folded		85	115	162	190	220	282	340
		After folded		80	115	160	190	220	282	340
Breakdown Voltage			KV	8	10	13	14	15	19	25
Thermal Resistance				B
Storage Life				12 months, below 40degree
Standard applied				JB 4060-1991
Character and Applications				This products is made of 0.05mm nonwoven, it has good stiffness, excellent electrical insulation properties, thermal resistance, mechanical strength and impregnated properties.This product has obtained UL(UL No.:E32456) certificate and passed the quality test fulfilled by Electric Material Quality Supervision and Testing Center of China machinery industry and SGS test, according with the RoHS requirement. It is used for slot insulation, liner insulation and interturn insulation in electric motors and electric appliances.
Application & Remarks				When slit and use, edge's crack, surface's scratch, oil stain and dust contamination shall be avoided.

Besides DMD, we also make Prepreg. of DMD, DM, DMDM and multilayer DMD.
