Wuxi Xingxiao Hi-Tech Material Co., Ltd.
Wuxi Xingxiao Hi-Tech Material Co., Ltd. >> Polyester Film Roll Electrical Insulating Materials Composite Coating 0.9mm Thickness

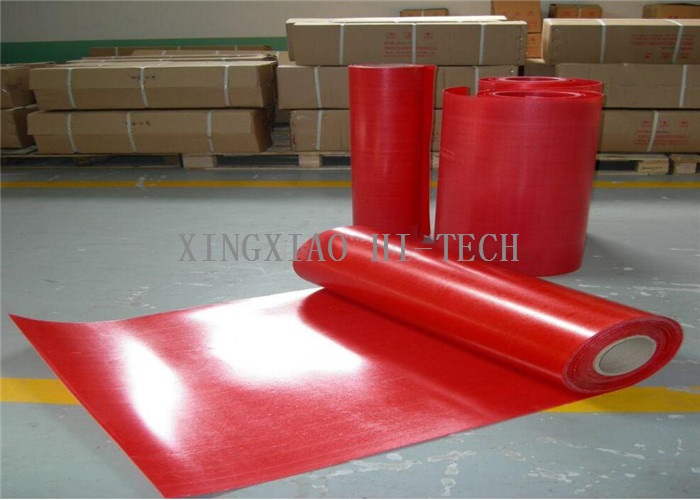

Polyester Film Roll Electrical Insulating Materials Composite Coating 0.9mm Thickness

Polyester Film Roll Electrical Insulating Materials Composite Coating 0.9mm Thickness
Price: US $ 3.5kg
Min Order: 100kg
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Application: Electrical Winding Insulation
Type: Insulation Film
Thermal Rating: F 155

Product Description

0.9mm Thick Electrical Insulation Material Composite Coaming of Polyester Film



Description& Application:



Electrical insulation composite coaming is polyester thin film coated with heat resistant adhesive and polyester fiber non-woven multilayer compound and into, and then by the composite special resin surface treatment; has good mechanical properties, electrical properties, shrinkage of the low, low hygroscopicity and reliable heat resistance, mainly used for dry type transformer high voltage coil, can replace the epoxy resin plate, phenolic resin plate cylinder as the insulating cylinder or end insulation .



Note: The products recommended width of 780 mm, 880 mm, 1040 mm, 1240 mm; can also be customized according to

customer requirements.



Features:



1. have good electrical performance

2. have low shrinkage and hygroscopicity

3. have heat resistance



Technical Data:


NoPropertyUnitValue
1Thicknessmm0.9
2Tensile StrengthN/cm≥600
3Elongation%≥50
4Breakdown Strength%≥35,≥30(bending)



Storage:



Product should be stored in dry, ventilated and clean environment at room temperature should be kept erect, not near the fire,

heat or by sunlight.

Storage period of 12 months; over the storage period can still be used after passing inspection.

About Xingxiao:

Wuxi XingXiao Hi-tech Material Co., Ltd is located in Jiangsu Wuxi. It is close to Shanghai and Nanjing, which is very convenient for customers to come here. Our company was founded in 2010, one of the suppliers in China to produce fiberglass fabric , fireproof coated fiberglass fabric, fireproof & insulation thread, rope ,sleeve, fireproof blanket & suit, and detachable non-metallic connector and cover.

Our Services

1. Your inquiry related to our products or prices will be replied within 24 hours

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. All our products have 1-year warranties.

4. Offering the support to solve the problem in the application or selling period.

5. Competitive prices based on same quality.

6. Guarantee samples quality same as mass production quality.



Our advantage



1. Professional Insulation products suppliers

2. 100% QC inspection before shipment

3. Best quality and Best service with competitive price.

Wuxi Xingxiao Hi-tech Material Co., Ltd is located in Wuxi which by beautiful Taihu lake, it is the famous tourist site and one of Chinese 15 economic centers. It is only 120 km far from Shanghai while 180 km from Nanjing, so its transport is very convenient.

We established our head office in Wuxi New District and founded our factory in Dongfangqiao Industry Park of Wuxi Xishan District, which mainly produces fireproof and heat insulation fiber, and special-type textile with deep process.

Our company is mainly engaged on producing "special-type fiberglass cloth /yarn, fireproof and heat resist fiber, special-type textile" and such kind of deep-processing textile. We are the earlier ones who systematically explore, develop and produce special type fiberglass products and special type textiles, and in this field, we are the professional producer with most sorts and biggest measurement within our country. Its serial products have passed the examination of international safety and healthy prove, national fire-examine center prove, and its related products have got or nearly got international standard, the brand of "Xing-xiao" has noted both abroad and within our country.

Our company adopts advanced equipment and produces various types of product which greatly benefit our developing high-technology and high-quality product. Our products are popular in Chinese market and many of them are exported to U. S., European countries, Southeast Asian countries and so on.

With the intimate cooperation of the staff, advanced technology and scientific management, we are willing to provide the best and most effective service for our customers under the tenet of "cordiality foremost".
