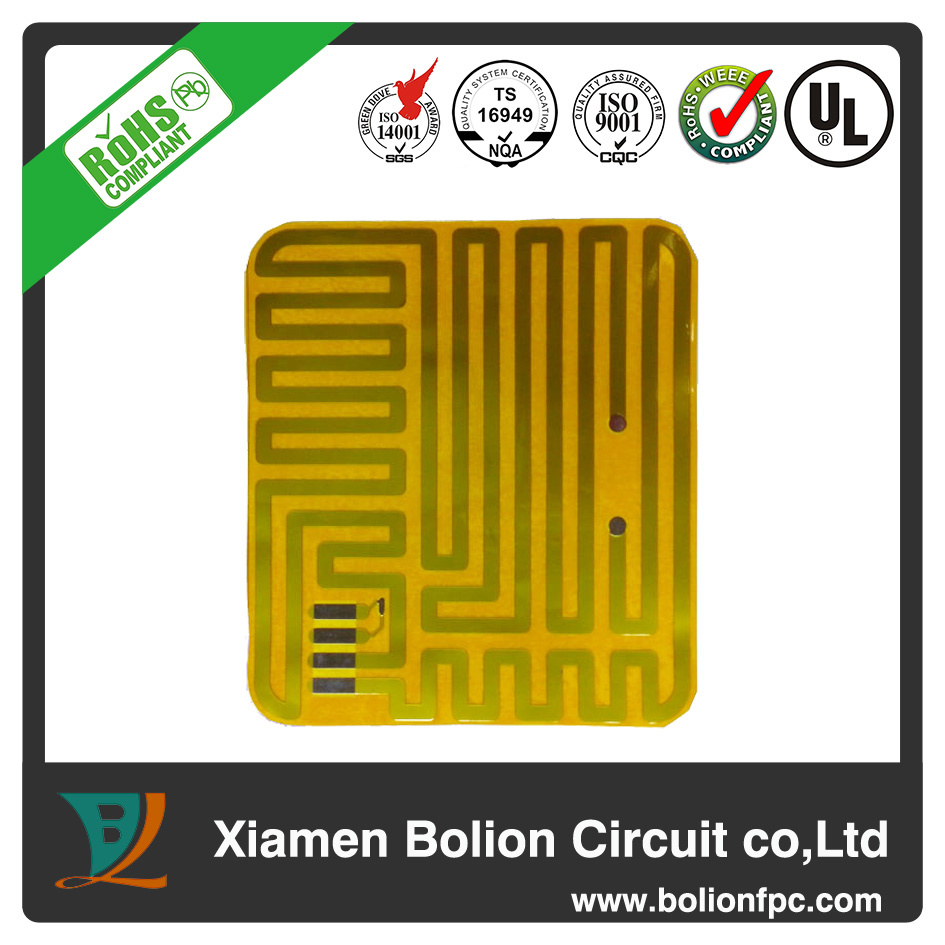

Polyimide Heater

Name: Polyimide Heater
Brand: all-electronics-online.com
SKU: 725365825
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 4.75-5.478piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S10609
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Enig
Layers:	1
Cover Layers:	Adh25um/Pi25um
Other Material:	25umpi 3m467
Dimensions:	78.04X89.05mm
Line Impedance:	3.6 Ohms± 10%
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste
Structure:	Heater

Product Description

Kapton is a clear, amber colored polyimide film. The process for making Kapton heaters is similar to that of Etched Foil Silicone heaters. The desired circuit pattern is etched onto the bottom layer of Kapton then another layer of Kapton is added to the top to complete the heater. The result is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -300°F (-185°C) and 392°F (200C).

Primary Features:

High tensile strength
Low outgassing
Excellent dimensional stability
Thin, lightweight profile
High watt densities
Transparent material

Kapton Heaters can easily be designed to accommodate a variety of components such as thermostats, thermal fuses, thermocouples, thermistors, RTDs, or specialty wiring harnesses. Typical applications for Kapton heaters include medical diagnostic instruments, LCDs, analytic test equipment and military equipment.

thermo's Kapton heaters have been safety tested and approved, and they are UL recognized under the UL file number E228871.

Kapton is a registered trademark of E.I. du Pont Nemours and Company.

Main Technique Index
Description	Parameters
Description	Polyimide	Polyester
Base film Thickness (um)	12.5,25,35,50	12.5,25,35,50
Copper Thickness (um)	12,17.5,35,50,70,105
Min. Line Width/Line Space (mm)	0.075/0.075
Min. Hole Size (mm)	0.15
Tolerance (mm)	Outline:+/-0.05; Coverlay: +/-0.2
Peel Strength (kgf/cm)	Above 1.0	Above 0.8
Solder Resistance	260C 10 seconds	204C 5 seconds

Surface Treatment
Content	Normal coating thickness	Normal PNL size
Plating nickel gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating hard gold (In house)	Ni:2-9um;Au:0.1-1.0um	300mm×400 MM
Plating soft gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating pure tin (In house)	2.0-8.0um	300mm×400 MM
Immersion Tin (In house)	0.3-0.6um	300mm×400 MM
OSP (In house)	N/A	300mm×400 MM
ENIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENIG (Soft Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENEPIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
HASL (Outsource)	Cover the pads with min thickness 1~2 um	300mm×400 MM
Immersion silver (Outsource)	Per standand creteria	300mm×400 MM

Xiamen Bolion Ciruit Co., Ltd is an expert manufacturer that specializes in flexible Circuit boards & Rigid-Flex PCB based in China since 2003.

All of our facilities are ISO 9001, ISO 13485(Medical decices), ISO 14001, TS 16949(Automotive) RoHS, and UL(E228871) certified. This investment into equipment and training has transformed Bolion into a global supplier of Ultra-High Quality flexible and rigid-flex boards.

The key markets we serve are primary located in North America and Europe include Top 500 companies in the Medical, Automotive, Wearable, and CM/EMS industries.

Bolion Tech major in High-mix Low volume production, provide quality, cost-effective solution, on time for our customers.

Quick lead-times:

-Single layer Flex: 2~5 days

-Double layer Flex: 2~5 days

-Multi-layer Flex(Max. 12 layers): 4~8 days

-Rigid Flex: 5~8 days

Bolion's commitment to you is that we will strive to become a full member of your engineering and manufacturing team focused on delivering you high quality products and service, on time, while achieving your stated technical and cost goals.

Bolion Business extends: With more than 13 years developing, Bolion now add in house SMT line, devoted to provide one-step service for our customers.

If you are interested in finding an FPC/Rigid-Flex PCB and SMT supplier in China, please freely contact us, I do believe Bolion will be your good choice.
