| Prod Model: |
FPQ-36/12.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
L&R or as Per Clients' Requirements |
| Size: |
Any Size Can Be Ordered |
| OEM&ODM: |
Accept |
| Application: |
Low-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
B Type Insulator |
| Size Of Bearing Capacity: |
12.5 |
| Color: |
Gray |
| Brand: |
L&R |
Product Description
Basic Info.
Model NO.:FPQ-36/12.5
Application:High-voltage
Material:Composite Polymer
Structure:Suspension Insulator
Type:B Type Insulator
Usage:High Voltage Power Transmission
Connection Method:Trough Type
Size of Bearing Capacity:70KN
Certification:ISO9001, Cnas,Cnal
Color:Grey
Packing:Carton or Plywood Case
product

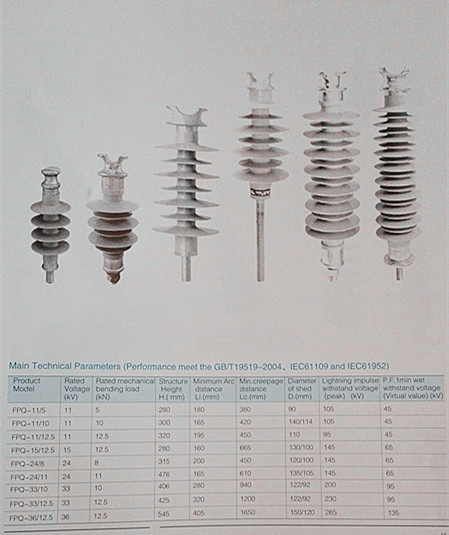

model | rated voltage(kv) | rated mechanical bending load(KN) | structure height H (mm) | minimum arc distance Li.(mm) | min. creepage distance Lc.(mm | diameter of shed D.(mm) | lightning impulse withstand voltage (peak) (kv) | P.F. 1 min wet withstand voltage (virtual value) (kv) |
| FPQ-11/5 | 11 | 5 | 280 | 180 | 380 | 90 | 105 | 45 |
| FPQ-11/10 | 11 | 10 | 300 | 165 | 420 | 140/114 | 105 | 45 |
| FPQ-11/12.5 | 11 | 12.5 | 320 | 195 | 450 | 110 | 95 | 45 |
| FPQ-15/12.5 | 15 | 12.5 | 280 | 160 | 665 | 130/100 | 145 | 65 |
| FPQ-24/8 | 24 | 8 | 315 | 200 | 450 | 120/100 | 145 | 65 |
| FPQ-24/11 | 24 | 11 | 476 | 165 | 610 | 135/105 | 145 | 65 |
| FPQ-33/10 | 33 | 10 | 406 | 280 | 940 | 122/92 | 200 | 95 |
| FPQ-33/12.5 | 33 | 12.5 | 425 | 320 | 1200 | 122/92 | 230 | 95 |
| FPQ-36/12.5 | 36 | 12.5 | 545 | 405 | 1650 | 150/120 | 265 | 135 |
Features:Secure and reliable operation on high mechanical strength.Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.Good electric performancesStrong anti-pollution falshover ability.High anti-aging performances which is perfect for utilization under conditions of high altitude.Easy for maintenance.Product range:Long rod polymer insulator up to 500kV.Polymer pin insulator up to 36kV.Polymer post insulator up to 252kV.Line post insulator up to 36kV.
Our products have being in service on electrical networks of more than more than 20 countries from 2005.
We had supplied our products and services to the below customers:
CHINESE STATE GRID,KENYA KPLC & REA,UGANDA REA & UMEME,TANZANIA TANESCO,GHANA ECG,SOUTH AFRICA ESKOM & ARB,NIGERIAL NEPA,COTE D'IVOIRE CI-ENERGIES,JORDAN EDCO & NEPCO,OMAN PDO,VIETNAM EVN,MEXICO IUSA,ECUADOR CELEC,NEPAL NEA,
......….
Here, We look forward to your joining.

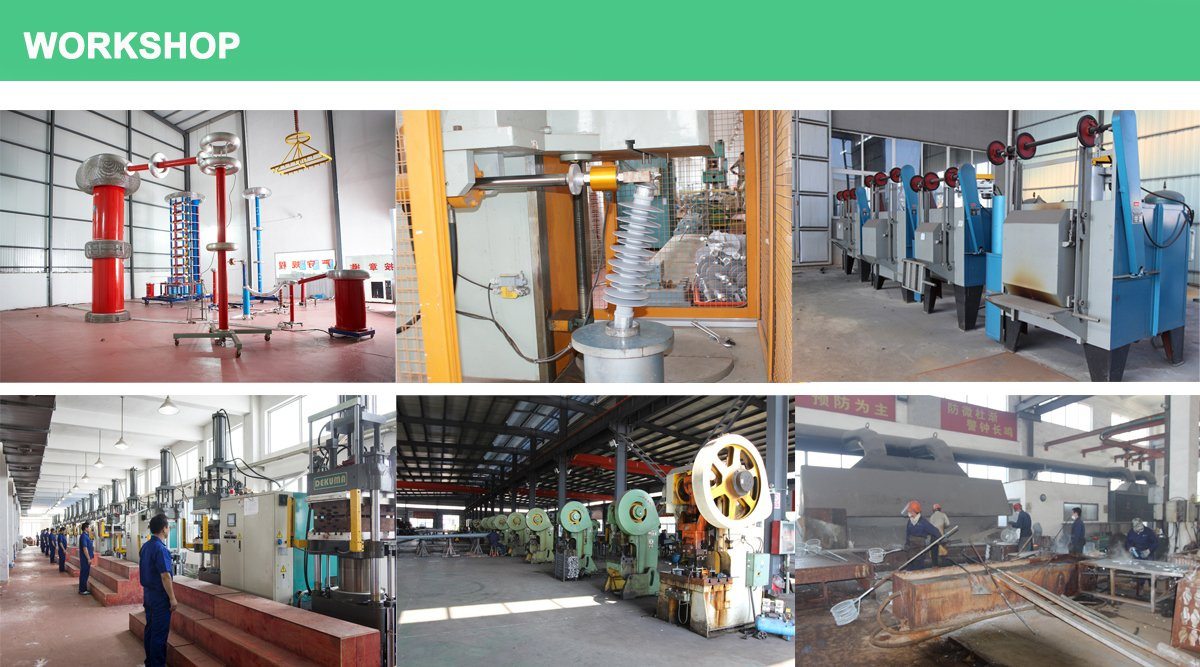

Our factory had obtained ISO9001, ISO14001, OHSAS 18001, and almost of our products had been tested by CNAS certificated Laboratory, for example KEMA, Chinese National Lab, and etc
What can we do for you?
1) Good quality guarantee (2 years).
2) Competitive Price (Factory direct price).
3) Agent service in all the world.
4) On time delivery .
5) We offer sample for free.
6) Professional Technology .
7) Quality Control through the whole Manufacturing process.
a. Check the material before the production .
b. Have the random inspection during the production .
c. Make the 100% inspection before the shipment
Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.
L&R has possessed one of the major suppliers in the power and electrical fields for electrical
Projects in the world. Almost all products manufactured by the L&R members have been certified
By KEMA, CE, SGS and CNAS approved Lab.
L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air
Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,
Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware
And so on. Our member companies are required to have a long term proven track record of meeting contract
Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.
Over a period of 10 years, our business has extended to South America, Middle East, Southeast
Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners
For our sale agent and maintenance company in all the worldwide.
