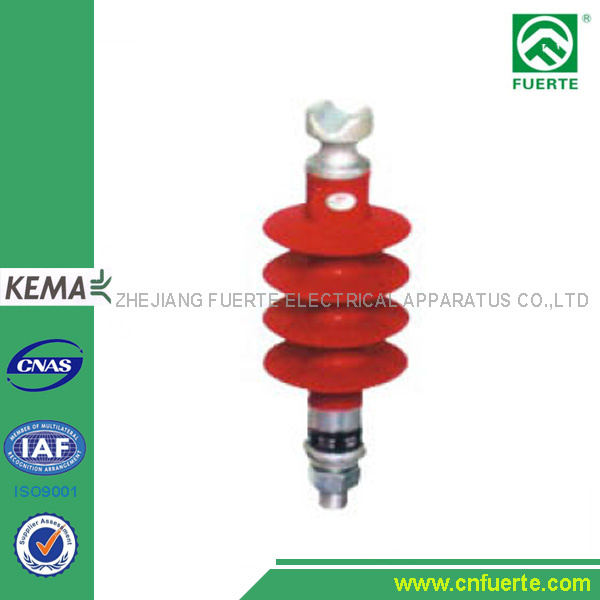

Polymer High Voltage Composite Pin Insulator
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FPQ-10/4t20 |
| Insulator Material: |
Composite Polymer |
| Creepage Distance: |
600mm |
| Bil Withstand Voltage: |
145kv |
| Power Frequency Withstand Voltage: |
Dry: 110kv; Wet: 95kv; |
| Dry Arcing Distance: |
No Less Than 240 mm ; 300mm |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Pin Insulator |
| Type: |
Pin Type |
| Color: |
Grey |
| Brand: |
Fuerte |
Product Description
High Voltage Composite Pin Insulator
Components:
Core rod: made of FRP rod or ECR rod
Sheds: made from high quality HTV silicone rubber, through high pressure injection moulding techniques to create a smooth surface
End fittings: various pin end fittings made of hot dip galvanized cast steel
Properties & Advantages(the reason to buy!):
1. superior bending and tensile strength
2. electric corrosion resistance
3. excellent corona resistance
4. high pollution resistance
5. superior hydrophobicity/anti-water performance
6. aging resistance
7. anti-leakage trace
8. anti-ipulse property
9. shaking-proof
10. Good brittleness-proof property
11. light weight, convenient installation.
Technical parameter:
FPQ-10/5T20 | Numerical value | Unit |
Rated voltage | 10 | KV |
Rated mechanical bending load(KN) | 5 | KN |
Structure Height H | 250 | mm |
Minimum creepage distance Power | 180 | mm |
insulating distance Li. | 380 | mm |
Diameter of shed D | 90 | mm |
Lightning impulse withstand voltage(peak) | 105 | Kv |
P.F frequency Wet withstand voltage(virtual value) | 42 | KV |
All the Spare parts are manufactured by our own.
The product quality garantee for 2 years.
Company introduction:
We'are manufacturer in Zhejiang Province of China for the High voltage electrical apparatus for over 20 years!
Our main products are :
- Fuse cutout
- Lightning arrester
- Insulator
- Disconnecting switch
- Electrical fitting parts
What we can do special for you:
- Samples are available for standard types.
- No minimum order qty for our products.
- Sales for spare parts are available.
- Design new types and customized according to your drawing.
- Good technical support after sale during the product in service.
- Factory developing each year for our customers.
3. Customized designs accepted.
4. Safe usage is No.1 .
ZHEJIANG FUERTE ELECTRICAL APPARATUS Co., Ltd...(former Wenzhou fuerte Electric Co., Ltd., Zhejiang Yueqing City People's Electric 3 Factory) was founded in 1985. Existing factory building area of 8700 square meters, is a Machinery Industry Ministry,
Ministry of Power Industry and the international integration of production generic "12KV ~38KV" line protection and transformer protection fuse a variety of voltage levels, surge arresters, isolation switch, vacuum circuit breakers, etc. Series of joint ventures. Precarious Twenty-four years, is V Stewart walked one after another through these difficult times. After V Stewart who tenaciously that, with perseverance to carry out independent innovation, the company to overcome difficulties one after another, various series of products have passed the ISO9001 quality system certification, in accordance with international electricity Work IEC291, 282, 644, 787, the State GB/T15166, 15166.2, the United States C37.41, and IEEE standards. And Power Transmission Equipment Industry Association China Branch of the members of high-voltage switching unit, the national standards GB/T15166.6-2008 involved in the drafting unit, the State Quality Supervision and Inspection Center of qualified enterprises, Zhejiang Province, product quality fixed excellence units, Zhejiang, China Construction Bank sub - OK AAA enterprise, Zhejiang Province, Wenzhou City, Yueqing municipal export large, foreign investment, star, key units, and so honor, in order to alleviate the severe employment situation Yueqing City, increasing foreign exchange reserves to make a significant contribution.
Since 2003, the company implemented ISO9001 quality management system certification through the Netherlands KEMA company since the company's chairman and general manager for the first time explicitly to the core leadership team, the detailed planning of a
Sales office at all levels, including at the provincial departments. We are in strict accordance with the requirements of ISO9001 quality management system, procurement, production, supply, service and development of new products and a series of work leading
To a high-quality products available to the community and at the same time with an open mind to their customers about product usage and to collect them opinion, in order to strive for excellence and achieve excellence and to lay a solid foundation for a variety of products annual production capacity of more than 100 million units. "The least bit of skill, achievement of a thousand miles-chi, " V Technology Corporation to
Abundant strength, leading technology, in place of service, reliable quality...All kinds ofseries of brand products in the domestic alternative to imported similar products occupied the commanding height of the market, product sold in the domestic 31 provinces,
Municipalities and autonomous regions. At the same time sold to the Philippines, South Korea, Iraq, South Africa, Argentina, Indonesia, Malaysia, Morocco, Nigeria, Saudi Arabia, Syria, Singapore, and Hong Kong, Taiwan and other countries and regions.
FSC series fuse projects more at the end of 2006 successfully passed the state-level Spark Program project acceptance; In 2007 the company developed a utility model Outdoor AC high voltage fuse jet access to national patents; That same year, my company
Developed a utility model outdoor high-voltage AC isolation switch access to national patents; Man Road Zhenru with big iron, and CHAMC!
V Stewart's achievements can only represent the past, and that the future work also requires our continued efforts to provide the community fine for the country to create wealth. Social progress, development of the times is the eternal theme of the face of increasing competitive pressure at home and abroad, V Stewart will join domestic and foreign merchants, to turn the tide upstream.
