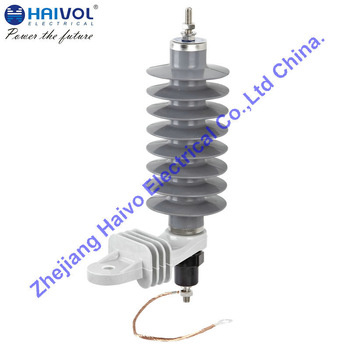

Polymer Housed Metal Oxide Lightning Arrester Without Gaps

Name: Polymer Housed Metal Oxide Lightning Arrester Without Gaps
Brand: all-electronics-online.com
SKU: 825743705
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH10W-30
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Color:	Grey
Brand:	Haivol

Product Description

Specifications
Polymer housed Metal oxide lightning arrester without gaps: lightweight, unbreakable, hydrophobic, resistant ozone UV radiations

Polymer housed Metal oxide lightning arresters without gaps
Application: For protecting rated voltage up to 220kV power transmission & distribution system from over-voltage.
Ratings: Up to 220kV.
Standards: IEC 60099-4
Features: Reliability and excellent protection based on years of experience and expertise in surge protection. Good anti-moisture capability, resistant to pollution. GIS metal oxide surge arrester, composite metal oxide lightning arresters and porcelain metal oxide lightning arresters are available. Long life and lightweight. Easy installation and maintenance. Good sealing capability to ensure reliable operation. High energy absorption ability.
Technical Specification:

Type	Rated voltage of arrester KV	Nominal voltage of system (virtual value)KV	Continuous operating voltage (virtual value)KV	Reference voltage not less than D.C (U1mA)KV	Max residual voltage(peak)			2000μs rectangular impulse current (peak value) A	4/10μs impulse current (peak value) KA	The max leakage current of 0.75DC refference voltageμA
Type	Rated voltage of arrester KV	Nominal voltage of system (virtual value)KV	Continuous operating voltage (virtual value)KV	Reference voltage not less than D.C (U1mA)KV	Steep current impulse KV	Lightning impulse current KV	Switching current impulse KV	2000μs rectangular impulse current (peak value) A	4/10μs impulse current (peak value) KA	The max leakage current of 0.75DC refference voltageμA
YH5WZ-42/143	42	35	23	73	154	134	114	150	65	50
YH5WZ-51/134	51	35	40.8	73	154	134	114
YH5WZ-52.7/134	52.7	35	40.8	73	154	134	114
YH5WZ-54/134	54	35	41	73	154	134	114
YH5WZ-75/134	75	66	60	123	248	215	183	400	65	50
YH5WZ-90/224	90	66	72.5	130	258	224	190	400	65	50
YH10W-75/250	75	66	60	127	288	250	213	600	100	50
YH10W-75/223	75	66	60	127	256	223	190
YH10W-75/230	90	66	60	127	265	230	196
YH10W-90/224	90	66	72.5	130	258	224	190
YH10W-90/232	90	66	72.5	130	266	232	198
YH10W-90/235	90	66	72.5	130	270	235	201

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

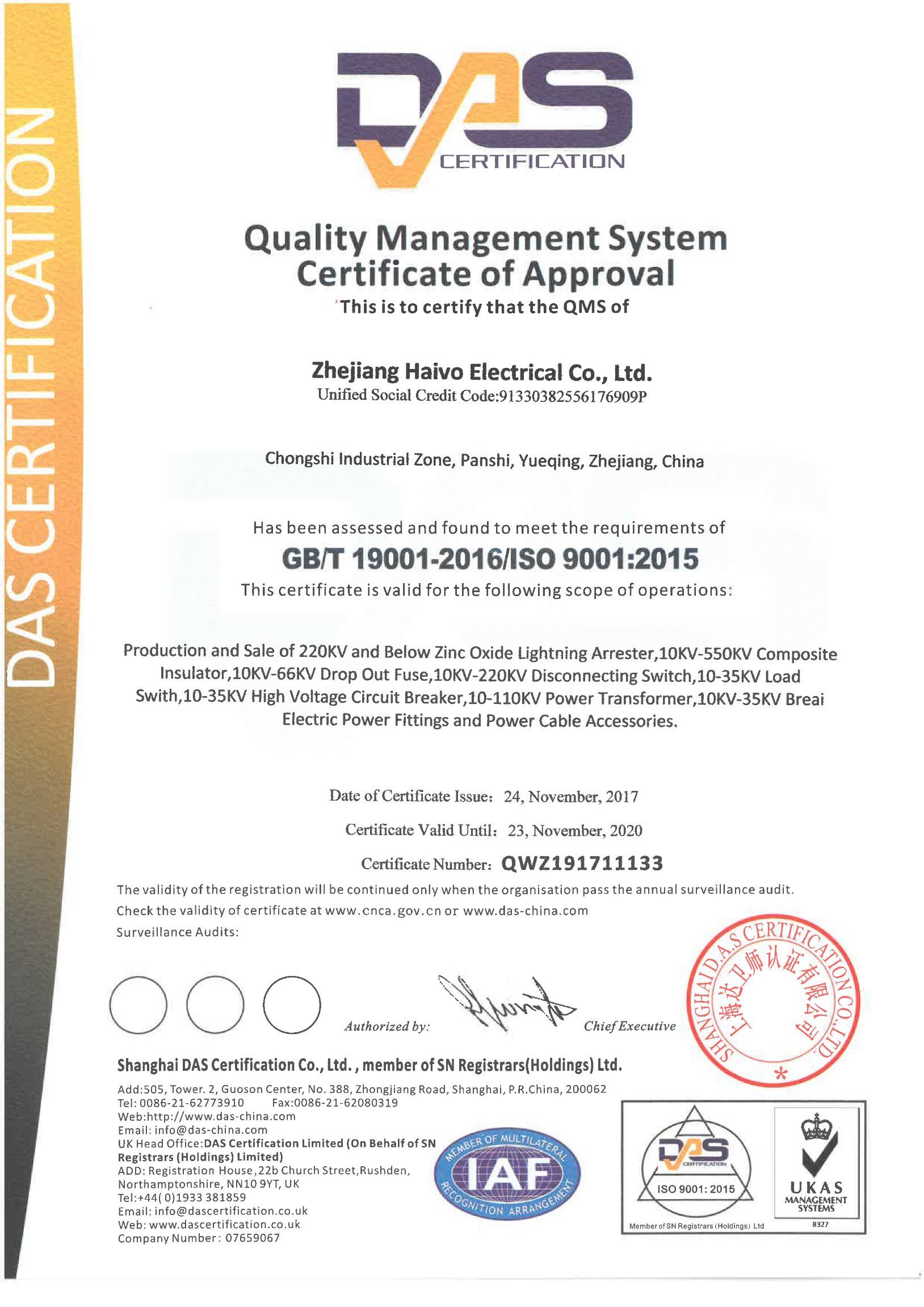

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
