Polymer Housed Metal Oxide Surge Arrestes Without Gaps

Name: Polymer Housed Metal Oxide Surge Arrestes Without Gaps
Brand: all-electronics-online.com
SKU: 825746115
Availability: InStock
Rating: 5 (116 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HAIVOL
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Color:	Grey
Brand:	Haivol

Product Description

Specifications
surge arrester :
lightweight, unbreakable, hydrophobic, resistant ozone UV radiations, resistant earthquake shocks.

Polymer housed Metal oxide surge arrestes without gaps
Application: For protecting rated voltage up to 220kV power transmission & distribution system from over-voltage.
Ratings: Up to 220kV.
Standards: IEC 60099-4
Features: Reliability and excellent protection based on years of experience and expertise in surge protection. Good anti-moisture capability, resistant to pollution. GIS metal oxide surge arrester, composite metal oxide surge arrester and porcelain metal oxide surge arresters are available. Long life and lightweight. Easy installation and maintenance. Good sealing capability to ensure reliable operation. High energy absorption ability.
Technical Specification:

Type	Rated voltage of arrester KV	Nominal voltage of system (virtual value)KV	Continuous operating voltage (virtual value)KV	Reference voltage not less than D.C (U1mA)KV	Max residual voltage(peak)			2000μs rectangular impulse current (peak value) A	4/10μs impulse current (peak value) KA	The max leakage current of 0.75DC refference voltageμA
YH5W-100/260	100	110	78	145	291	260	221	400	65	50
YH5W-102/266	102	110	79.6	148	297	266	226
YH5W-108/281	108	110	84	157	315	281	239
YH10W-100/260	100	110	78	145	291	260	221	600	100	50
YH10W-102/266	102	110	79.6	148	297	266	226
YH10W-108/281	108	110	84	157	315	281	239
YH10W-200/520	200	220	156	290	582	520	442	600	100	50
YH10W-204/532	204	220	159	296	594	532	452
YH10W-216/562	216	220	168.5	314	630	562	478

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

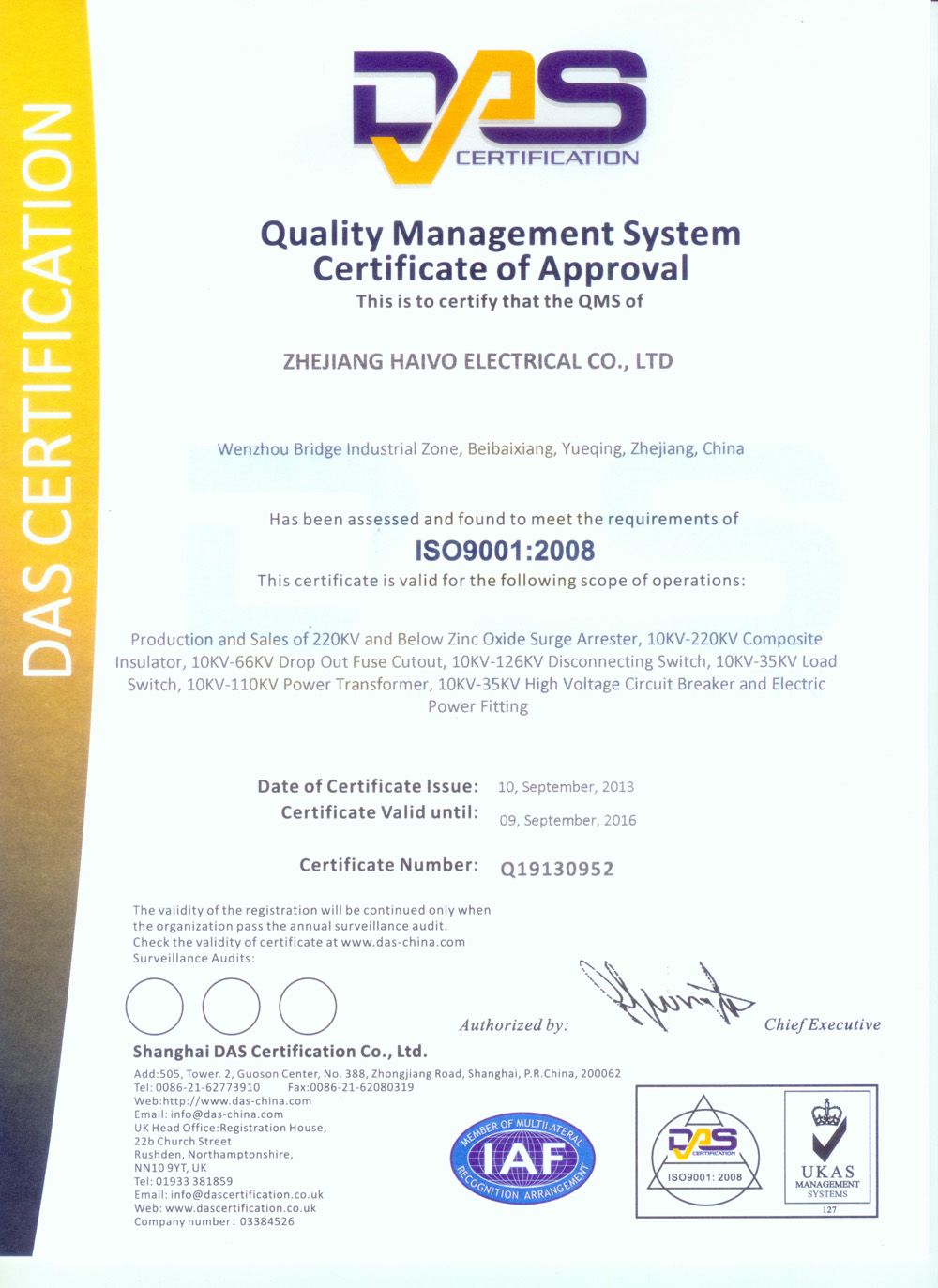

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
