| Prod Model: |
KL-CLKZ02A |
| Frequency: |
315MHz / 433MHz, Optional |
| Decoding Type: |
Learning Code(EV1527) / Fixed Code(PT2262) |
| Working Mode: |
Latching / Momentary |
| Max Load: |
5A |
| Operation: |
Remote + Manual |
| Application: |
Curtain |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Type: |
Dual |
Product Description

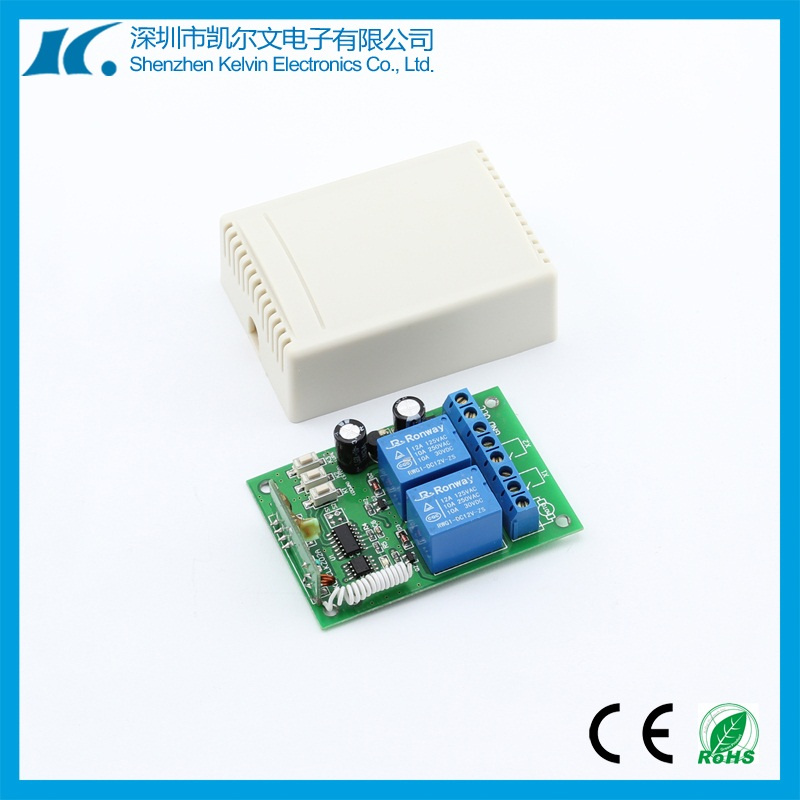

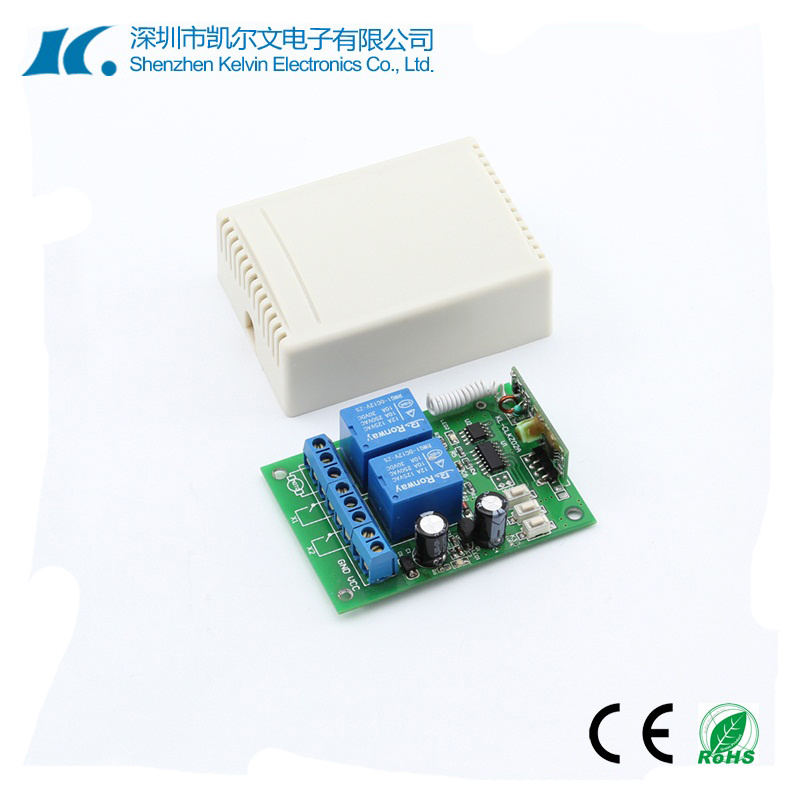

Popular 2 Channels Forward Reverse Motor Controller Kl-Clkz02A1,Product Description

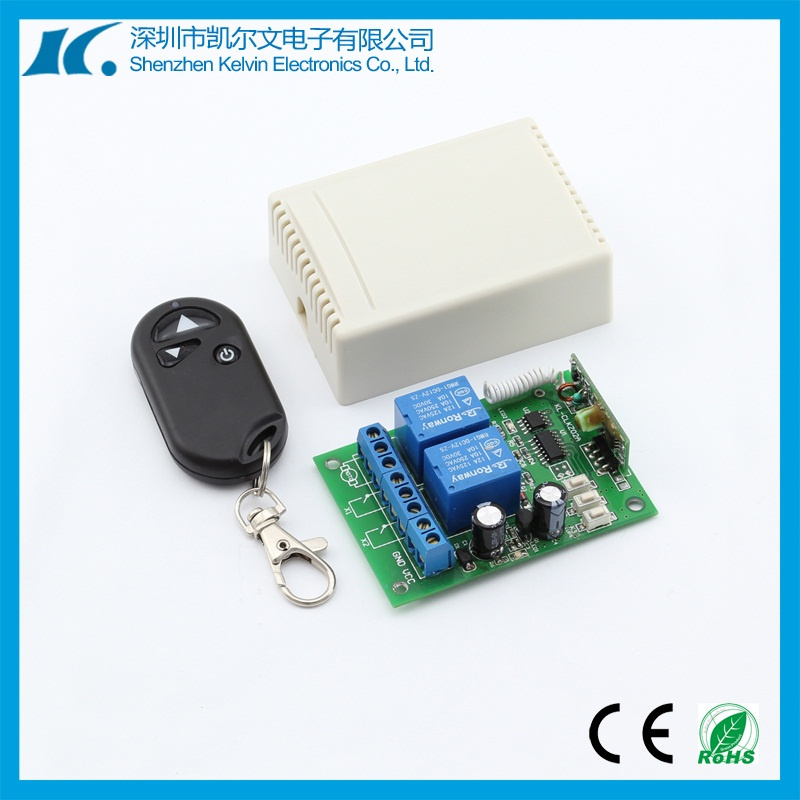

The product is one of wireless remote controller which work with low directly current, pressing button "UP STOP DOWN" which on remote control to make motor forwards, stop, reverse. When motor run the right position, it will trigger limited switch and stop immediately, it widely be used in controlling curtain, electronically gate/window etc.
| Model | KL-CLKZ02B |
| Input | DC12V (DC 24V/9V can be customized) |
| Quiescent Current | 3-5mA |
| Rated Power | 60W |
| Frequency | 315MHz / 433MHz, optional |
| Receiving Sensitivity | -103dBm |
| Decoding Type | Learning Code(EV1527) / Fixed Code(PT2262) |
| Max Load | 5A |
| Dimension | 75*54*28mm (including case) |
| Working Mode | Latching / Momentary |
2,How to add/delete remote controls:1)Remote control works after matching remote controller. Remote control must have 3 buttons at least. The 3 buttons must match the switch separately.
2)Jumper on S1, then hold the learning button K1, when the indicator light blinks, press the Forward key of the remote control until the light is off, that means Forward key match code successfully. Repeat above steps to match Reverse and Stop. After all buttons match code, the jumper must be removed from S1. Otherwise, if press remote control at Momentary mode, it will clear all code. The order of matching must be Forward→Stop→Reverse.
3)Working mode can be adjusted with a jumper on S2. Jumper on S2, Momentary mode. Nothing on S2, Latching mode.
4)If need to add more remote controls, only repeat step 1 is ok and 20pcs at most.
5)If need to delete remote controls, hold the learning button of main board more than 3 seconds until led indicator from flashing to extinguish, then release finger.
6)This product can learn remote controls with the following coding chip: PT2262, PT2260, EV1527, PT2240 etc
Attention:
The right operation step must be Forward-Stop-Reverse, or Reverse-Stop-Forward, Please don't try as Reverse-Forward or Forward-Reverse. Thanks
3,Shipping1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line
Depends on buyer's requirement.
4,FAQ1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)
For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.
2) If i don't know how to use the products, what can i do?
Pls contact us whenever you need our help, even we are not online.
You can write email to us, or contact us byTrademanager, Skype, and other IM tools.
We are all very glad to answer your questions.
3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC.
If you have any other requriements with certifications, we also would like to help you.
