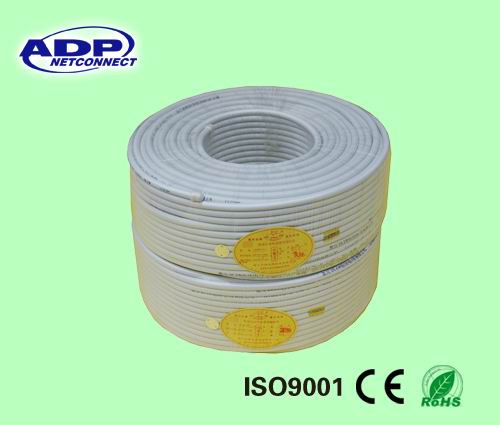

Popular Coaxial Cable RG6 From Professional Manufacturer

Name: Popular Coaxial Cable RG6 From Professional Manufacturer
Brand: all-electronics-online.com
SKU: 794564645
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 0.01-0.05/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Insulation Material:	PE
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CCC
Type:	Coaxial Cable

Product Description

Product Description

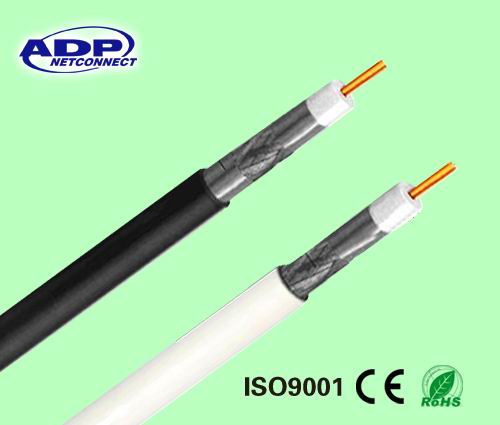

RG6 Tri shield coaxial cable
1) Construction
Center Conductor: 1.02+0.01mm Solid Copper/Copper Clad Steel4: 4.57+/-0.05mm Foam PE
Shield 1st: Optional Bonded or unbonded Aluminum Foil or double Aluminum foil
Braid Coverage: 40 - 95% Al-Mg or copper or CCA wires
Shield 2nd: Aluminum foil or APA foil
Jacket: 7.06+0.05mm PVC
Jelly/APD: Per Customers' Special Requirement

2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)

3. Package:100m/roll or as your request

4.company view:
With years of export experience along with excellent quality, advanced services and competitive prices,ADP has won numerous customers' trust and support,Welcome to visit .

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
