Popular Mini Hinge Joint Electric Conduction Plastic Fiml Line Sensor

Name: Popular Mini Hinge Joint Electric Conduction Plastic Fiml Line Sensor
Brand: all-electronics-online.com
SKU: 820096975
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 98-118/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KPM
Product Name:	Electric Conduction Plastic Fiml Line Sensor
Scale Range:	10-100mm
Feature:	High Speed
Max Current:	10A
Material:	Aluminum Alloy

Product Description

Popular Mini Hinge Joint Electric Conduction Plastic Fiml Line Sensor

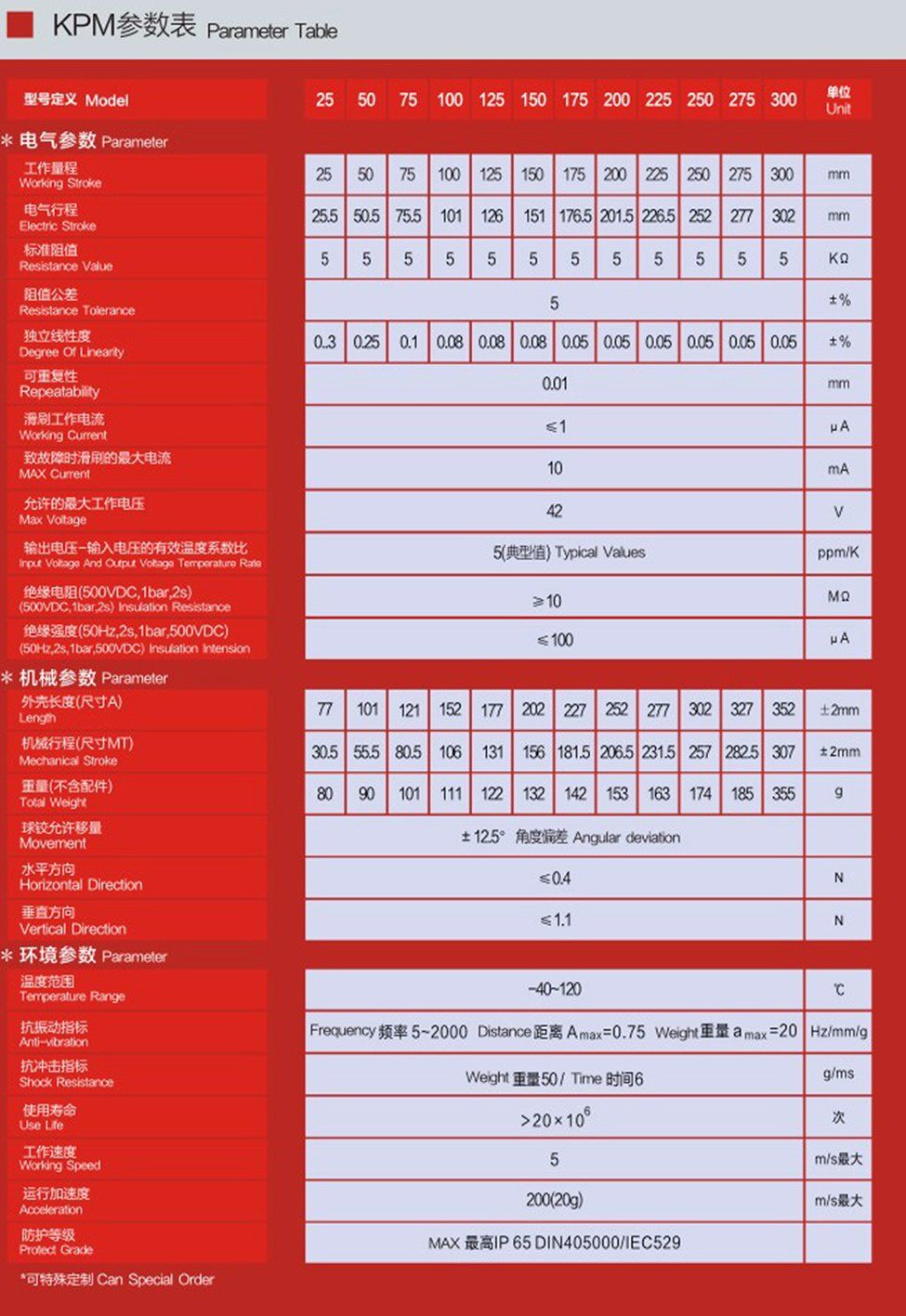

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	25-300	-40~120	≤0.4	≤1.1

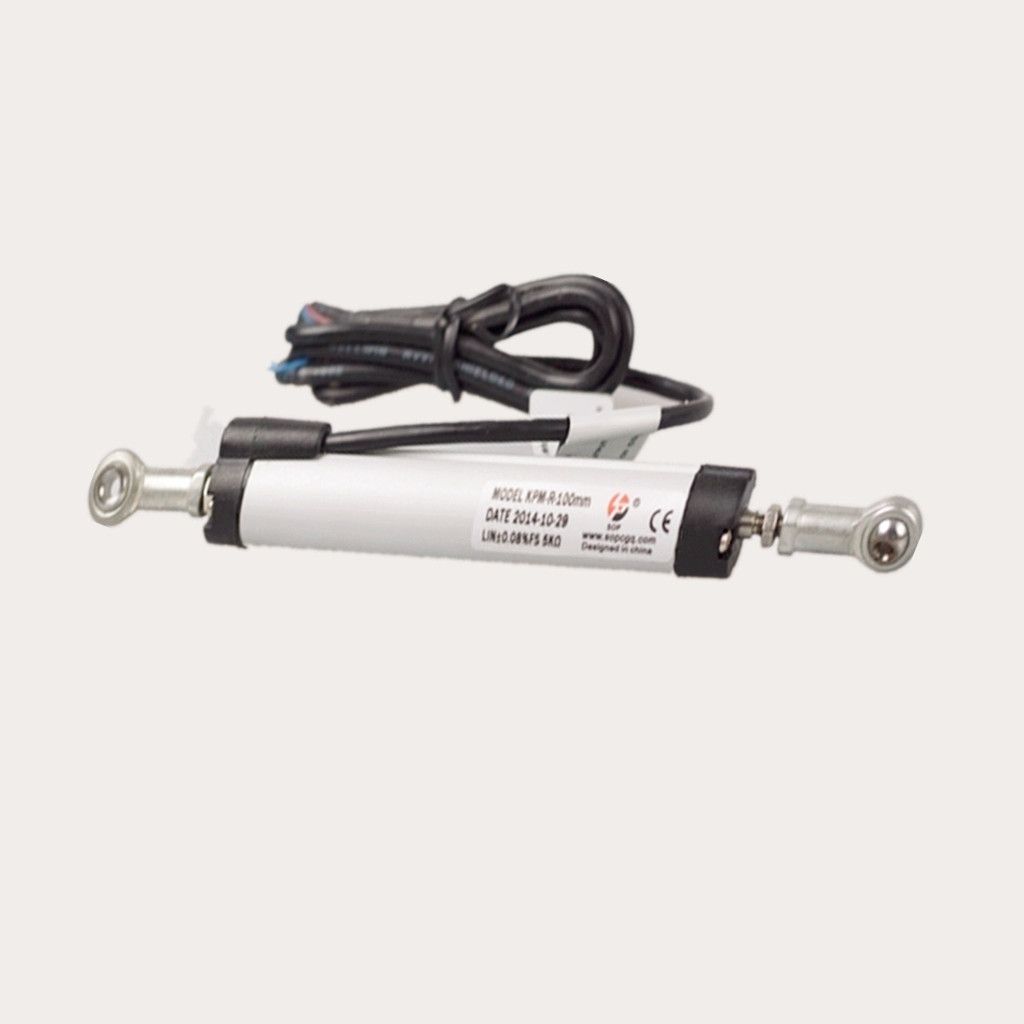

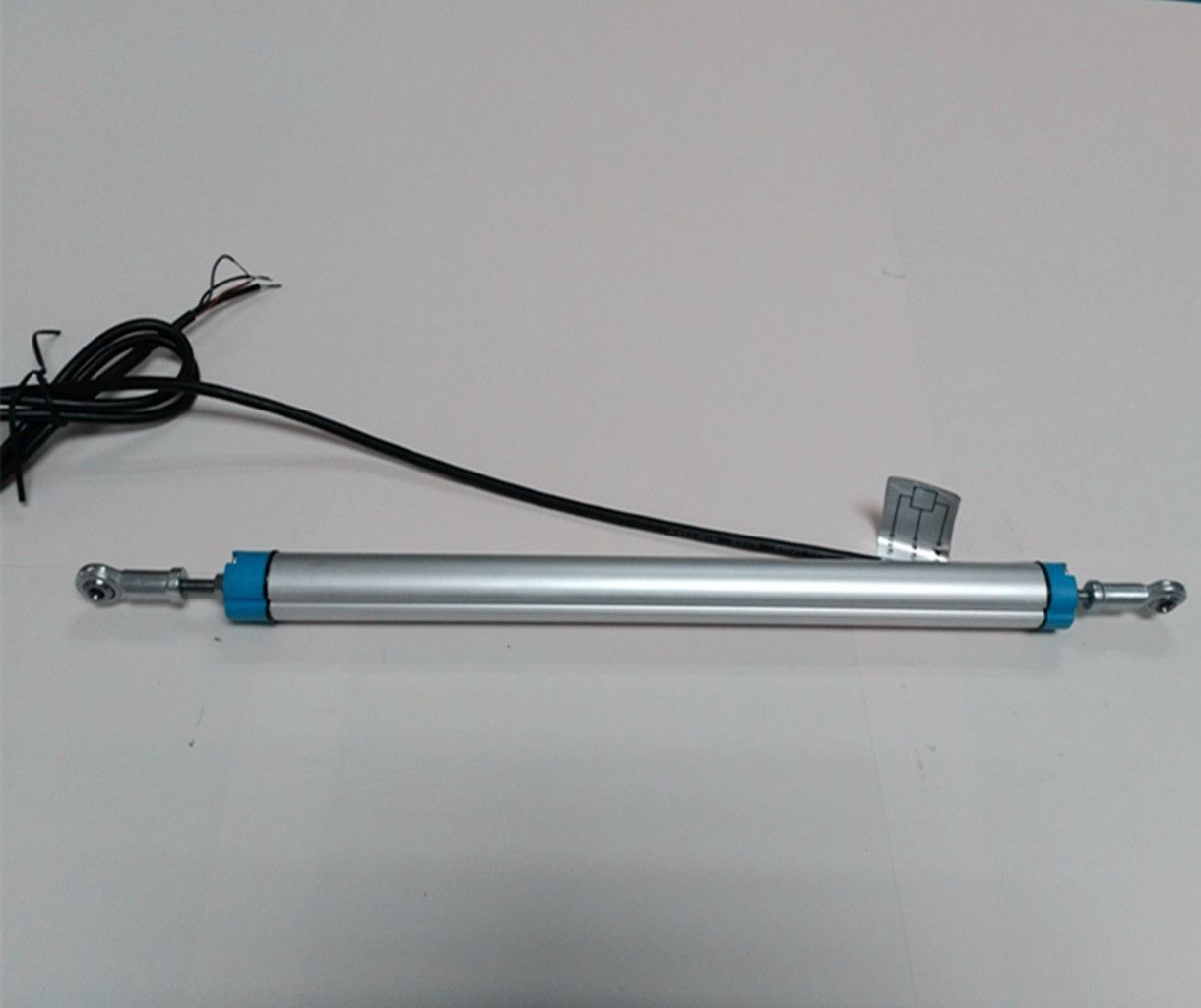

KPM Miniature hinge series linear displacement electronic ruler, effective stroke 25mm ~ 300mm, 2mm at both ends buffer stroke, precision 0.5% ~ 0.05% FS. Shell surface, anodizing, corrosion resistant; built-in conductive plastic measuring unit, drift-free, long life. Sealing rating of up to IP65, have a direct outlet and five-pin plug socket out two options, can be applied in most common situations, especially for small installation space, the body can not be fixed, swing motion of the occasion, no pair; allowable limits velocity: vertical installation of 5m / s, horizontal installation of 2m / s.

KPM is a mini articulated structure, suitable for small installations, an ontology cannot be fixed, moving swing position detection, neutral without any requirements for installation. Such as: Android, fetching machine, brick, ceramic machine, sluice

KPM Displacement Sensor Product feature:

Volume smaller
Usage life is longer, Times could reach fifty million
Resolution rate is higher than 0.01mm
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Eye ball joint, could move with big angle
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
Package:

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
