Popular Sales of Rod Type Silicon Carbide (SiC) Heating Element, Sic Furnace Heater
| Price: |
US $ 3-10/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SHIBO-SiC heating element |
| Product: |
Rod Type Silicon Carbide(Sic) Heating Element |
| Diameter: |
From 2mm to 54mm |
| Application: |
Ceramics, Glass, Analysis and Test, Semiconductor |
Product Description

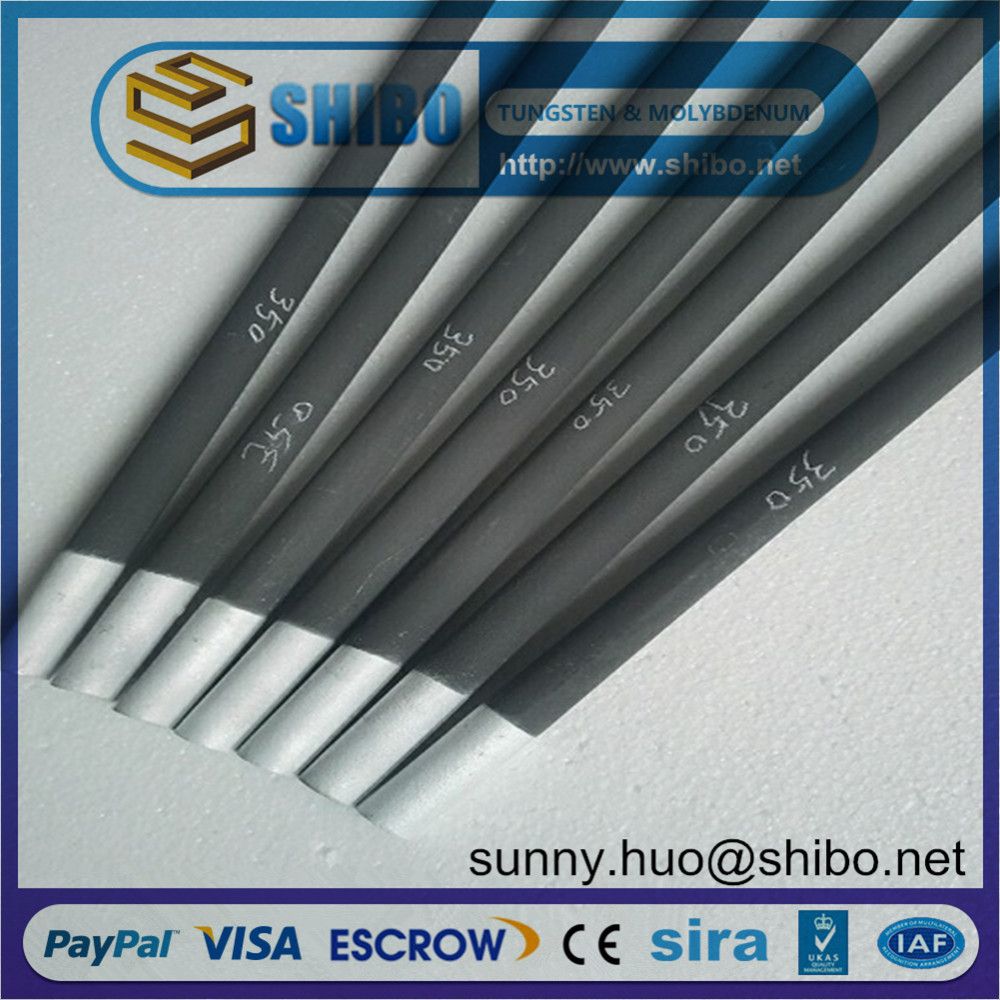

Rod type SiC heating element is made from quality green SiC powder, which was also added some additives according to the materials proportion. SiC heating elements are non-metallic products, they have a series of characteristics, such as higher temperature, antioxidation, anticorrosion, increase temperature fast, low coefficient of thermal expansion and so on. Feature of SiC heating elementsAnti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintance.SizeDiameter: from Dia12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 31.7mm (1.25 inch), 35mm, 38.1mm (1.5 inch), 40mm, 44.4mm (1.75 inch) to 54mm (2.125 inch)
Length: 300-3000mm
Working temperature: 1400CSpecifications and resistance range
diameter |
Length of hot zone |
Length of cold zone |
Overall length |
Resistance |
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-300 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200--600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5
|
54 |
600-2500 | 300-250 | 1200-4000 | 0.3-3.0 |
Special specification can be produced to meet customers' requirements.
ApplicationSiC heating elements can be used in the furnace temperature 600C-1400C, directly in the air use as well, and it need not any protective atmosphere. Because of SiC heating elements well performance, they are widely used in high temperature furnace, ceramics, glass, analysis and test, semiconductor, science research...Etc

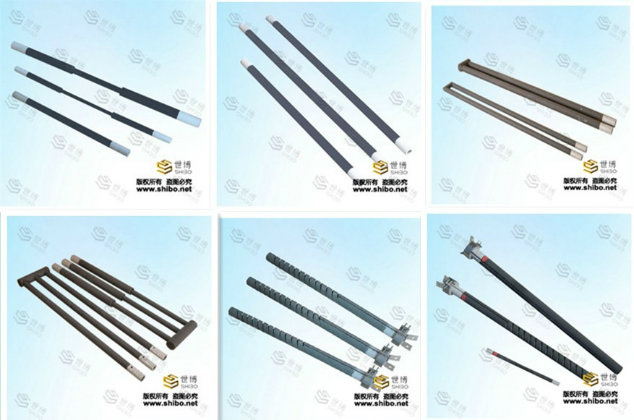

Series of SiC heating element supplied from our company

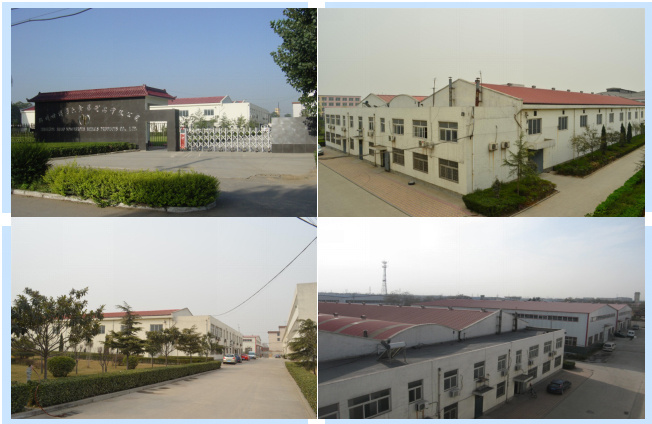

Photos of our factory
The advantage of us1) leading producer, more than 20 years producing experience2) factory direct sales, low price in the market3) the whole production line from powder to finished products, top and steady quality assured4)fast delivery and best sale servicePlease contact us freely if you have any problem, we are sure any of your questions will get our prompt attention and reply.
