Shenzhen Sunway Industry Co., Ltd. >> Popular Solar Power TFT Display Real-Time Monitoring The Pressure & Temperature TPMS

Popular Solar Power TFT Display Real-Time Monitoring The Pressure & Temperature TPMS

Popular Solar Power TFT Display Real-Time Monitoring The Pressure & Temperature TPMS
Price: US $ 49.9-51.9/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: TPSF-I-1
Working Voltage: 2.1~3.6V
Weight: 30g±1g
Battery Life: >5 Years
Working Pressure: 0~99 Psi
Monitoring Range: 0~51 Psi
IP: IP67
Transmit Frequency: 433.92 MHz
Type: Internal Battery Detachable TPMS
Wiring Type: Wireless
Customized: as Customer's Choice

Product Description

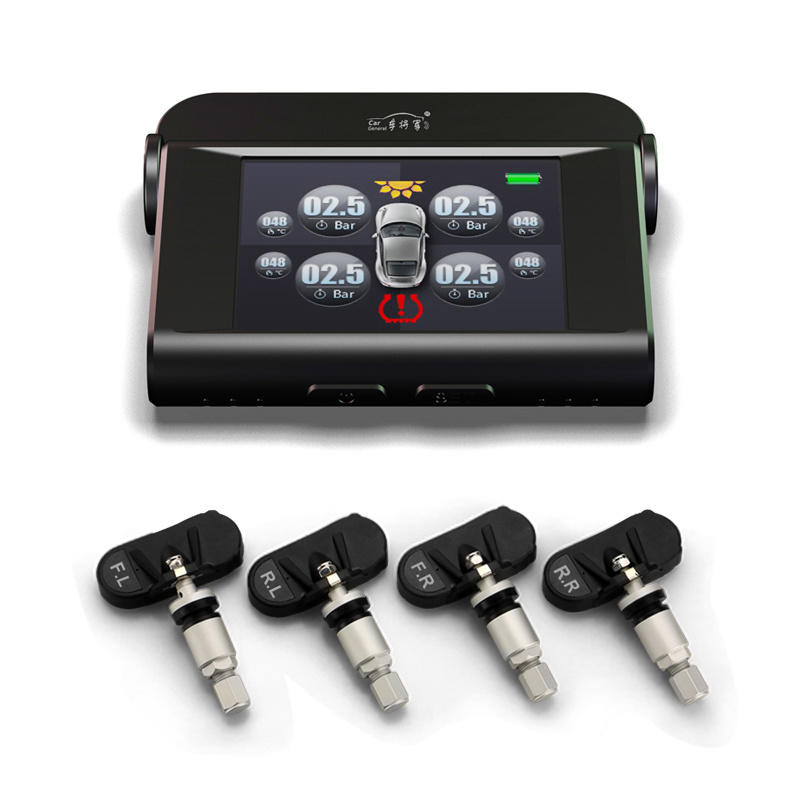

Popular Solar Power TFT Display Real-time monitoring the pressure & temperature TPMS
Solar Power, TFT display directly,Icon moving while warning Real-time monitoring the pressure & temperature Low air pressure/high temperature warning Set up sensor: learn new sensor ID code when replace sensor .


Display Parameter
ParameterValueParameterValue
Storage temperature: -30ºC~+80ºCOperating temperature-20ºC~+75ºC
 Bright operating current< 5 0 mARF Signal reception sensitivity433 . 92 MHz±50 KHz
Operating Voltage3.7-5 VBlack Operating Current 3 mA
Transmission frequency433 . 92 MHz±50 KHz

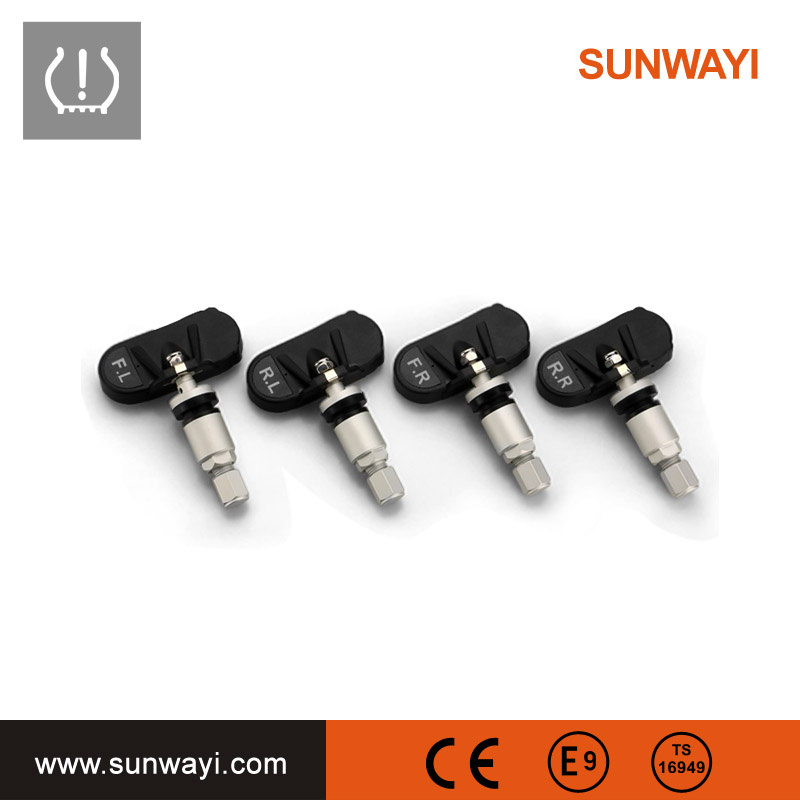

Internal Sensor Parameter

ParameterValueParameterValue
Working pressure0~99 PsiPressure accuracy±1.5Psi
Battery life>5yearsTransmit Frequency433.92 MHz
Transmit power<10dBmWorking Voltage2.1~3.6 V
IPIP67Working temperature-40~120°C
Storage temperature-45~125°CTemperature accuracy±2°
Dimension70mm*53mm*20mmWeight30g




Packaging Details:  Gift Box Size:200*185*70MM

Delivery Detail: 3-7 days for sample and 15-20 business dyas for general order

Our Services:
 1.Professional and 17 years history
 2.17-year overseas marketing &17-year OEM/ODM experience
 3.100% quality test before shipment
 4.Market leading prices
 5.Best after-sales service
 6.Abundant exporting experience


Notice: For more detail information,please feel free to contact us!
















Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
