| Prod Model: |
Vehicle Tracker coban TK103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Weight: |
120g |
| Remote Controller: |
Optional |
| Tracking: |
by SMS or GPRS |
| Tracking Way: |
: Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Vehicle Security Tracker: |
Engine Shut off Remotely |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
103 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description

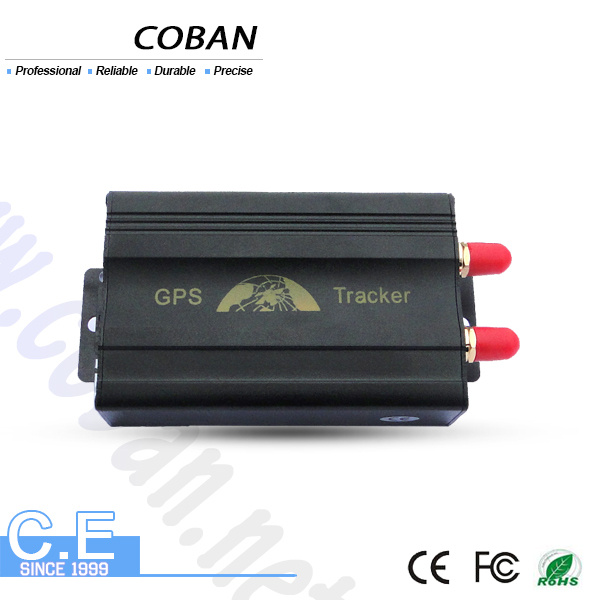

Popular Vehicle Car GPS Tracking System with Engine Cut Off Tk103A
1. Remote Engine-stop and Resume
2. Real-time track by the monitor software in PC
3. GSM GPRS live tracking
4. Car security alarm: ACC, Door, motion sensor
It is based on GSM/GPRS (850/900/1, 800/1, 900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Track by multiple tracking 4 ways:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Optional Android IOS app tracking
4. Optional web server
Function Description
1)Real time monitoring;
2)GPS Orientation,
3)Automatic Report Position/Status
4)Engine Running Time Recording
5)History data store even power off
6)History playback7)Remote modify vehicle setup
8)Auotmatic keep GPRS alive
9)Speeding Report
10)Domain name setting
11)Geo-fence
12)Cut off power&gas supply
13)Emergency Help
14)Power off and Wire cut-off Report
15)voice listening
Optional function:
1). Quiver / Sensor alarm
2). Optional 24V relay for 24V vehicle
3). Siren
4). Extra remote control for mode B
Applying directions: Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 83mm*54mm*26mm, 125g in weight
*GPS chip: SIRF3 chip GSM module: SIM900B
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix Cold status 35s, hot status 1s
*GSM Network frequency: 850/900/1800/1900MHz
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
