Porcelain Disc Insulator (52-3)

Name: Porcelain Disc Insulator (52-3)
Brand: all-electronics-online.com
SKU: 664346155
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,others
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	52-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Hybrid Insulation
Thermal Rating:	250 250
Structure:	Suspension Insulator
Material:	Porcelain
Application:	Insulators
Type:	Solid
Brand:	Powlik
Color:	Brown

Product Description

(1) Widely used for insulation and fixed the conducter in aerial communication lines
(2) The surface of the products are covered by strong insulating rubber layer
(3) This ceramic insulator with a high dielectric strength
(4) Good performance
(5) Reasonable price and factory direct price
(6) We have our own factory and we can ensure the quality.
(7) Welcome come to visit our factory and seek further cooperation.

Comply to IEC 60383-1
Comply to ANSI C29.5

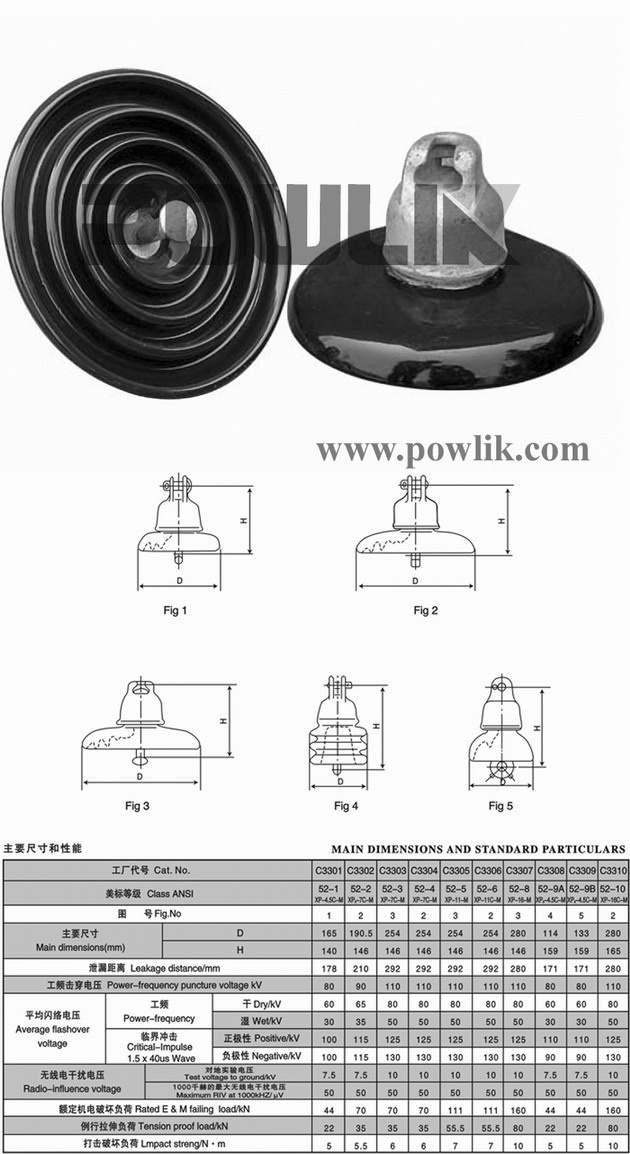

Cap and Pin Type Suspension Insulators for high voltage transmission line.
ANSI Class: 52-3
Diameter: 254mm
Height: 146mm
Creepage Distance: 292mm
Dry Power frequency flashover voltage: 80KV
Wet Power Frequency Flashover Voltage: 50KV
Min. Failing Load: 70KN
Rutine test load: 35KN
Weight: 4.6Kg

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
