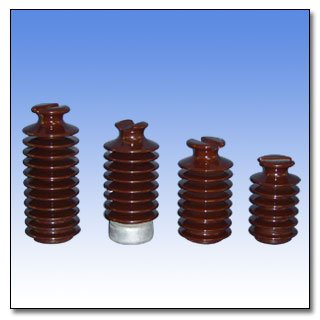

Porcelain Insulator ANSI Series
| Price: |
US $ 1-50/Piece |
| Trade Terms: |
CFR |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Post Insulator |
Product Description
According to ANSI standard
| Cat. No. | 301 | 301 | 301 | 301 | 301 | 301 | 301 |
| 20 | 25 | 35 | 45 | 55 | 66 | 88 |
| Usual line voltage/kV | 20 | 25 | 35 | 45 | 55 | 66 | 88 |
| ANSI Class | _ | Jan-57 | Feb-57 | Mar-57 | Apr-57 | May-57 | Jun-57 |
| Designation of Neck | F | F | F | F | N | N | N |
| Height" A" /in(mm) | 2007-1-2 | 2008-3-4 | 12 | 14-1/2(369) | 17 | 20 | 23 |
| -191 | -222 | -305 | -432 | -508 | -584 |
| Diameter " B" /in(mm) | 2005-1-2 | 2005-3-4 | 2005-3-4 | 6 | 7 | 7 | 7-5/16(185) |
| -140 | -146 | -146 | -512 | -178 | -178 |
| Diameter " C" /in(mm) | 2003-3-4 | 4 | 4 | 2004-1-2 | 5 | 5 | 2005-1-2 |
| -95 | -102 | -102 | -114 | -127 | -127 | -140 |
| Thread " D" /in(mm) | 3/4-10UNC | 3/4-10UNC | 3/4-10UNC | 3/4-10UNC | 3/4-10UNC | 3/4-10UNC | 7/8-9UNC |
| Min. leakage distance/in(mm) | 11 | 14 | 22 | 29 | 40 | 45 | 53 |
| -280 | -356 | -559 | -737 | -1015 | -1145 | -1345 |
| Dry arcing distance/in(mm) | 2005-3-4 | 2006-1-2 | 2009-1-2 | 12-1/4(311) | 14-1/2(368) | 17-1/4(438) | 19-1/4(489) |
| -146 | -165 | -241 |
| Cantilever strength/lb(kN) | 2000 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
| -9 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Average flashover | Low Frequency | Dry/kV | 80 | 80 | 110 | 125 | 150 | 175 | 200 |
| voltage | Wet/kV | 55 | 60 | 85 | 100 | 125 | 150 | 170 |
| | Critical Impulse | Pos. /kV | 105 | 130 | 180 | 210 | 255 | 290 | 330 |
| | Neg. /kV | 130 | 155 | 205 | 260 | 340 | 380 | 425 |
| Withstand | Low frequency | Dry/kV | 60 | 60 | 90 | 100 | 120 | 140 | 160 |
| voltage | Wet/kV | 40 | 45 | 65 | 80 | 100 | 120 | 135 |
| | Impulse/kV | 85 | 110 | 150 | 170 | 200 | 235 | 250 |
| Radio | Test voltage/kV | 15 | 15 | 22 | 30 | 44 | 44 | 44 |
| influence voltage data | Max. RIV | 50 | 100 | 100 | 200 | 200 | 200 | 200 |
| | at 1, 000kHz/uV |
| Net weight/lb(kg) | 8.5 | 11 | 17 | 22 | 36 | 46 | 51 |
| -3.9 | -5 | -7.7 | -10 | -16 | -21 | -23 |
