Porcelain Line Post Insulator for High Voltage (57-4)

Porcelain Line Post Insulator for High Voltage (57-4)
Price: US $ 3.75-5.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: 57-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Creepage Distance: 1015mm: Unit Weight: 16kg
Structure: Post Insulator
Material: Porcelain
Application: High-voltage
Size Of Bearing Capacity: 12.5kn
Type: ANSI
Brand: Refine
Color: Brown

Product Description

Type: Line Post Insulator
Material: Porcelain
Application: Insulation for High Voltage Lines
Standard: ANSI
Color: Brown or Light Grey

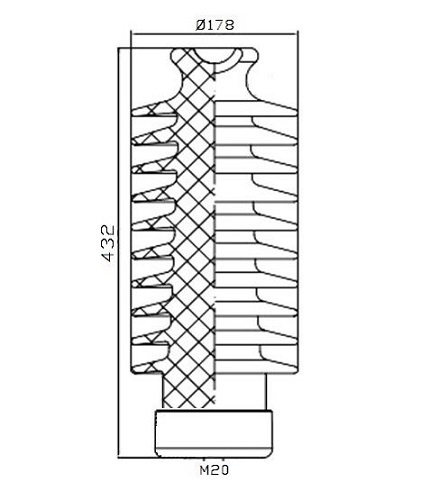

Dimension Drawing

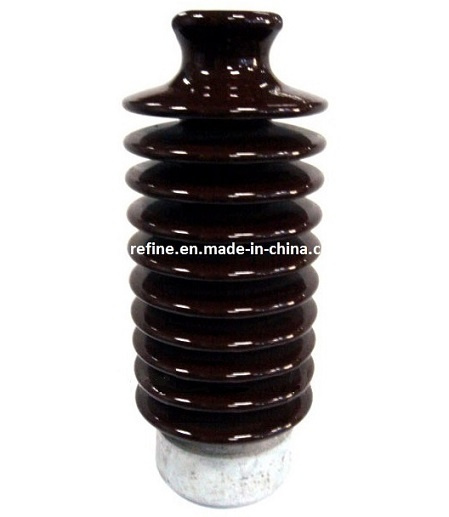

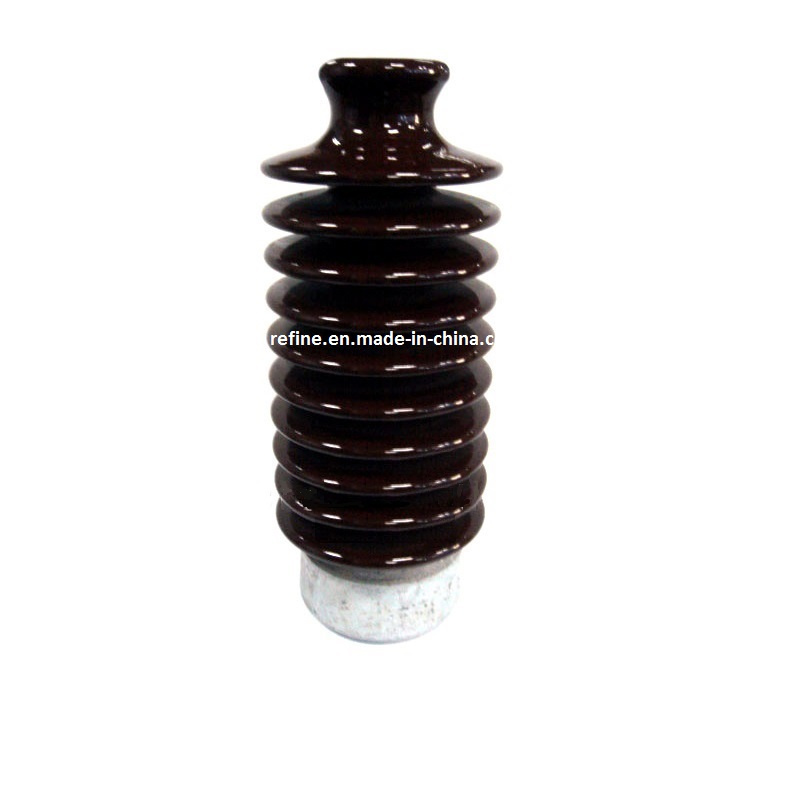

Product Picture

Standard Technical Particulars
ANSI Standard 57-4
Fig No. 3
Min Creepage Distance (mm) 1016
Dry Arcing Distance  (mm) 368
Cantilever Strength (kN) 12.5
Power Frequency Flashover Voltage Dry (kV) 140
Wet (kV) 110
Critical Impulse             Flashover Voltage Positive (kV) 230
Negative (kV) 340
Radio Influece Voltage Test Voltage to ground (kV) 44
Maximum RIV at 1000kHz (μV) 200
