Porcelain Line Post Insulator for High Voltage Line (57-1 / 57-2 / 57-3 / 57-4 / 57-5 / 57-6)

Name: Porcelain Line Post Insulator for High Voltage Line (57-1 / 57-2 / 57-3 / 57-4 / 57-5 / 57-6)
Brand: all-electronics-online.com
SKU: 618805132
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 10.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	57-1/57-2/57-3/57-4/57-5/57-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Organic Insulation
Thermal Rating:	250 250
Creepage Distance:	53 Inch
Bending Load:	2800 Pound
Application:	Insulators
Material:	Porcelain
Structure:	Post Insulator
Type:	Solid
Size Of Bearing Capacity:	2800 Pound
Color:	Brown
Brand:	Powlik

Product Description

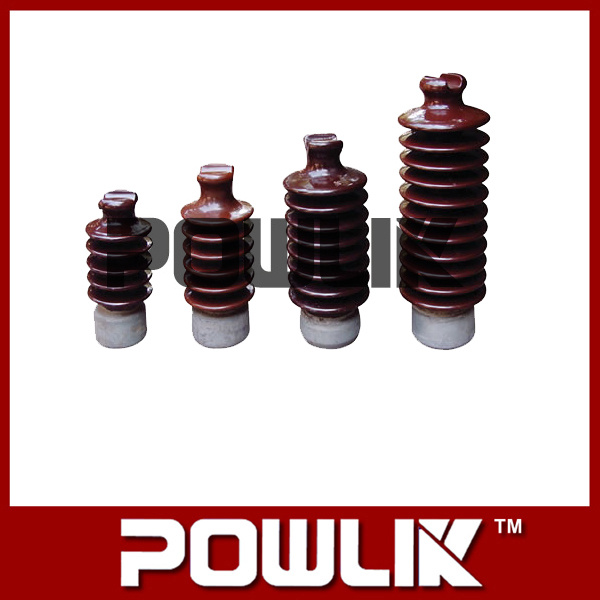

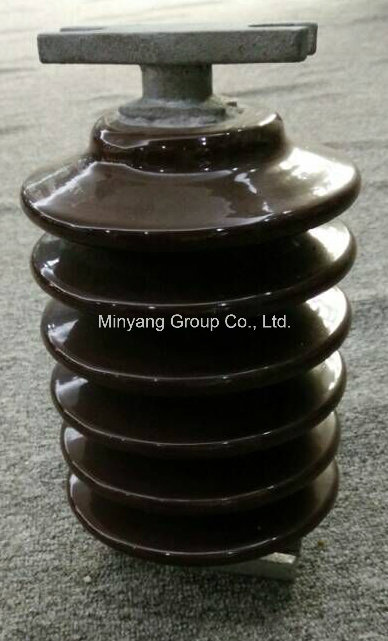

Porcelain Line Post Insulator For High Voltage Line(57-1 / 57-2 / 57-3 / 57-4 / 57-5 / 57-6)

1.Type: Post Insulator
2.Material: Porcelain
3.Application: Insulation for High Voltage lines
4.Standard: ANSI
5.Color: Brown or Light Grey
6.Package: Wooden Crate or as per customer's requirement.

Feature:
A.Professional porcelain line post insulator producer and supplier
B.Elegant galzed apperance and free sample

Cat No.		Power frequency flashover voltage		Impulse flashover	Radio Intereference		Creepage distance	Dry arcing distance	Height	Bending load	Dia.	Thread
	Class	Dry KV	Wet KV	KV	Test KV	MaxRIV2μV	Inch	Inch	Inch	pound	Inch	Inch	fig.no
	Vertical top binding
A1014	57-1	70	50	120	15	100	14	6.5	9	2800	5.5	3/4.	1
A1015	57-2	100	70	160	22	100	22	9.5	12	2800	6	3/4	1
A1016	57-3	125	95	200	30	200	29	12.25	15	2800	6.5	3/4	1
A1017	57-4	140	110	230	44	200	40	14.5	17	2800	7	3/4	2
A1018	57-5	160	130	265	44	200	45	17.25	20	2800	7.5	3/4	2
A1019	57-6	180	150	300	44	200	53	19.25	23.5	2800	8	7/4	2
A1020	57-11	70	50	120	15	100	14	6.5	10	2800	6	3/4	3
A1021	57-12	100	70	160	22	100	22	9.5	13	2800	6.5	3/4	3
A1022	57-13	125	95	200	30	200	29	12.25	16	2800	6.5	3/4	3
A1023	57-14	140	110	230	44	200	40	14.5	18.5	2800	7	3/4	3
A1024	57-15	160	130	265	44	200	45	17.25	21.5	2800	7.5	3/4	3
A1025	57-16	180	150	300	44	200	53	19.25	24.5	2800	8	7/8	3
A1026	57-21	70	50	120	15	100	14	6.5	11	2800	6	3/4	4
A1027	57-22	100	70	160	22	100	22	9.5	14	2800	6.5	3/4	4
A1028	57-23	125	95	200	30	200	29	12.25	16.5	2800	6.5	3/4	4
A1029	57-24	140	110	230	44	200	40	14.5	20	2800	7	3/4	4
A1030	57-25	160	130	265	44	200	45	17.25	22.5	2800	7.5	3/4	4
A1031	57-26	180	150	300	44	200	53	19.25	25	2800	8	7/8	4

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
