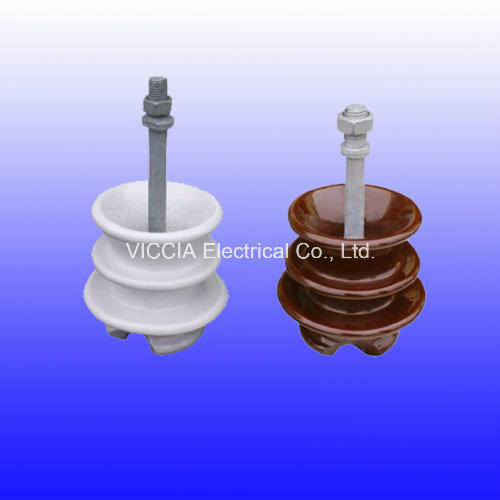

Porcelain Pin Insulator for 11kv

Name: Porcelain Pin Insulator for 11kv
Brand: all-electronics-online.com
SKU: 740886365
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 2-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI P-11-Y
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator

Product Description

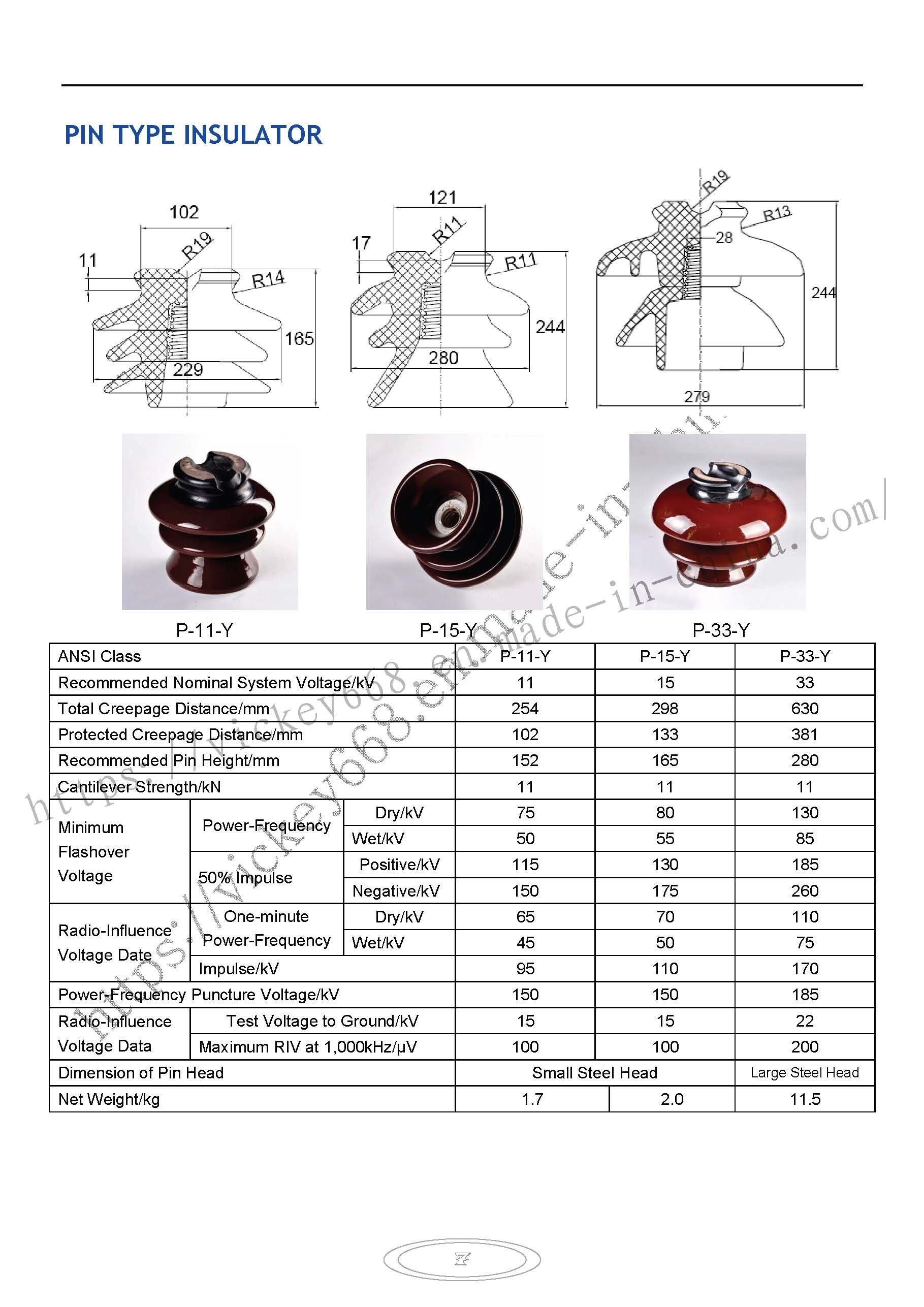

ANSI P-11-Y Porcelain Pin Type Insulator
1.Factory price
2.Timely delivey
3.ANSI CLASS

ANSI Class			P-11-Y
Recommended Nominal System Voltage/kV			11
Total Creepage Distance/mm			254
Protected Creepage Distance/mm			102
Recommended Pin Height/mm			152
Cantilever Strength/kN			11
Minimum Flashover Voltage	Power-Frequency	Dry/kV	75
		Wet/kV	50
	50% Impulse	Positive/kV	115
		Negative/kV	150
Radio-Influence Voltage Date	One-minute Power-Frequency	Dry/kV	65
		Wet/kV	45
	Impulse/kV		95
Power-Frequency Puncture Voltage/kV			150
Radio-Influence Voltage Data	Test Voltage to Ground/kV		15	15
	Maximum RIV at 1,000kHz/ μ V		8,000	100

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
