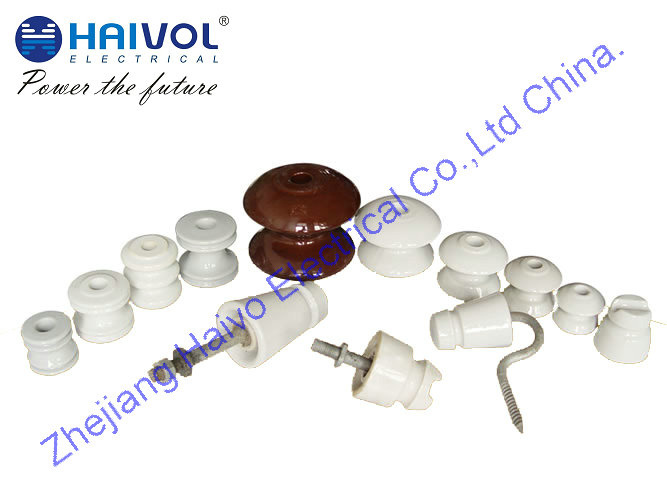

Porcelain Shackle Insulator

Name: Porcelain Shackle Insulator
Brand: all-electronics-online.com
SKU: 724082005
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	25-70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Porcelain Insulators:	Pin Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Shackle Insulator
Type:	B Type Insulator
Brand:	Haivol

Product Description

High Voltage Porcelain Insulators
High voltage line disc type suspend Insulator, use in high voltage aerial transferring distributed circuit for insulating and suspending lead. Normal component insulator bunch is used for ling of different voltage grade. Insulator has normal type and endurant- corrupt according to working surrounding and area, it has ball type and groove type from connect method. The products are all meet National standard (GB standard), IEC standard and UK, US, German and Australia standard.

•specification:

Cat NO			A1016	A1017	A1018	A1019	A1020	A1021
Fig			2	1	1	3	3	3
Class BS			ED-2(C)	ED-2(B)	ED-2(B)1	1617	1618-1	1618-2
Main Dimensions (mm)	H		80	76	76	65	75	75
	D		80	89	89	76	89	89
	d		50	48	48	46	55	55
	d 1		22	21	17.5	17.6	17	17
	R		6	10	10	9	12.5	12.5
Mechanical failing load(kn)			13	12	12	9	10	13
Minimum Flashover Voltage	Power-frequency	Dry	25	25	25	20	20	25
Minimum Flashover Voltage	Power-frequency	Wet	25	12	12	9	9	12
Weight(kg			0.5	0.5	0.5	0.4	-	-

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
