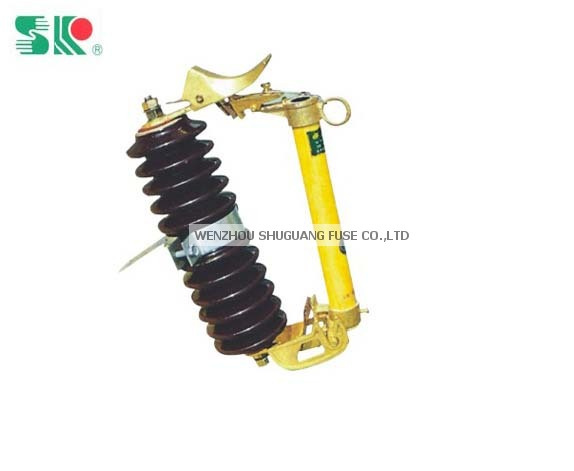

Porcelain Types of Fuse Cutout HRC 12kv 100A

Name: Porcelain Types of Fuse Cutout HRC 12kv 100A
Brand: all-electronics-online.com
SKU: 670144561
Availability: InStock
Rating: 4.7 (97 reviews)

Price:	US $ 17.24/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Rated Voltage:	12kv
Rated Current:	100A
Breaking Current:	6300A
Impulse Voltage(Bil):	110 Kv
Leakage Distance:	230mm
Service:	OEM, ODM
Sample:	Available
Delivery:	as Required
Operation:	Manual Type
Breaking Capacity:	High Voltage
Type:	Fuse
Usaga:	Outdoor Network Protection

Product Description

Export types porcelain power cutout fuse is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. HDF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

Type	Rated voltage (KV)	Rated current (A)	Breaking current (A)	Impulse voltage (BIL)	Power-frequency withstand voltage (KV)	Leakage distance (mm)	Weight (KG)	Dimensions
HDF	12	100	6300	110	42	230	5.7	412212
HDF	12	200	12500	110	42	230	5.9	412212

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
