Portable 20W Mopa Fiber Laser Marking Machine on Metal Processing
| Price: |
US $ 0.001/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MFS-20 |
| Power: |
20W |
| Model: |
Fiber Laser |
| Work Material: |
All Metals |
| Advantages: |
Color Marking on Stainless Steel and Black Marking |
Product Description
Maxphotonics Smart Laser Marker
1. About Maxphotonics CO., Ltd
Maxphotonics is the leading professional manufacturer of fiber laser source/generator and optical components, which has been started on 2004. MAX has 12 years experience on R&D, produce and sell pulse fiber laser & CW laser & optical devices. Almost core optical devices in fiber laser source we made by ourselves, which contributes to the fastest reponse speed on service. Q-switched pulse fiber laser is 10W~100W; MOPA 10W~120W pulse width tunable fiber laser; CW (ContinousWave) Single Mode fiber laser 200W~1500W & CW Multi Mode 2000W~2500W, products widely applied for laser marking/cutting/welding on metal materials.
2. Unique Design of Smart Laser

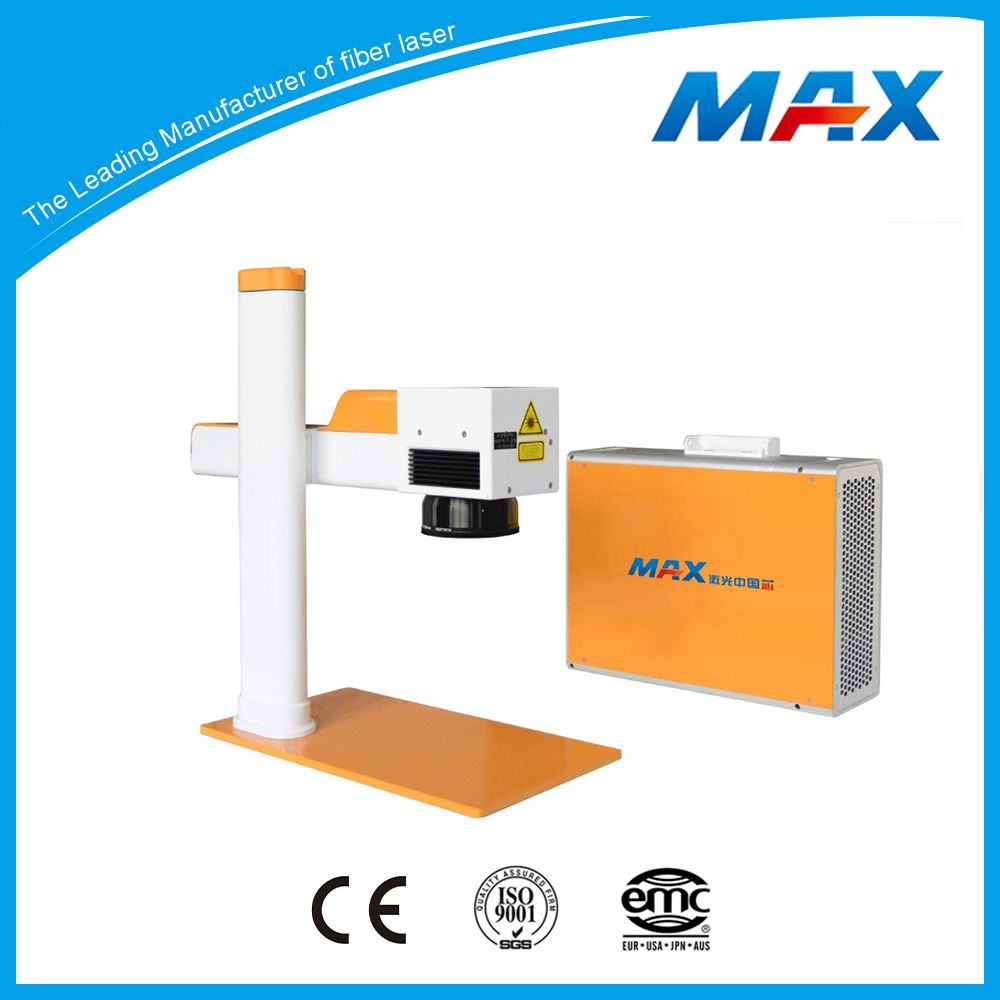

Maxphotonics MPS Series 10W & 20W MOPA Smart Fiber Laser Marking Machine (MFS-10 & MFS-20) is the Smallest Fiber Laser Marking Machine in the World, the real integrated technology, the unique design of real highly integration for fiber laser marker globally. MOPA fiber laser source with pulse width tunable from 4ns~200ns. The control card is installed inside of the MOPA fiber laser source, so it could be use as a complete fiber laser marking machine when connected with a monitor, keyboard and mouse. It's portable, small on size, good on design, low power consumption, easy to maintain.
3. Software
The software is made by Maxphotonics. Now, it has 4 languages (Chinese, Chinese Traditional, English, Korean). More language will be added as per customer requirements. This self-made software makes customized functions in software is easliy and fast. Smart laser also support connection of rotray and foot switch/pedal.
4. Advantages
1) Highly integration;
2) Portable design;
3) Small size(twhole machine at 20KG, 4 times less than traditional cabinet marking machine), easy to operate (plug-in and use it);
4) Support wifi connection to do laser marking by mobile, tablet PC or computer;
5) Support Customization on software;
6) Low cost (no consumer parts), Low Power Consumption;
7) Permanent marking;
8) Maintenance-free;
9) Long Life Time (10,000 Hours);
10) With CE Certificate;
11) Support TrueType character font, single line font, one-dimensional bar-code, compatible with bmp, jpg, tif, plt, dxf, ai,etc graphic format;
12) Support Color marking on stainless steel & deep balck marking on oxide aluminium.
5. Specification
| Maxphotonics MOPA Smart Laser Source Specification |
| Type | Unit | MPS-20 |
| Central wavelength | nm | 1060~1070 |
| Polarization | | Random |
| Average output power | W | 20 |
| Repetition Frenquency | KHZ | 1~1000 |
| Beam Diameter | mm | 6~9 |
| Beam quality | M2 | <1.5 |
| Maximum Pulse Energy | mj | 0.44 |
| Full Power Frenquency Range | KHZ | 45~1000 |
| Pulse width | ns | 5~200 |
| Power stability(t>5h) | % | <5 |
| Power tuable range | % | 0~100 |
| Operation voltage | VAC | 100~240 |
| Fiber length | m | 1.5 |
| Min. Line Width | mm | 0.01 |
| Repeatition Accuracy | mm | ±0.002 |
| Marking Area | mm | standard is 110*110mm (depends on specifcation lens) |
| Working Environment | | Temperature: 0~35ºC Humidity: 10~95 |
| Operation voltage | VAC | 220V 50/60HZ |
| Cooling | | Air Cooling |
| Total Weight | KG | 25 |
| Cooling | | Forced air |
| Operate temperature | | 0~35ºC |
| Operating humidity | | 10~95 |
| Stockpile temperature | | -10~60ºC |
| Application: Marking on metal, part of the non-metallic plating materials, plastic rubber, industrial-used plastics, ceramics and other marking; Deep carved; Fine processing;Special material processing |
6. Applications
6.1. Application fields: Jewelry, Gifts, Automobile Parts, Eletronical Parts, Food Packing, Glasses, Watch, Pharma, Mobile Button, Plastic Transparent Button, Electronic Component, IC, Tools, Communication Products; Bathing Products, Tool Accessories, Cutter, Button Decoration for Boxes and Bags, Cookers etc.
6.2. Materials: it can process on almost all matel material and partical non-metals, like stainless steel, mild steel, aluminum, copper, brass, silver, gold, titanium, pp, pvc, pet etc.
6.3 Application results: Color marking on stainless steel, dark marking on oxide aluminium, Black Marking, White Marking etc.7. Contact
1)About us
Maxphotonics is the No. 1 professional designer and manufacturer of laser source in China. Founded in 2004, we offer the best laser solution for the customers all over the world more than ten years. Maxphotonics has 151 patents and 16software copyrights as independent intelligent property rights. Meanwhile, has been granted ISO 9001: 2008 certificate, CE certificate, SGS certificate. Covering 50% market shares on China. Maxphotonics covers 140, 000 m2, with 600 employees. We set 4 Offices in domestic China: Shanghai, Beijing, Fujian and Hunan. And has distributors all over world: In Germany, Korea, Taiwan, Japan, India, Turkey.
2)Offer Five Series Innovative Products
* Portable & Remote control Laser Marking Machine
* Q-Switched Pulsed Fiber Laser of 10-200W (Application same as IPG's)
* MFP LD+MOPA Pulse Width Tunable Fiber Laser of 10W-100W(Application same as IPG's)
* CW fiber laser (5W-800W), Unique solution of fiber lasers for cutting, welding, drilling, and science &research
* VERY economical MFP-10L fiber laser (which was designed to alternative the 50W semi-conductor pump-side laser).
* Laser components, total laser solution offered, such as isolator, modulator, Collimator, Pump protector, combiner, scan head, control card&software, ect.
3)Patented Technology
During working, 80 - 90% of the laser's light can be reflected onto the fibers, potentially causing damage. Our patented back reflection technology allows the user to process highly reflective materials at full power without back reflection harming the equipment or fiber optics.
4)Top Advanced R&D strength
Maxphotonics has professional software develop team consist of 80 R&D employees, 80% with master degrees in optics major, 2 R&D leaders with PHD degrees.
5)Rigorous Q&C Systems
Maxphotonics has 100 Q&C employees and 20 PMC staff, guarantee all of the raw material can completely fulfill our high standard. Furthermore, 100% finished products have to be accepted 24*6 hours testing before delivery, all of the defective products must be absolutely replaced with qualified one.
6)Well-regulated Warehouse
We use latest ERP warehouse management system to keep all the raw materials, semi-finished products, finished products, and abandoned products etc. Are well-regulated, to guarantee high efficiency.
7)Strong Production Capacity
Maxphotonics covers 140, 000 m2 with 600 employees, 100 Q&C staff, our annual production capability is 20, 000 sets. We set 4 Offices in domestic China: Shanghai, Beijing, Fujian and Hunan. And has distributors all over world: In Germany, Korea, Taiwan, Japan, India, Italy. With strong production capacity, we guarantee not only the on time delivery but also the quality.
8)Reliable Warranty And After Sales Service
We guarantee 2 years 100% free warranty from the delivery time, 2 Years from the shipping date.
When the warranty period expires, we are also willingly to help our customers to cope with different problems. And our customers only need to bear the cost of components, and we guarantee the best price.
9)Application Areas
Our products have been widely used in Electronic parts and components' production, IT processing, Mobile communication, Automobile accessories, Hardware tools, Aerospace, Solar energy, Arts and crafts, Printing, Medical instrument. Our products can be used for marking, engraving, deep marking, Cutting, processing, drilling, welding on many different materials, such as carbon steel, carbon steel, stainless steel, aluminum, aluminium oxide, copper, gold, silver, zinc alloy, metal with zinc plated, metal with black e-coat, galvanized metal, plastic, ABS, PP, plastic with surface treatment, Ceramic, plastic keys, keyboard, mobile phone shell, iPad protection shell, iPhone shell, bar codes marking ect.
