Portable Combination Switched Sockets with RCD (56C)

Name: Portable Combination Switched Sockets with RCD (56C)
Brand: all-electronics-online.com
SKU: 730486985
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	56C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	56c
Type:	Distribution Metering Box
Structure:	Protection

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

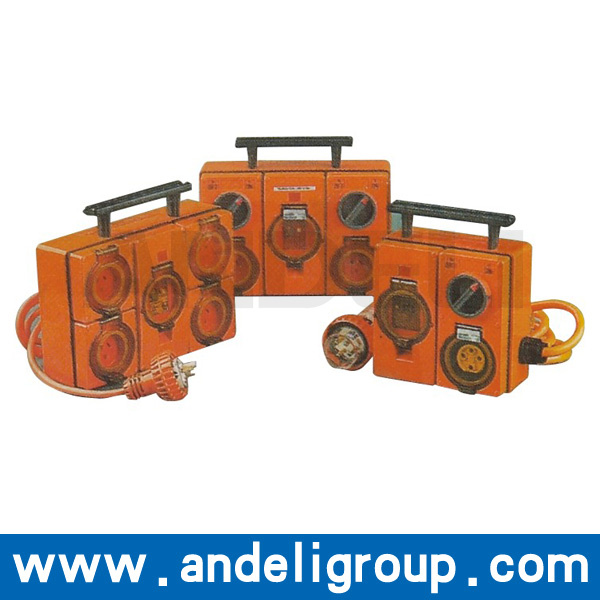

Ruggedly constructed, these portable units feature an easy to carry handle, a hanging facility for builder's poles and 3 metres of heavy duty flexible cord.

Refer to pgae 24 & 25 for explanation of pin configurations.

Note: Combinations with various pin configurations, current ratings and 100mA

Special order are available upon request

Catalogue Numer	No.of Phases	Ithe (A)	U e (V)	No.of Sockets	Tripping Sensitivity	Catalogue Number Matching Plug	Catalogue Number Angled Plug	Overall Dimensions (H)×(W)×(D)	Socket Config
56C310EL2P	1	10	250	2(3 flat pins)	30mA	56P310	-	243 × 294 × 105	A
56C315ELP	1	15	250	1(3 flat pins)	30mA	56P315	-	243 × 195 × 105	G
56C420ELP	3	20	415	1(4 round pins)	30mA	56P420	56PA420	243 × 195 × 105	L
56SO4ELP15	1	10	250	4(auto,3 flat pins)	30mA	56P310	-	243 × 294 × 105	A

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
