| Prod Model: |
OCT800-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
60mm X 80mm X 30mm |
| Interface: |
2 Input and 1 Output |
| Channels: |
20 Channel All-in-View Tracking |
| Operating Temperature: |
-20° to 55° C |
| Position Accuracy: |
10 M, 2D RMS |
| Velocity Accuracy: |
0.1 M/S |
| Default Datum: |
Wgs-84 |
| Hot Start: |
<1 Sec., Average |
| Warm Start: |
<36 Sec., Average |
| Cold Start: |
<36 Sec., Average |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multichannel |
| Model: |
Oct600 |
| Screen Size: |
Without Screen |
| Carrier Frequency: |
GSM 850/900/1800/1900MHz |
| Brand: |
Oneralarm |
| Certification: |
CE, FCC, RoHS |
Product Description

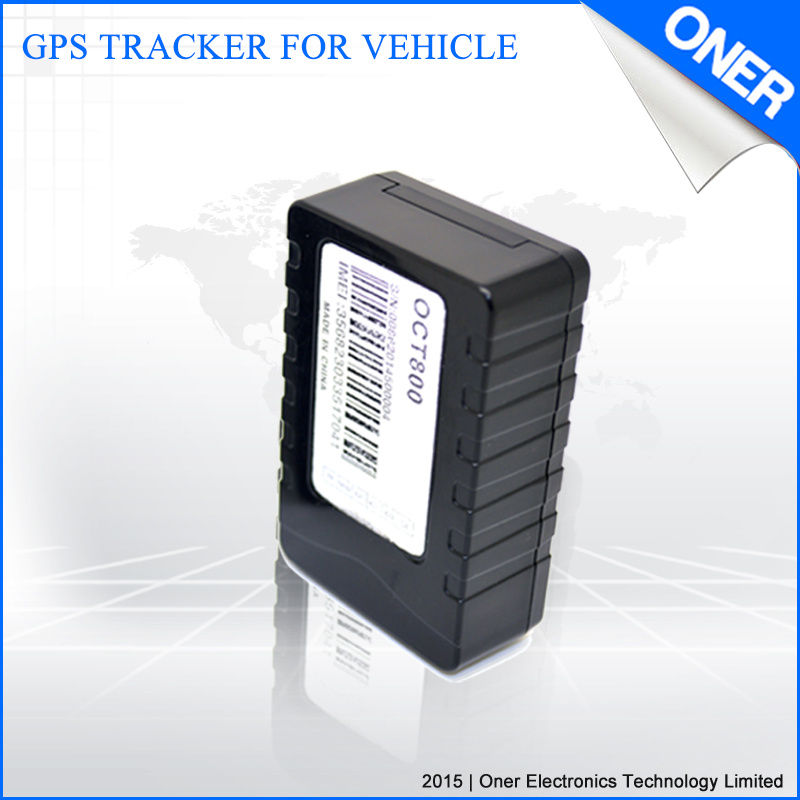

Portable gps tracker OCT800 for Fleet tracking
OCT800 is a GPS tracking device that utilizes the latest GPS, and Cellular technologies to provide
the location, direction, speed and history of your vehicle. You can track your devices and manage
your account via the website.
This device is cost-effect, and highly recommended to use in fleet management, vehicle tracking,
security, logistic and rental service companies, with its imported module, supports funcion exteni-
ons, like fuel monitoring, Firmware update OTA, etc, it is helpful in fleet management and security.
Tracking via SMS or GPRS (TCP/UDP)
Living location report
Tracking by time interval/distance
Geo-fencing control and alarm
Get detail address via SMS directly
External power cut alert
GOOGLE MAP link for location via SMS, Call
Remote engine/fuel cut
ACC Detection
SOS panic button, emergency alarm.
Mileage calculation report
Car door on/off status detecting (option)
Voice monitoring (option)
2 way communication (option)
Firmware update OTA (option)
Fuel monitoring (option)
Online Tracking System
OCT800 works with oneline tracking system ( http://onersystem.com login: Oner, password: 123).
In this system, user can control all the vehicles in real time, include real time tracking, history play
Back, route setting, driver management, POI, details reports, alarm setting, etc.
| Power supply | +6V - +35V / 1.5A |
| Backup Battery | 60mm x 80mm x 30mm |
| Weight | 145g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% (Non-condensing) |
| Frequency | GSM 850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -159Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 m, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | <36 sec., average |
| Cold start | <36 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 2 input and 1 output |
| LED | 2 LED lights to show working status. |
