| Prod Model: |
gps 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Battery: |
6000 mAh |
| Standby Time: |
60 Days |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| OEM Or Not: |
Yes |
| Certificate: |
CE ISO |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Shipment: |
by Express or by Air |
Product Description

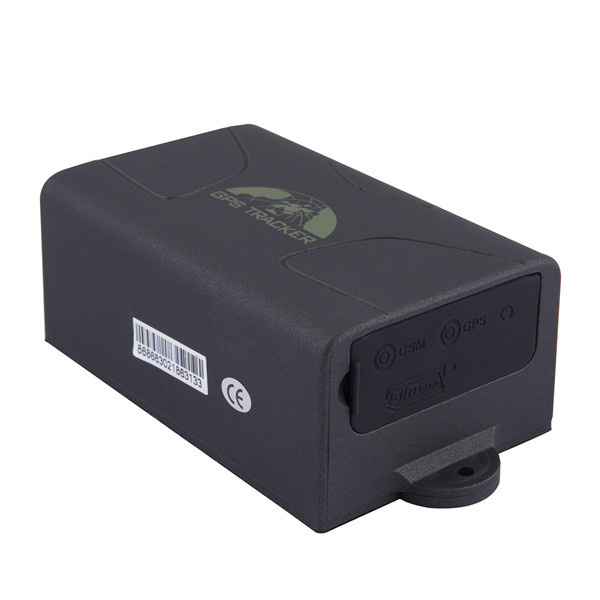

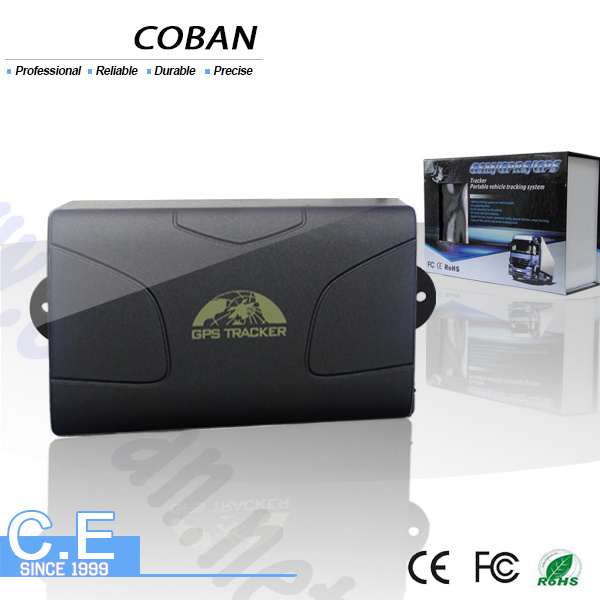

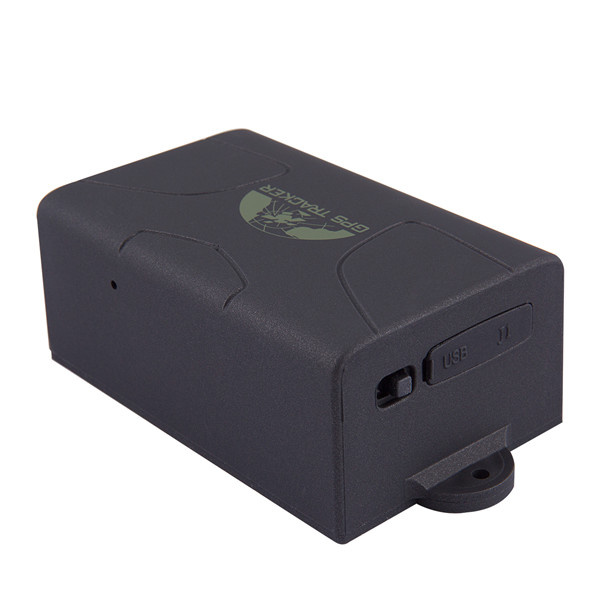

new vehicle and car gps tracker with 6000mA battery tk104 1.Introduction:
This tracker is a new product based on the GSM/GPRS network and GPS satellite positioning system,which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Main Features1.1 Waterproof shell
1.2 Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
1.3 Powerful magnets to absorb to vehicle firmly.
1.4 Real-time tracking, retrieve of lost vehicles, cargo.
1.5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
1.6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
1.7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
1.8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
3. Applications Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
4. Basic functions1.ON/OFF Function
2. Initialization
3.Change Password
4.Add and Delete Authorization
5.Single Locating
6.Auto track continuously
7.Automatic update positions of vehicle turns
8. GPS drift suppression
9.Get location in absolute street address
10.Location Based Service (LBS)
11.Check the Vehicle State.
12.Check IMEI
13. Terminal (local) Time Setting
14.Monitor (Voice Surveillance)
15.Data logging
16.Data Load
17.Forward the third parties' message
18.Charges Inquiry
19.Cut off the Oil and Power System
20. Resume the Oil and Power System
21.Tracker's Hardware Resetting
22.Sleep Mode
23.Alarm Function and settings
23.1 . Geo-fence
23.2.Multi-area management
23.3. Movement alarm
23.4.Over Speed Alarm
23.5.Accident alarm (Option)
23.6.Shock Sensor Alarm
23.7.SOS
23.8. Low battery alarm
23.9.Power off alarm
23.10. GPS blind Spot alert
24.TCP/UDP switch
25.Configure parameters by USB
26.GPRS Setting
27.Set up monitor center number
5. Specifications
Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |

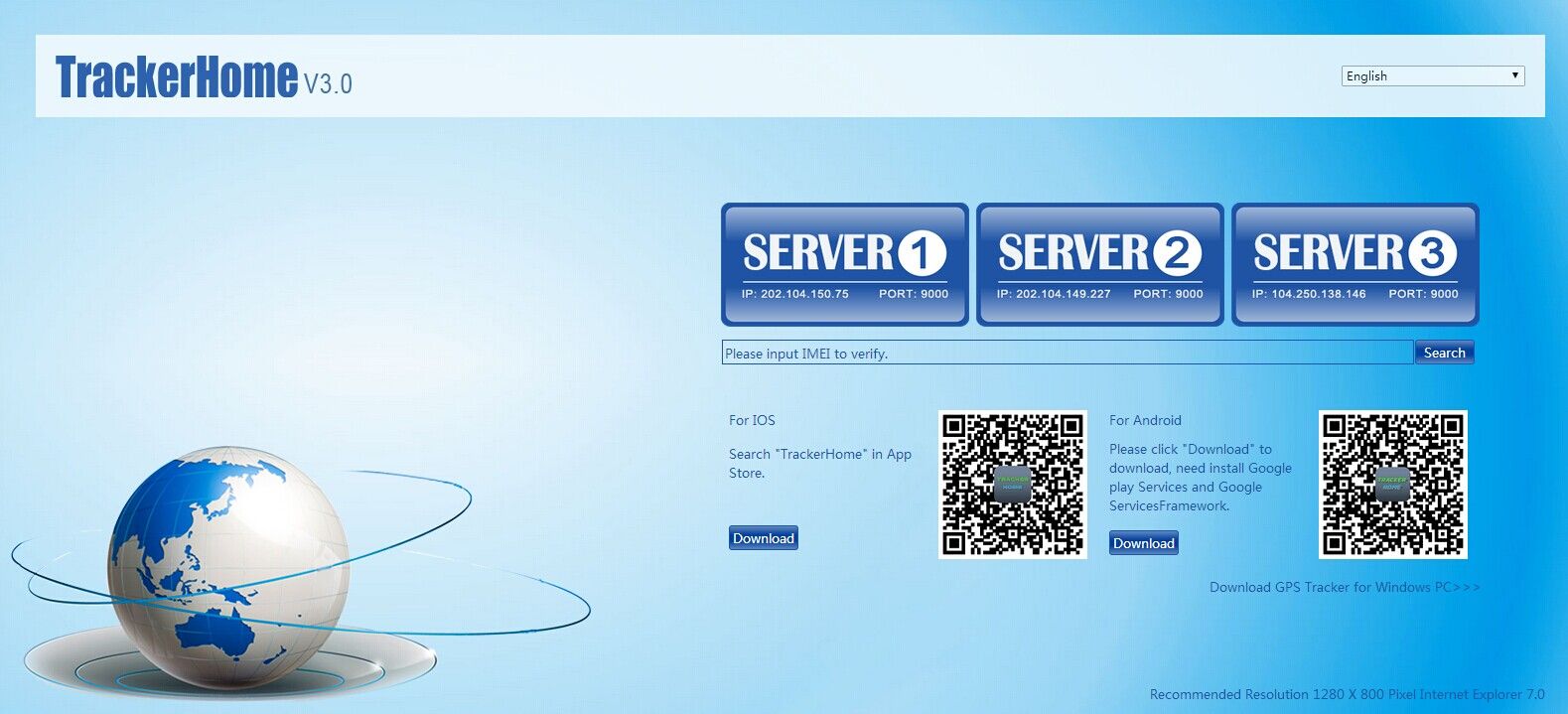

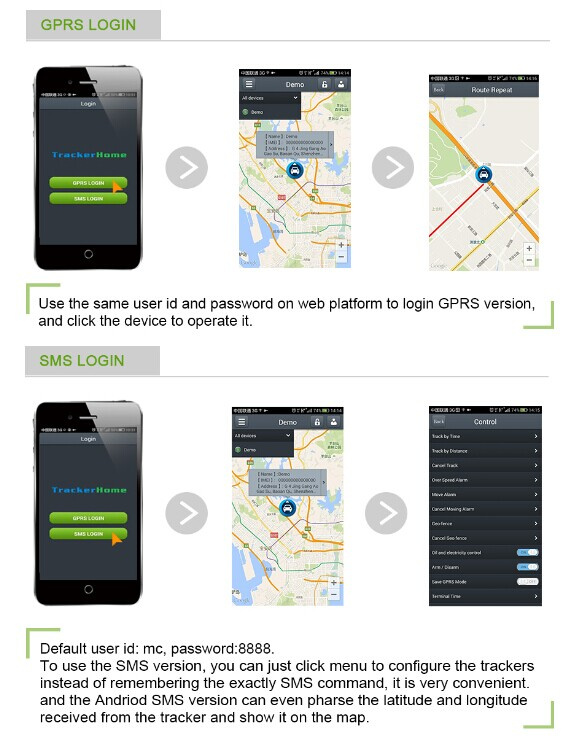

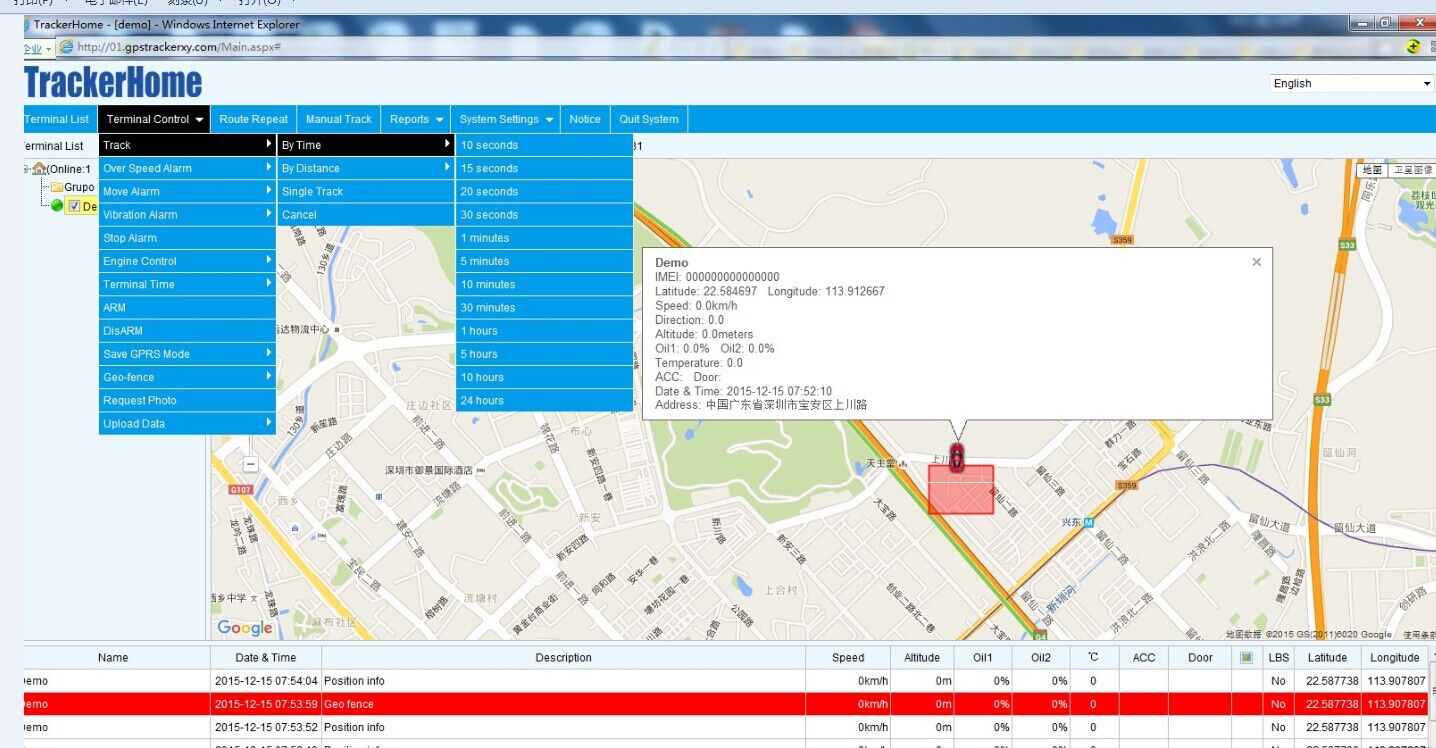

6. gps tracking by web platform and APP for car ,vehicle,etc www.gpstrackerxy.com server 1 user: demo password: 8888
