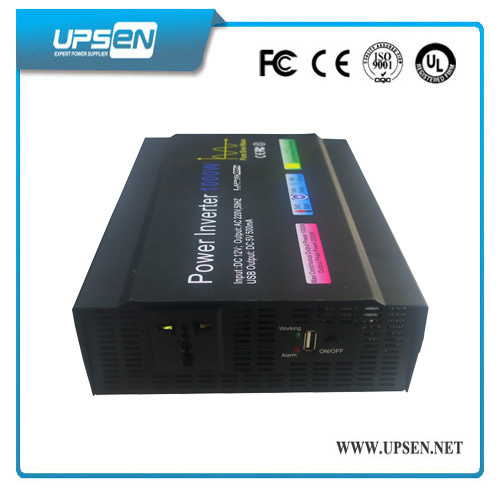

Portable Mini 12VDC to 220VAC Power Inverter

Name: Portable Mini 12VDC to 220VAC Power Inverter
Brand: all-electronics-online.com
SKU: 777982985
Availability: InStock
Rating: 4.9 (61 reviews)

Price:	US $ 1-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	IS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz/60Hz(Optional)
Soft Start:	Yes
Td/AC Regulation:	Thd<3%
Warranty:	12 Months
Phase:	Single
Power Source:	Electric Power
Application:	Home Theater
Brand:	Upsen

Product Description

Portable Mini 12VDC to 220VAC Power Inverter
Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)

Key Features:
1:Free installation, easy to operate
2:Built-in high speed cooling fan
3:Pure sine wave output, available for sensitive load
4:Transformaer-less design and compact in size
5:Input and output are completely independent.
6:High-precision voltage stability technology
7:Excellent performance and high conversion efficiency
8:high frequency technology light and small
9:Low noise design, strong anti-interference, low radiation.
10:High frequency design, higher transfer efficiency, low standby power loss, long standby time
11:CPU controled intelligent cooling fan, greatly extend life time of the fan, more efficiency and save energy

Application
Home,office,Monitoring,fan,Automation systems,Data processing systems,TV ,Computer room

Data center,Precision instrument,Commercial facility,Intelligent equipment,Street Lighting,Small town power system etc.

Technical Specification

Model		IS300	IS500	IS600	IS800	IS1000
Rated power		300W	500W	600W	800W	1000W
Peak power		600W	1000W	1200W	1600W	2000W
Start method		Soft start
DC input	Rated input voltage	12V/24V/48V(optional)
AC Output	Voltage	100V/110V/220V/230V/240V(optional)
	Frequency	50HZ/60HZ(optional)
	Waveform	Pure Sine Wave
	Maximum DC	110%
	loads output power
	Total Harmonic Distortion	THD≤2%
	Rated output efficiency	>85%
Protection	High input voltage shutdown	15.0V, automatically shutdown, alarm twice
	Low input voltage shutdown	10.0V, automatically shutdown, alarm twice
	Low input voltage alarm	10.5V, no power off, alarm once
	Over temperature protection	When the temperature of internal heat sink is above 80ºC, it will shutdown automatically and alarm three times
	Short circuit protection	Shutdown, alarm five times, restart automatically
	Overload	Shutdown, alarm four times, restart automatically
	protection
	Reverse Input	Quick-break fuse
Environment	Temperature	-10 - 40ºC
	Humidity	0%-95%
Noise of the fan		<55dB
Insulation resistance		EN50081-1/EN55022
Insulating strength		EN50081-1/EN55022
Weight (Kg)		1.16		1.92	3
Size		23511565		29513272	32018572
WDH(mm)
*Specifications are subject to change without prior notice.
