| Prod Model: |
104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Band: |
850/900/1800/1900MHz |
| Network: |
GSM/GPRS |
| Warranty Time: |
1 Year |
| Waterproof: |
Yes |
| Feature: |
Long Time Battery Life Standby 60 Days |
| For: |
Car, Trucks |
| Delivery Time: |
2-3 Days |
| Certificate: |
CE FCC ISO |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Tk104b |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description

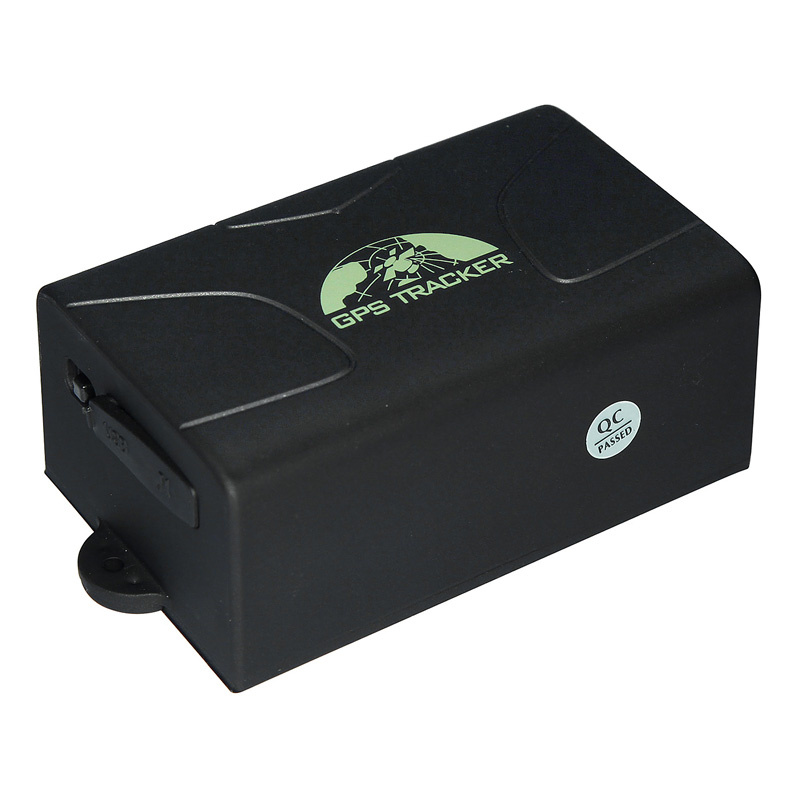

tk104 gps tracker with 6000 mAh powerful battery,with magnet hidden tracking,long time tracking!
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by several ways.provide monitor software and global map.real-time track through the monitor software in your pc;track through your PDA cell phone and google earth.
1.Features & Functions
1.Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 100 days.Especially for trucks which long time cargo transportation.
3.Powerful magnets to absorb to vehicle firmly.
4.Real-time tracking, retrieve of lost vehicles, cargo.
5.Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6.Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8.Support external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9.Track with limited times upon time interval
10.Track with unlimited times upon time interval
11.Smart track upon time and distance interval
12.Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
13.Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
14.Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
15.Low batttery alarm function
16.Remote Engine-stop and Resume.
17.Check the vehicle status
18.Multi area management
19.Automatic update positions of vehicle turns
20.Data logging
21.Forward third parties message to authorized phone number and charge inquiry
22.Configure parameters by USB
23.Less GPRS traffic
24.GPS drift suppression
2. Applications
Application: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Items include:
GPS Unit(Magnet included)
AC adapter/Harness
Relay for stopping engine
External GSM antenna
External GPS antenna
Waterproof bag
Cigarette lighter car charger
manual | package
Multiple Tracking Ways:

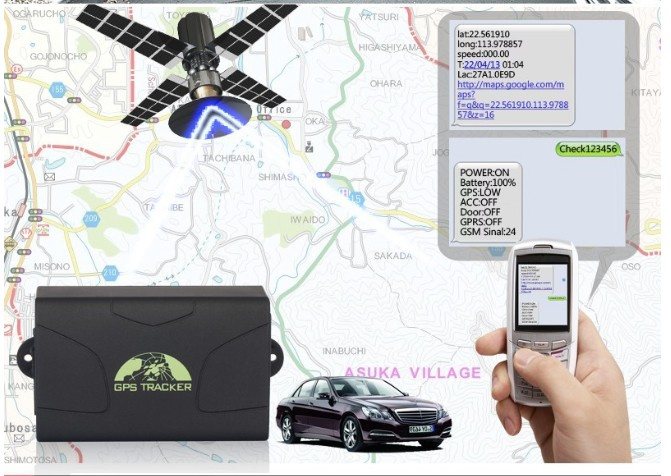

*Calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the location on the google map.
*Real track by our own developing ios app and andriod app.
*PC based free tracking software.
*Web based online tracking system our server www.gpstrackerxy.com. (demo id:demo,password:8888)
