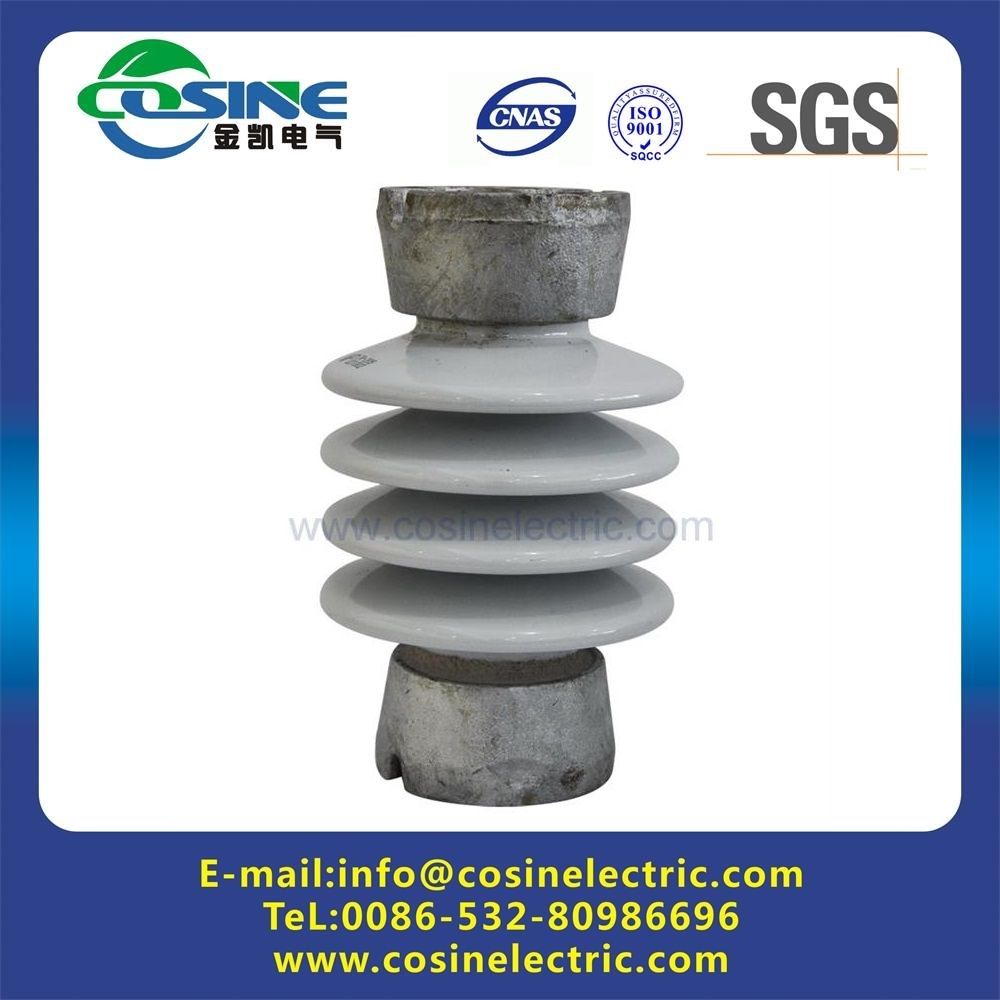

Post Insulator (TR205) ANSI Approved

Name: Post Insulator (TR205) ANSI Approved
Brand: all-electronics-online.com
SKU: 683458032
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TR205, TR208, TR210, TR214, TR216
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Tr205
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	ANSI Tr205 Post Insulator

Product Description

Name: Post insulator
Specification: ANSI TR205

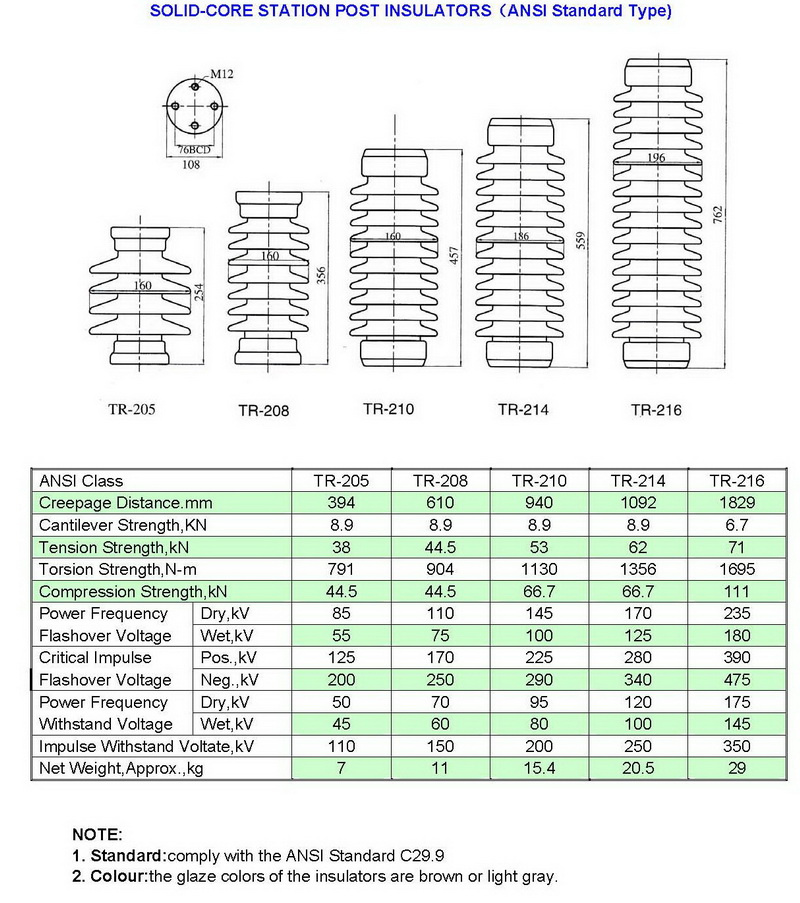

Style: Solid-Core Station Post Insulators
Standard: Comply with the ANSI standard
Colour: Brown or light gray or meet client`s requirment

ANSI Class		TR-205
Creepage Distance.mm		394
Cantilever Strength,KN		8.9
Tension Strength,kN		38
Torsion Strength,N-m		791
Compression Strength,kN		44.5
Power Frequency	Dry,kV	85
Flashover Voltage	Wet,kV	55
Critical Impulse	Pos.,kV	125
Flashover Voltage	Neg.,kV	200
Power Frequency	Dry,kV	50
Withstand Voltage	Wet,kV	45
Impulse Withstand Voltate,kV		110
Net Weight,Approx.,kg		7
Standard Specification:ANSI C29.9

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
