| Prod Model: |
PVTOK(S), POT10K(S) |
| Phase: |
Single Phase |
| Type: |
High Frequency, Online, True Double Conversion |
| Protection: |
Full Protections |
| Application: |
Power Supply Areas |
| Classification: |

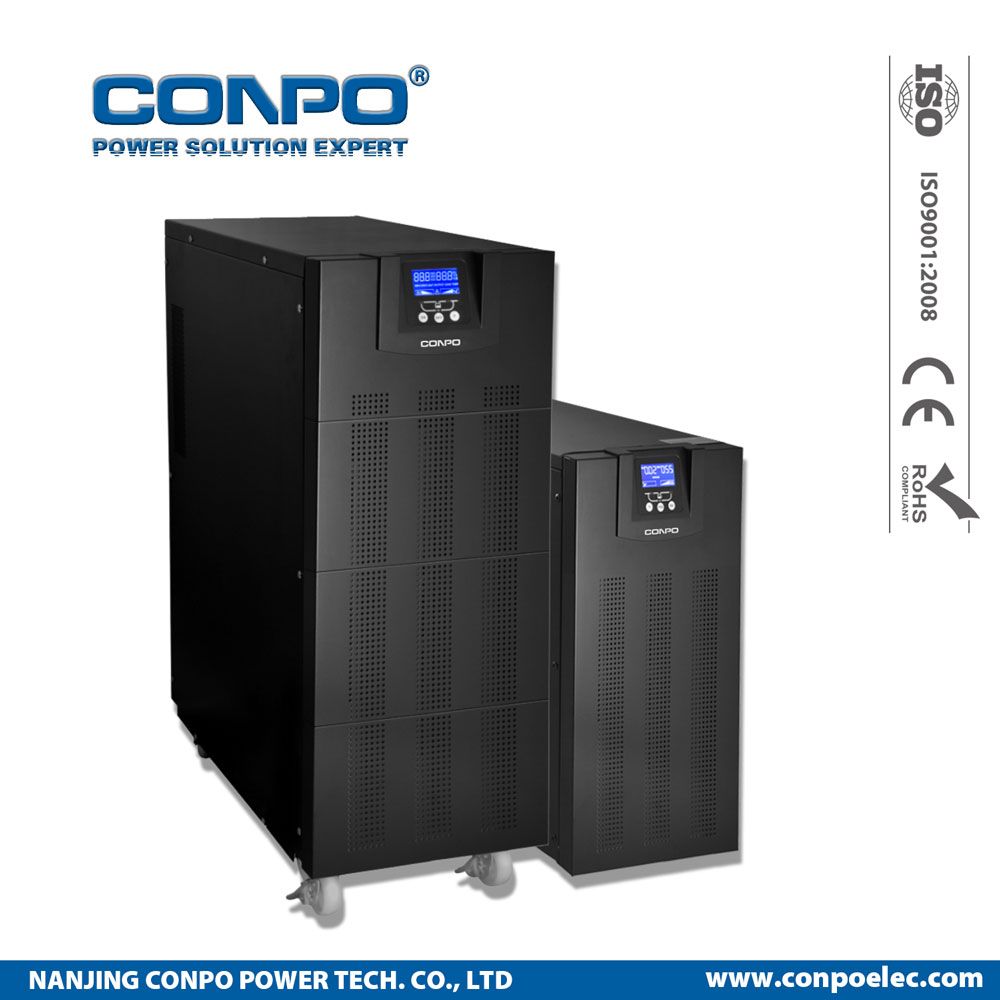

Tower Online High Frequency UPS |
| Standby Time: |
Long-Active UPS Machine/Standard UPS Machine |
| Equipment Mode: |
Power Supply Areas |
| Brand: |
Conpo |
Product Description

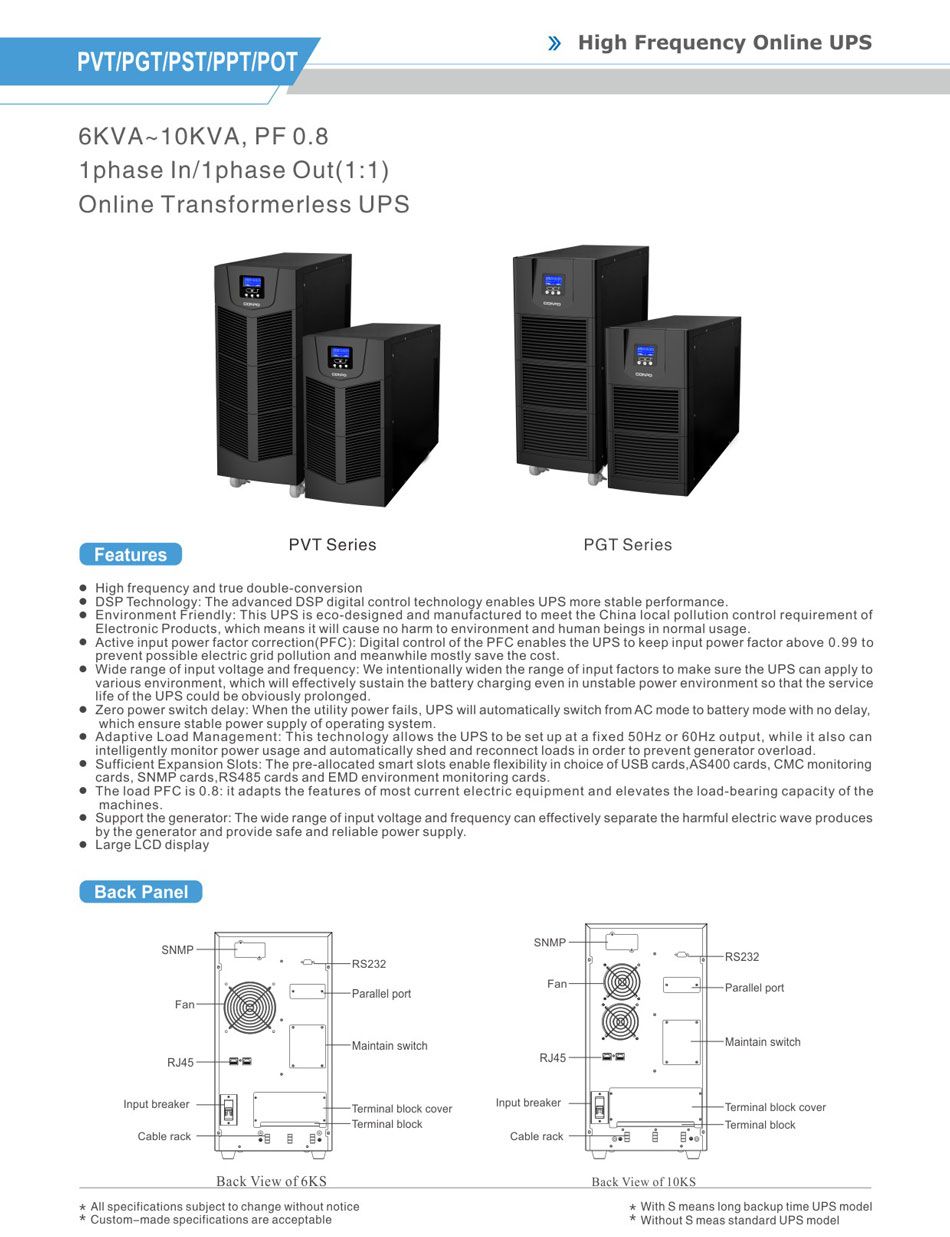

1. High frequency and true double-conversion
2. DSP Technology: The advanced DSP digital control technology enables UPS more stable performance.
3. Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of
Electronic Products, which means it will cause no harm to environment and human beings in normal usage.
4. Active input power factor correction(PFC): Digital control of the PFC enables the UPS to keep input power factor above 0.99 to
prevent possible electric grid pollution and meanwhile mostly save the cost.
5. Wide range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to
various environment, which will effectively sustain the battery charging even in unstable power environment so that the service
life of the UPS could be obviously prolonged.
6. Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay,
which ensure stable power supply of operating system.
7. Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can
intelligently monitor power usage and automatically shed and reconnect loads in order to prevent generator overload.
8. Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring
cards, SNMP cards,RS485 cards and EMD environment monitoring cards.
9. The load PFC is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the
machines.
10. Support the generator: The wide range of input voltage and frequency can effectively separate the harmful electric wave produces
by the generator and provide safe and reliable power supply.
11. Large LCD display
