Potential Relay with UL Approval for Air Condition Pump

Name: Potential Relay with UL Approval for Air Condition Pump
Brand: all-electronics-online.com
SKU: 819671145
Availability: InStock
Rating: 4.7 (60 reviews)

Price:	US $ 2-3.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATR563A
Color:	Black
Other Services:	ODM OEM
Delivery Date:	35 Days After Deposit
Coil Insulation:	Class B

Product Description

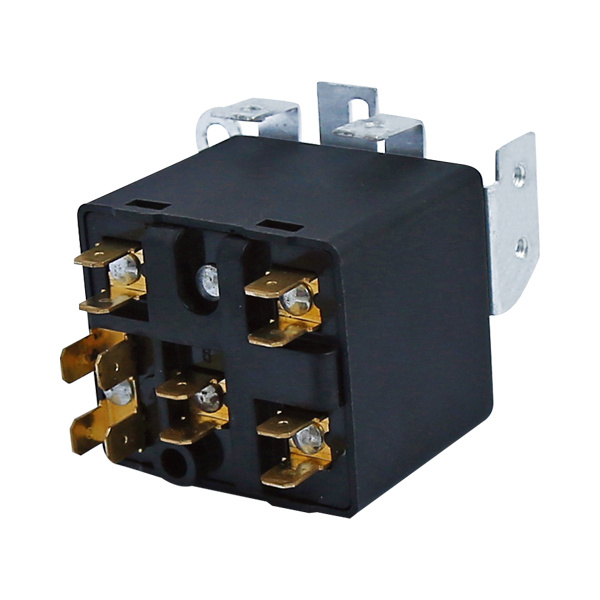

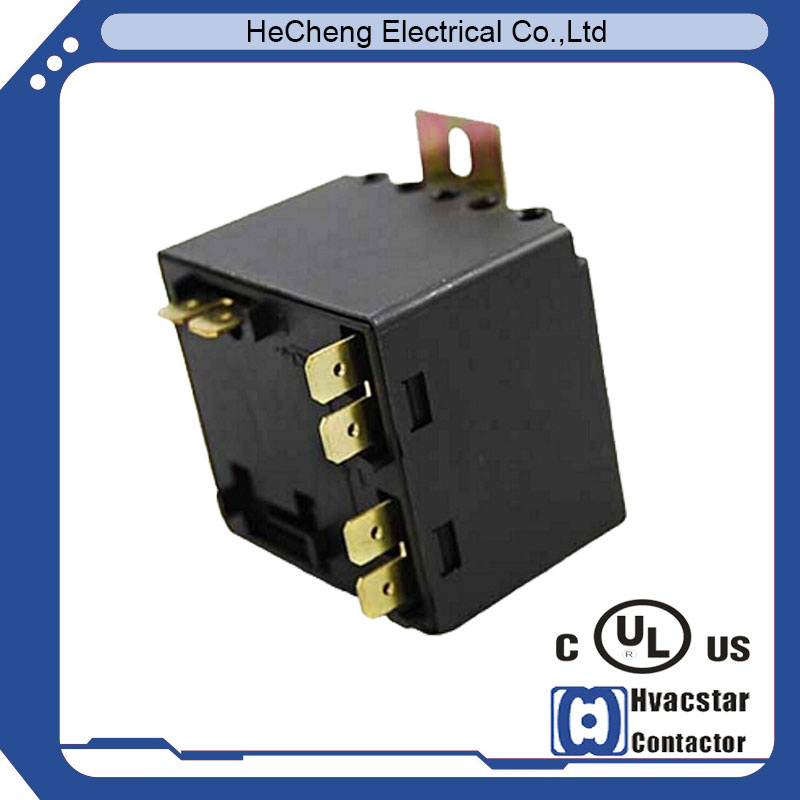

Potential Relay

Potential or "voltage" relays are used with single-phase capacitor-start/capacitor-run motors, which need relatively high starting torque. Their main function is to assist in starting the motor.

ATR potential relay is designed to start single-phase motors which empoly both start and run capacitor for high starting torque.

Applications:

Air conditioners
Heat pumps
Water heaters
commercial refrigeration
Other locations where a local disconnect is required

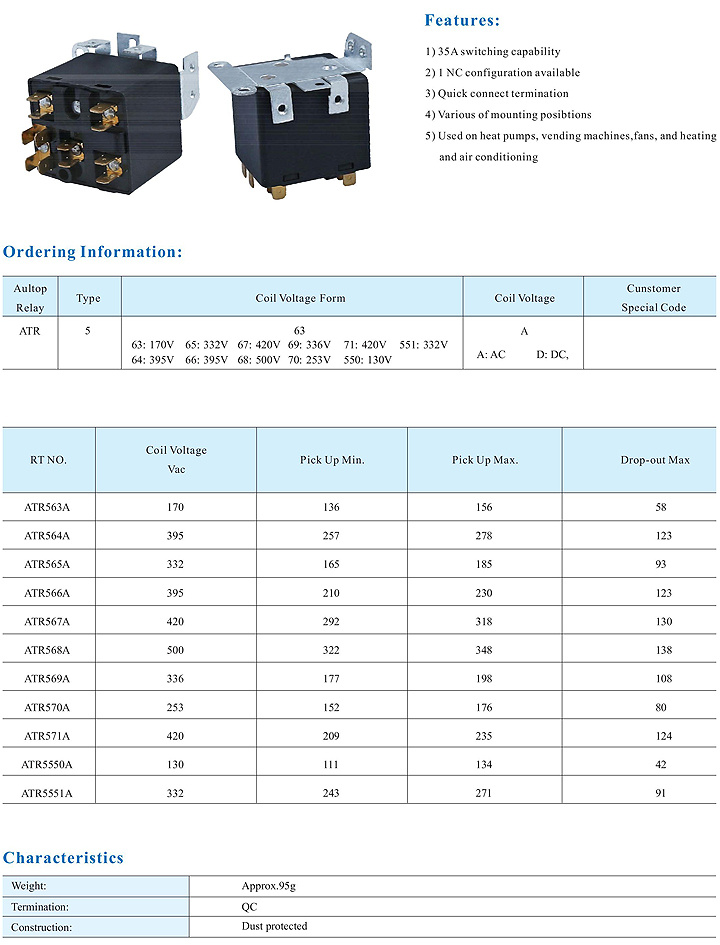

Specifications:

Continuous Coil Voltage	170
Pick-Up Min.	140
Pick-Up Max.	153
Drop Out Max.	65
Coil Data DC Resistive	1399
Coil Data Nom. VA	5
Coil Data MA	29
Coil Data Inrush VA	10
Temperature Range F	40F-130F
Class Insulation	B

Replaces:

White-Rodgers	90-63
Mars	19002

Features:
temperature range: 40 °F to 130°F
Class B insulation
Continuous duty
UL approved

Why choose us:
Fast deliveryCompetitive price
18-year manufacturing&export experience
Attending many kinds of international exhibition
Good after-service
Quality reliability and long product life.
Continuance service and support
OEM/ODM available

FAQ
       Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
Q6: How about delivery time of the order?
          A: 15-20 days after getting deposit.
Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .

Contact Us:

Ms.Betty Hu

M:+86 18267833685

24 hours online. Please feel free to contact me.

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
