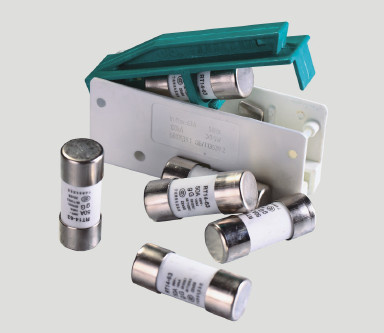

Powder-Filled Cartridge Cylindrical Cap Fuse
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
X1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Current Fuse |
| Breaking Capacity: |
High |
| Usaga: |
Low Voltage |
Product Description
Scope of Application
Rt14 series powder-filled cartridge cylindrical cap fuse (hereinafter referred to as fuse) is suitable for power distribution equipment of industrial electrical device with AC 5OHz/6OHz, rated voltage 380V/400V, rated current up to 630A and below, for the protection of
Standard:
GBJT 13539.2-2008, 1EC60269-2:2006
Structure Characteristics:
Fuse is made up of fuse-link and fuse holder. Its holder case is made from heat resisting material. It has good electrical performance. The Fuse-link uses high strength porcelain tube, high quality filler and high precision copper belt.
Main Technical Parameters
| Rated Voltage (V) | Range of Breaking and Usage Category | Fuse-link Dimension | Fuse-link Rated Current (A) | Fuse-link Consumed Power (W) | Over Current Selectivity | Holder Rated Current (A) | Power Handing (W) | Case Protection Class | Rated Breaking Capacity (kA) |
| AC380 | gG | 10*38 | 2,4,6,8,10,16,20 | S3 | 2:01 | 20 | ≥3 | IP20 | 100 |
| 14*51 | 2,4,6,8,10,16,20,25,32 | S5 | 32 | ≥5 |
| 22*58 | 10,16,20,25,32,40,50,63 | S9.5 | 63 | ≥9.5 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
