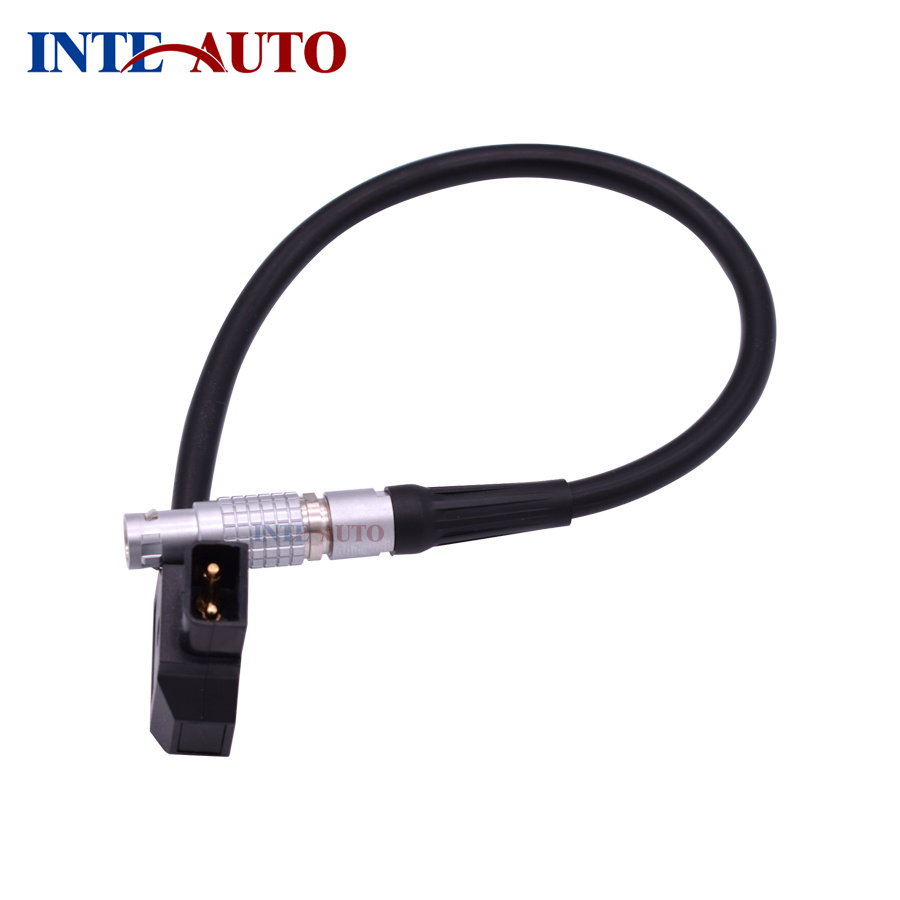

Power Cable with D-Tap Connector 6 Pins Circular Plug

Name: Power Cable with D-Tap Connector 6 Pins Circular Plug
Brand: all-electronics-online.com
SKU: 734468512
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	US $ 15-20/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	INT13-FGJ. 1B. 306
IP Degree:	IP50
Contacts:	Soldering
Insulator Material:	PPS
Sleeve Material:	PSU
Sample:	Free
Number Of Contacts:	6 Pins
Shipping Way:	by TNT DHL FedEx
Lead Time:	Inventory
Comany:	Manufacturer/ Factory

Product Description

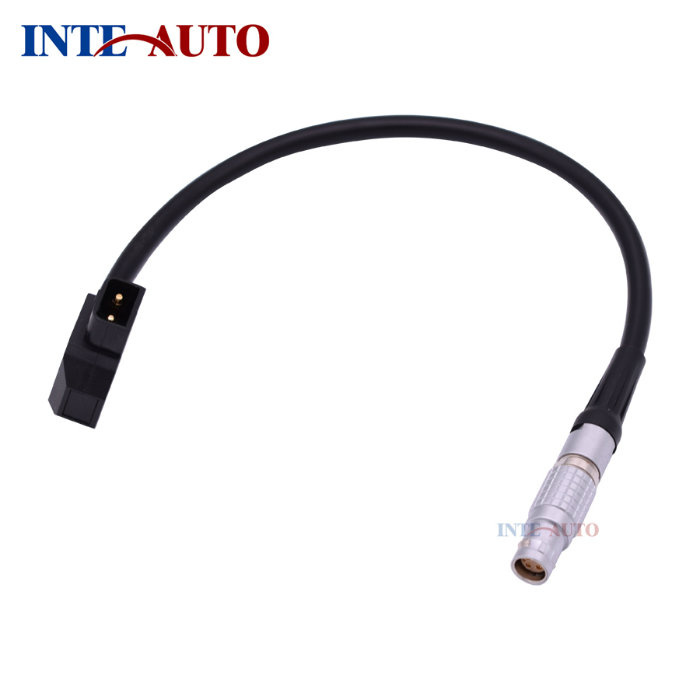

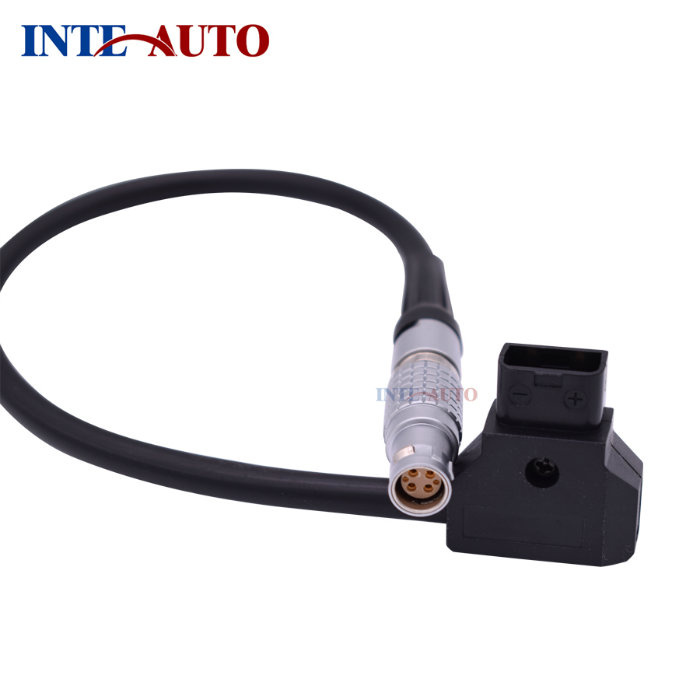

1B 6 pins Straigh plug with 1 Meter cable
Model(INTFGG).Series(00…3B).Key(G).Straight Plug, Contacts. cable collet

B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system («G» key standard)of similar connectors for connector alignment
4.360° screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder, print contacts (straight or elbow)
7.High packing density for space savings

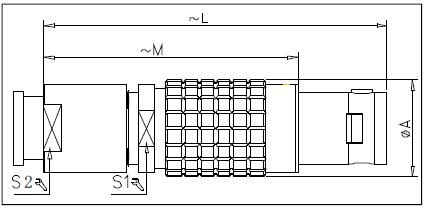

Product size:

Reference		Dimension
Model	Series	L	M	A	S1	S2
FGG	00	36.5	28.5	6.4	5.5	6
FGG	0B	35	25	9.5	8	7
FGG	1B	42	32	12	10	9
FGG	2B	49	37	15	13	12
FGG	3B	56.5	41.5	18	15	15

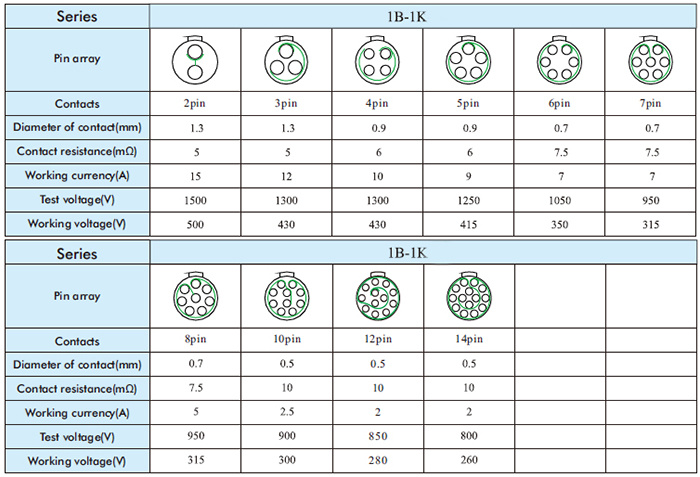

Insulator specs for B series:

Product Details:

Technical characteristics:
Mechanical and Climatically
1.Endurance:> 5000 mating cycles;
2.Humidity :Up to 95% at 60 ºC;
3.Temperature range:-45 ºC, +125 ºC;
4..Resistance to vibration :15 g[10 HZ-2000HZ];
5.Shock resistance:100 g ,6 MS;
6.Salt spray corrosion test :> 48h;
7.Protection index (mated) :IP50.

Industry Application:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.

Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30Pins

INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.

INTEAUTO Certifications &Contact INFO

Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.

Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen

INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.

Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
