Power Cord (SPT 1/2/3)

Name: Power Cord (SPT 1/2/3)
Brand: all-electronics-online.com
SKU: 709308795
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPT 1/2/3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC & AC
Application:	Home Appliance
Certification:	UL

Product Description

Power cable
Model: SPT 1/2/3

Techincal data

File NO: E313195
Approval: UL
Standard: UL62
Rated Voltage: 300V
Temperature Range: 60 degree to 105 degree

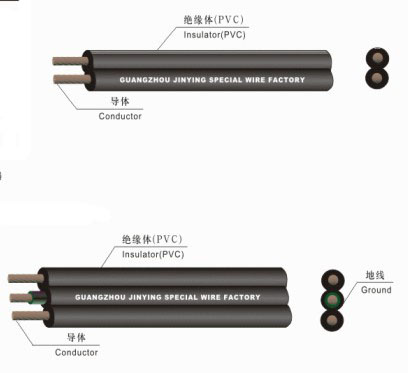

Conductor: Copper twisted wire
Insulator: PVC
Flammability Test by UL /cUL VW-1 insulator.

Application:
SPT-1 and SPT-2: For Household applicances
Load Conditions: SPT-2 is better than SPT-1
SPT-3: For Refrigerators or Room Air Conditioners.

Type	NO of Conductor	Conductor			Insulator		Jacket		Amp Rating
Type	NO of Conductor	AWG	Sectional Area (mm2)	Construction (NO/mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Amp Rating
SPT-1	2	18	0.82	32/0.18	-	-	0.76	2.70x5.30	10A
SPT-1	3	18	0.82	32/0.18	0.76	2.15	0.76	3.00x8.70	10A
SPT-2	2	18	0.82	32/0.18	-	-	1.14	3.50x6.90	10A
	2	16	1.31	50/0.18	-	-	1.14	3.70x7.55	10A
	3	18	0.82	32/0.18	0.38	2.15	1.14	3.60x9.50	10A
	3	16	1.31	50/0.18	0.38	2.40	1.14	4.20x10.60	13A
SPT-3	2	18	0.82	32/0.18	-	-	1.52	4.20x8.40	10A
		16	1.31	50/0.18			1.52	4.50x9.00	13A
		14	2.08	41/0.254			2.03	5.80x12.80	15A
		12	3.31	45/0.31			2.41	7.00x14.00	20A
		10	5.43	72/0.31			2.79	8.60x14.80	25A
	3	18	0.82	32/0.18	0.38	2.15	1.52	4.30x11.40	10A
		16	1.31	50/0.18		2.40	1.52	4.50x12.20	13A
		14	2.08	41/0.254		2.80	2.03	5.80x14.80	15A
