Power Distribution Box Concealed Mounted
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TSM 4 Way Distribution Box |
| Product Name: |
Power Distribution Box Concealed Mounted |
| Types Of Mounted: |
Open or Concealed Mounted |
| Material: |
Insulation, Fire-Proof Type Refractory Material |
| Ways Of Distribution Box: |
W Way to 36 Ways |
| Delievery Time: |
Within 15 Working Days After Receive The Deposit |
| Voltage: |
220V/380V |
| Color: |
White |
| Type: |
Power |
| Structure: |
Fixed Board |
| Certification: |
Ce |
| Size: |
146*200*94mm |
| Shell Material: |
ABS/PC |
| Brand: |
Meanray |
Product Description

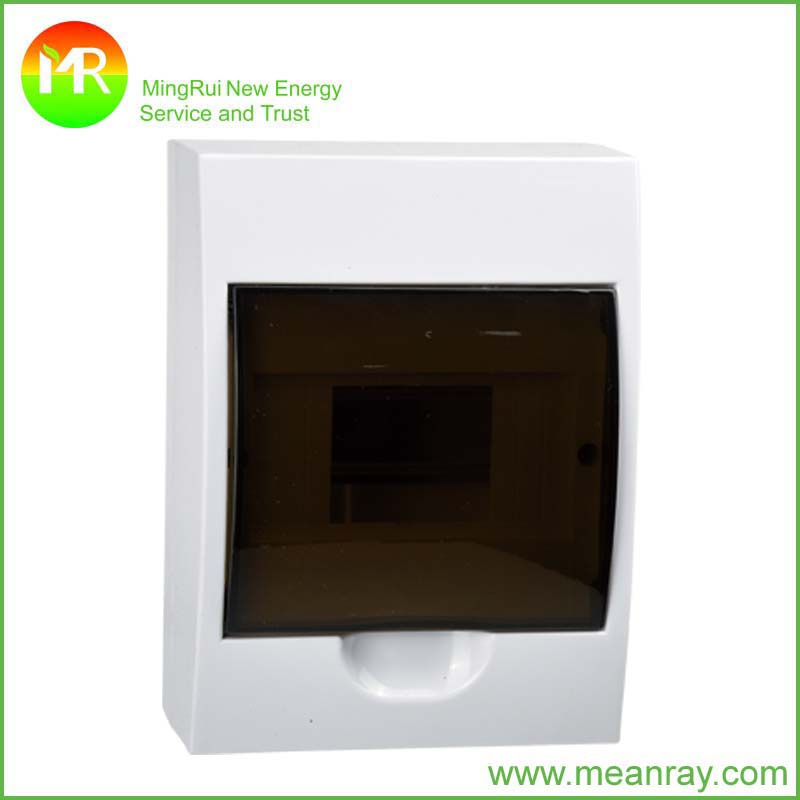

Power Distribution Box Concealed Mounted
Power Distribution Box Concealed Mounted Description:
Power Distribution Box Concealed Mounted is suitable for distribution control of modern buildings,such as large stores,guesthouse,stations,commercial net points,laboratories,factories and enterprises,used in AC 50-60hz,below 500V illuminating and mini power controling circuit as over current,overload and short circuit protection and frequency switch under the rated working state,2way to 36ways are available.
Power Distribution Box Concealed Mounted Technical Data:1)complete with earth and neutral bars together with neutral link wire
2)Rated current:max.125A
3)Material:fire-resistant/ABS
4)Protection degree:IP40
TSM surface series Electrical Power distribution box wtih CE approval

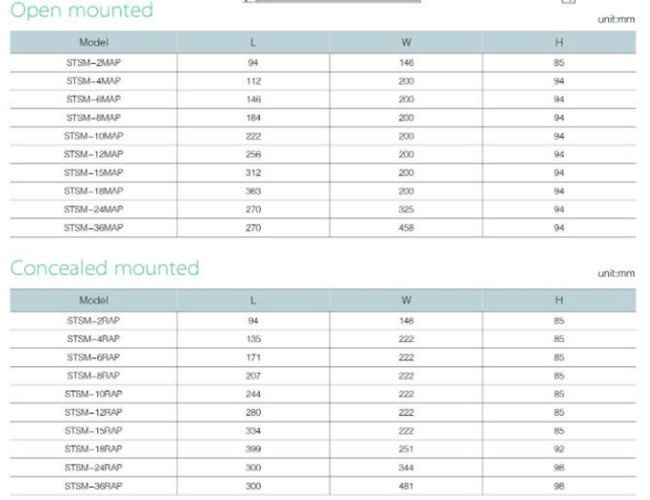

Power Distribution Box Concealed Mounted Dimension:

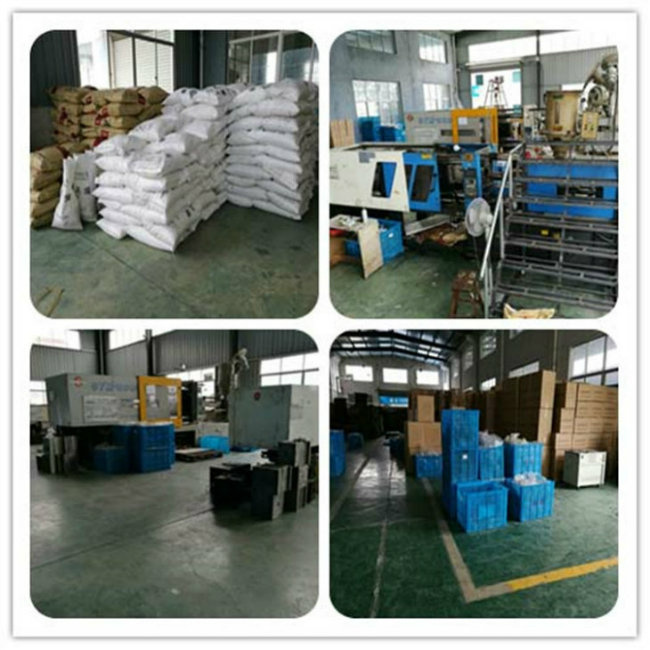

Power Distribution Box Concealed Mounted Workshop:
Power Distribution Box Concealed Mounted Advantage:a.Waterproof Distribution Box weighs approximately 1/4 the weight of an iron box and can be easily installed or moved.
b.The product is free from corrosion, carries superior insulation.
c. Material:The Product has passed waterproof and dust-proof carried out under rigid quality standards.(IP 40).
d. Special Requirement:OEM service available.
e. Usage: convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal
Power Distribution Box Concealed Mounted Certificates:
Power Distribution Box Concealed Mounted Shipping:
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.
The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
