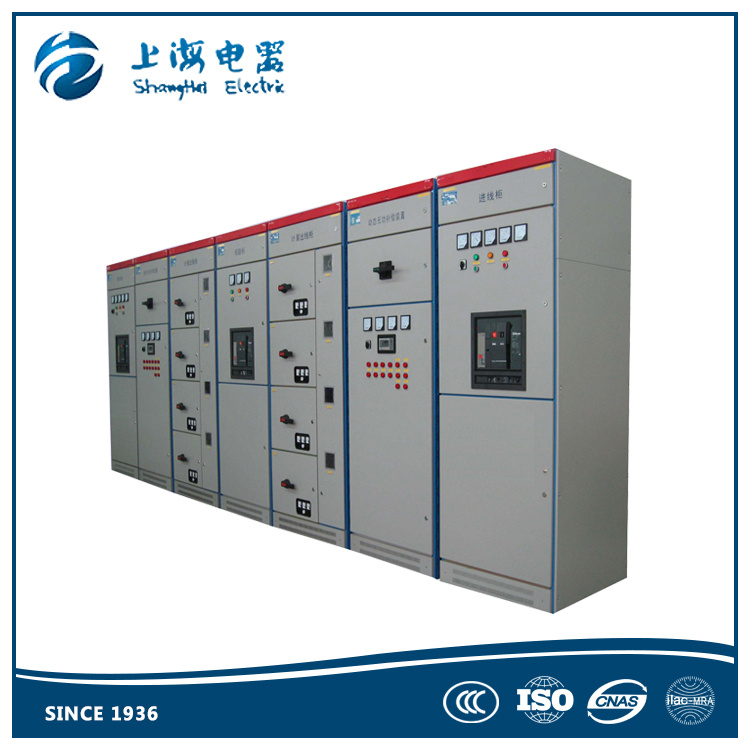

Power Distribution Cabinet Low Voltage Switchgear

Name: Power Distribution Cabinet Low Voltage Switchgear
Brand: all-electronics-online.com
SKU: 793853865
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GCK
Type:	Power
Form:	Partly-welded Type
Operation Voltage:	Low Voltage
Size:	1 Uint
Application Range:	High-rise Buildings
Shell Protection Grade:	IP23
Brand:	Shanghai Electric

Product Description

GCK Series Drawout Type Low Pressure Voltage Switch Board are used forElectric motoring control system, and power distributing center. They are applied toPower stations, electric substations, buildings, edifices, airports, hospitals,Industrial and mining establishments as three-phase 50Hz, voltage 380V and as follow electric system suited for the electricity, the feed, the lighting,The motor control and the power compensate. It conforms to the GB7251-97,ZBK36001-89 and IBC439-1 standards.

Product advantage

The series has high breaking capacity, dynamic thermal stability, advanced structure, reasonable, practical electric scheme, series resistance, versatility, any combination of program modules, a cabinet to accommodate the loop more, save area, beautiful appearance, high degree of protection, safe, reliable, easy maintenance, etc.

Using Condition:

1. General Temperature: Not over than +40, Not less than -5. Equal Temperature35.
2. Altitude height not over than 1000M
3. Relative Humidity=90% (+25)
4. Earthquake frequency not over 8 degree
5. Without dust, fire, Corrosion or other dangerous items around

technical parameters

Rated frequency(HZ)		50
Rated working voltage(V)		380 630
Rated insulation voltage(V)		750
Rated current(A)	The level of bus	630-3150
	Vertical Bus	600
Rated short time withstand current	The level of bus	80KA(RMS) 1 second
	Vertical Bus	50KA(RMS) 1 second
When the rated peak withstand current	The level of bus	176KA
	Vertical Bus	110KA
Main circuit connector(A)		63,200,400
Auxiliary circuit connector(A)		10
One minute power frequency withstand voltage(V)		2500
The maximum capacity of the motor control(KW)		155
Operation		Locally, remote, automatic
Dimensions H * W * D	PC.MCC cabinet after qualifying	2200x600x1000(800)
	MCC cabinet the right cable outlet chamber	2200x800x500
	PC.MCC cabinet or cabinet Right after qualifying	2200x800x1000(800)
	PC line counters and Liaison Cabinet	2200x1000(800)x1000

Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.

Members of goverment mechanical ministry

Key enterprises of Shanghai

We are one of the earliest manufacturer of electrical equipment in China

We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company

Our company was ISO9001/ISO14001/OHSAS18001 approval

Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.

After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch

Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.

We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
