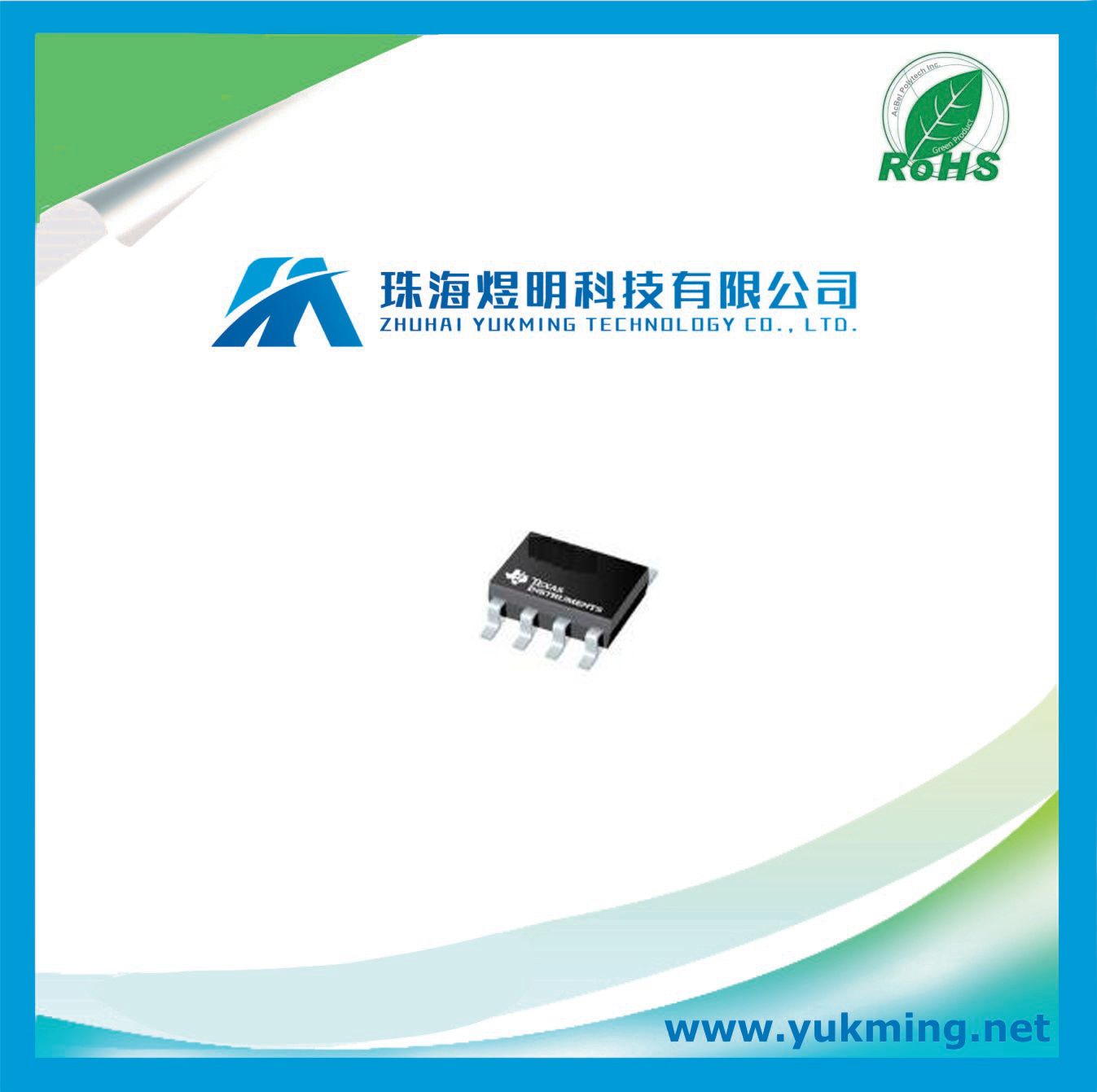

Power Driver IC Intergrated Circuit Lm5109bmax/Nopb

Prod Model:	LM5109BMAX/NOPB
Driver Type:	High and Low Side
Driver Configuration:	Non-Inverting
Peak Output Current (a):	1(Typ)
Number Of Drivers:	2
Minimum Operating Supply Voltage (V):	8
Maximum Operating Supply Voltage (V):	14
Input Logic Compatibility:	Ttl
Maximum Rise Time (Ns):	15(Typ)
Maximum Fall Time (Ns):	15(Typ)
Operating Temperature Range:	-40 to 125 Degree C

Product Description


We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Gate and Power Drivers

DESCRIPTION
Driver 90V 1A 2-OUT Hi/Lo Side Half Brdg Non-Inv 8-Pin SOIC T/R

Texas Instruments' LM5109BMAX/NOPB power driver will help with fast switching within your circuit. This device has a maximum propagation delay time of 32(typ) ns. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a minimum operating supply voltage of 8 V and a maximum of 14 V. This gate driver has an operating temperature range of -40 °C to 125 °C.

Specifications
EU RoHS Compliant
Driver Type High and Low Side
Driver Configuration Non-Inverting
Peak Output Current (A) 1(Typ)
Number of Drivers 2
Minimum Operating Supply Voltage (V) 8
Maximum Operating Supply Voltage (V) 14
Input Logic Compatibility TTL
Maximum Rise Time (ns) 15(Typ)
Maximum Fall Time (ns) 15(Typ)
Maximum Turn-On Delay Time (ns) 2(Typ)
Maximum Turn-Off Delay Time (ns) 2(Typ)
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Bridge Type Half Bridge

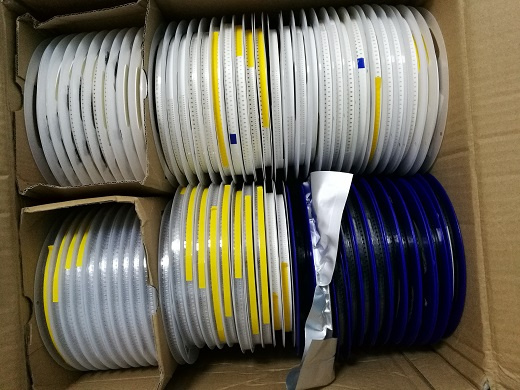

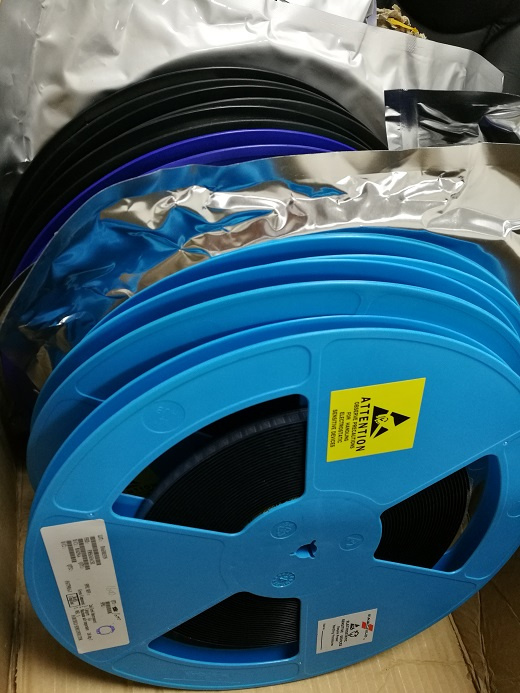

Packaging Tape and Reel
High and Low Sides Dependency Independent
Number of Outputs 2
Maximum Propagation Delay Time (ns) 32(Typ)
Maximum Supply Current (mA) 1.8(Typ)
Absolute Propagation Delay Time (ns) 56
Typical Input High Threshold Voltage (V) 1.8
Typical Input Low Threshold Voltage (V) 1.8
Reference Voltage (V) 90(Max)
Special Features Low Power Consumption|Undervoltage Lockout
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 5(Max)
Package Width (mm) 4(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC
Pin Count 8
Lead Shape Gull-wing

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
