Power Electrical Terminal Tin Plated Copper Cable Panel Lugs Types

Name: Power Electrical Terminal Tin Plated Copper Cable Panel Lugs Types
Brand: all-electronics-online.com
SKU: 817543105
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 0.29-2.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTL
Product Name:	Cable Panel Lugs
Certificate:	ISO9001,Ce,RoHS
Color:	Sliver
Used For:	Wire Connecting
Surface Treatment:	Coated Tin Plating
Special:	OEM Service Offered
Craft:	Friction Welding
Conwell:	Factory
ODM:	Offered
Cable Size:	10-630 Sqmm
Type:	Cable Panel Lugs
Material:	Copper-Aluminum
Application:	Connecting Cable
Certification:	RoHS

Product Description

cable panel lugs

Product Descriprion

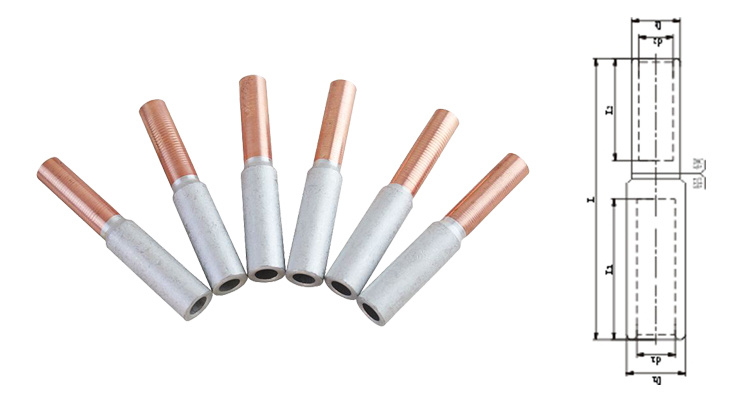

Model	Dimensions (mm)
Model	D	d	D1	d1	L	L1	L2
GTL-10	10	5.5	9	5	70	32	25
GTL-16	10	5.5	9	5.5	75	35	28
GTL-25	12	7	10	6	80	37	30
GTL-35	14	8.5	11	7	90	44	32
GTL-50	16	9.5	12	8.5	95	45	34
GTL-70	18	12	14	9.5	100	46	35
GTL-95	21	13	16	12	110	51	41
GTL-120	23	15	18	13	112	52	43
GTL-150	25	16	20	15	118	54	44
GTL-185	27	18	22	16	125	58	47
GTL-240	30	20	25	18	130	60	48
GTL-300	34	23	27	20	140	65	55
GTL-400	38	26	30	24	150	70	60
GTL-500	42	29	34	26	160	75	65
GTL-600	54	34	38	30	170	80	70

ABOUT US

Business Type

Manufacturer

Location

Yueqing,Zhejiang,China(Mainland)

Year Established

2004

Main Product

1.Insulation Piercing Connector

2.Anchor clamp

3.Suspension Clamp

4.Parallel Groove Clamp

5.Waterproof Junction Box

6.Lightning Protection Products

7.Pre-insulated Sleeve,Lug

8.Bimetal Lugs

9.Other ODM Products

Testing Supplier Vertification

Raw material from public company

Quality Management System

Test strictly done by ISO,EN,UL and other relative standard

Q 1. What is the material of teeth?

A.We have three material:Aluminum,copper and brass.

Q 2.How about your experience?

A.We are only produce insulation piercing connector for 12 years with all test equipments available in my lab and nation production certificate.

Q 3. What's your advandge ?

A. We are the 1st long history IPC export factory in China,and have 18 months warranted.

Q 4. What's the payment term?

A. We accept TT, 30% deposit and 70% balance against copy of BL, Western Union, L/C is ok!

Q 5. How's the delivery time ?

A. Usually it will take about two weeks for the order of 100,000pcs for production

Q 6. Tell me the standard of package?

A. For inner box and master carton are made as per international standards,and we can make special design for you if need.

Also if necessary, will be packed in pallet to avoid any damage.

Q 7. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 8. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 9. How about the transport?

A. If the number of goods is small we usually use TNT,DHL,FEDEX,EMS and some express you offered. If the number of the goods is big usually we use the FWD you offered or we provided. Either by sea or by air is OK.

Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.

We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.

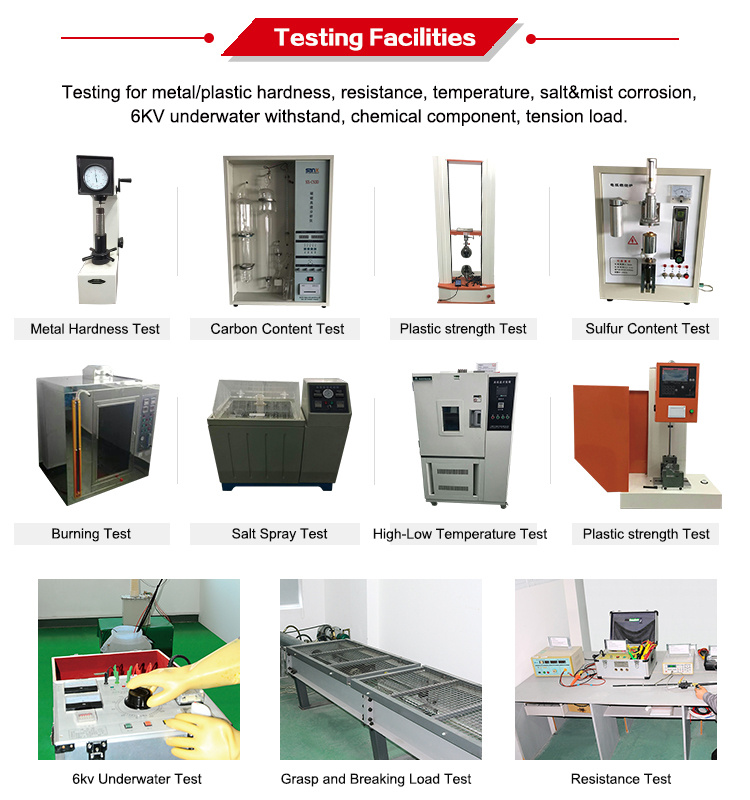

About Testing

Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.

About Technology:

We have R&D team, technology team, quality team, mould development&production team.

Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
