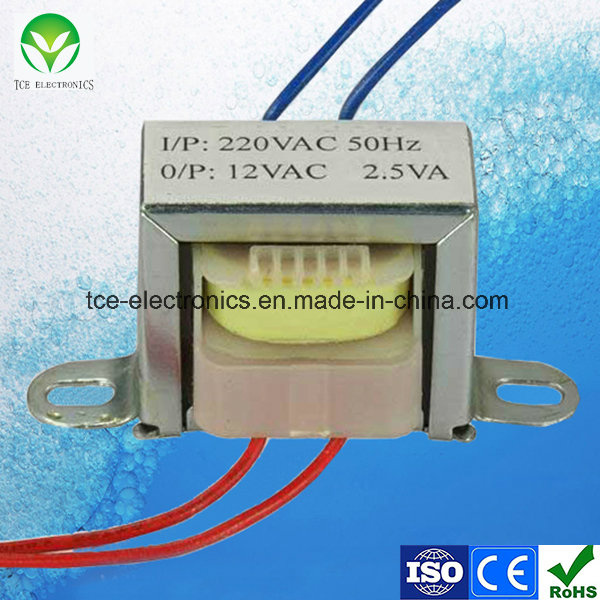

Power Flyback Transformer for Household Applicances

Name: Power Flyback Transformer for Household Applicances
Brand: all-electronics-online.com
SKU: 824050855
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 0.68-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EI20, EI28, EI30, EI48, UI30, UI39
Application:	Lighting
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Tce

Product Description

Dielectric Strength - 3750Vrms
High ambient operation temperature (+70°C maximum)
Primary (115V 60Hz or 230V 50Hz; 110V 60Hz or 220V 50Hz)
Secondary - Single or Dual
Insulation Class - Class B (130°C)

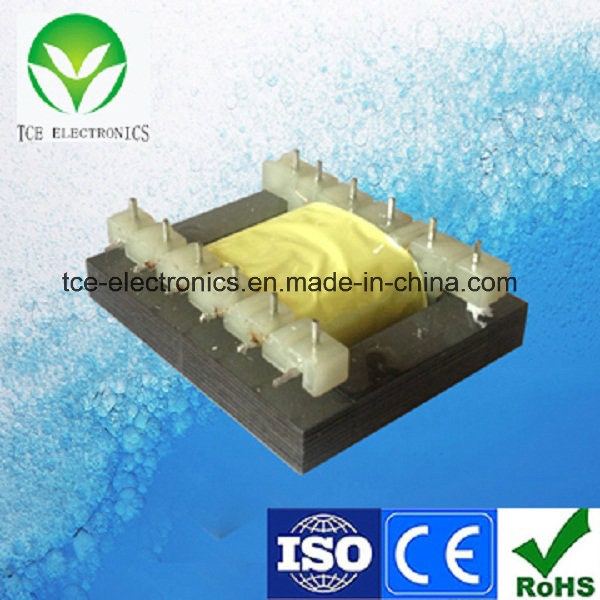

*PCB power transformer

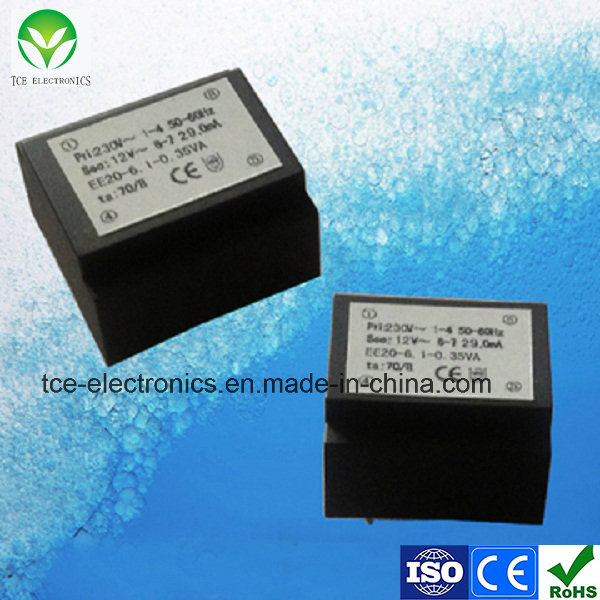

*EE20x4, EE20X6, EE20X10 encapsulated power transformer
*EI28 EI28X10.5 EI28X11 EI28X11.5 EI28X12 EI28X15 EI28X18 encapsulated transforomer

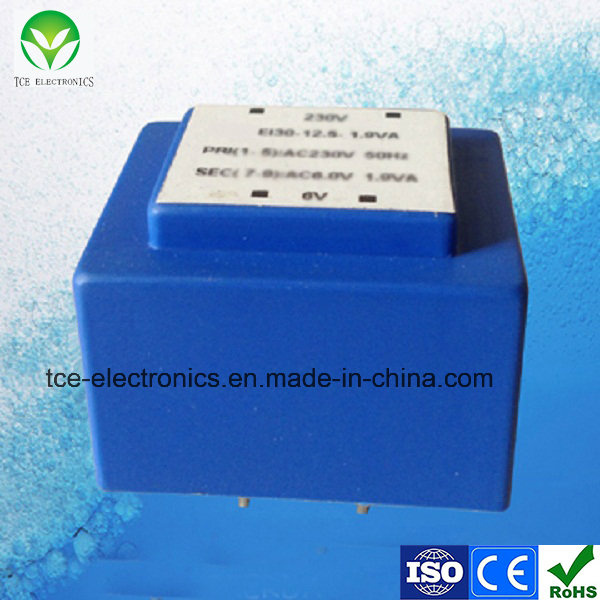

*EI30X5, EI30X10.5, EI30X12.5, EI30X15.5, EI30X18 encapsulated power transformer
*EI30X23, EI38X14, EI42X14, EI42X20 encapsulated power transformer
*EI41, EI41X10 , EI41X13, EI41X17 EI41X18 EI41X 22 EI41X23 encapsulated transformer
*EI48X16, EI48X20, EI54X18, EI48X22 EI48X24 EI60X30 EI86X40 encapsulated power transformer
*Low-profile encapsulated power transformer

Type	Model	Dimension L×W×H(mm)	Output Power (Typical value)	Input voltage (Typical value)	Output voltage (Typical value)
EE20	EE 20-06	22×24×15	0.3~0.4VA	115V 220V 230V	4V 6V 9V 12V 4V×2 6V×2 9V×2 12V ×2 15V 18V 24V 15V×2 18V×2 24V×2
EE20	EE 20-10	22×24×19	0.5~0.6VA	115V 220V 230V
EI30	EI 30-05	33×28×15	0.5~0.6VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
	EI 30-08	33×28×19	0.8~1.2VA
	EI 30-10	33×28×21.9	1.0~1.5VA
	EI 30-12	33×28×24	1.5~1.9VA
	EI 30-15	33×28×27	1.9~2.1VA
	EI 30-18	33×28×29.5	2.1~2.5VA
	EI 30-23	33×28×34.8	2.6~3.2VA
EI35	EI35-14	39×34×34.5	3~4VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI38	EI 38-7.5	42×36×21.5	2~2.4VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI38	EI 38-14	42×36×28	3.2~4.5VA	115V 220V 230V
EI42	EI 42-09	46×39×26	3~4VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
	EI 42-14	46×39×32.7	5~6VA
	EI 42-20	46×39×38	8~10VA
EI48-1	EI 48-16	52×44×35.5	8~10VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI48-1	EI 48-20	52×44×38.5	10~13VA	115V 220V 230V
EI48-2	EI 48-16	71×44×36	8~10VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI48-3	EI 48-24	73×45×45	14~16VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI54-1	EI 54-16	59×50×35	13~15VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI54-2	EI 54-18	76×50×41	16~20VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
EI60	EI 60-30	66×56×48	28~32VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
UI 30	UI 30-10.5	45×35×24	6VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
UI 30	UI 30-16	45×35×30	10VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
UI39	UI 39-13.5	58×46×29	18VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2
UI39	UI 39-21	58×46×36	30VA	115V 220V 230V	6V 9V 12V 6V×2 9V×2 12V×2 15V 18V 24V 15V×2 18V×2 24V×2

Input voltage:220V/110V 50/60HZ
Output voltage: 9V,12V,15V,24V, 2×6V,2×9V,2×12V
Power:1W
High Voltage Resistance:Pri-Sec≥3250VAC
Pri-Core≥1500VAC;
Sec-Core≥1500VAC

Table of technical parameter:
Size in the following table is only for reference,real size takes the real object as standard.

Part No.	Product Model	Dimensions (mm)								Power (VA)
		A	B	C	D	E	F	I	J
TCE-EI2812	EI28X12	30	40	27	50	10	27	6	3.5	1

Primary (V)	Secondary (V/mA)	No-Load Voltage(V)	Part Number
230	6/250	8.95	TCEEI30-1.5VA-01A
230	9/166	12.90	TCEEI30-1.5VA-02A
230	12/125	16.70	TCEEI30-1.5VA-03A
230	15/100	24.70	TCEEI30-1.5VA-04A
230	18/83	29.50	TCEEI30-1.5VA-05A
230	24/62	35.80	TCEEI30-1.5VA-06A
230	2×6/125	2×9.15	TCEEI30-1.5VA-07A
230	2×9/83	2×13.70	TCEEI30-1.5VA-08A
230	2×12/62	2×17.30	TCEEI30-1.5VA-09A
230	2×15/50	2×24.70	TCEEI30-1.5VA-10A
230	2×18/41	2×29.40	TCEEI30-1.5VA-11A
230	2×24/31	2×35.80	TCEEI30-1.5VA-12A
115	6/250	8.95	TCEEI30-1.5VA-13A
115	9/166	12.90	TCEEI30-1.5VA-14A
115	12/125	16.70	TCEEI30-1.5VA-15A
115	15/100	24.70	TCEEI30-1.5VA-16A
115	18/83	29.50	TCEEI30-1.5VA-17A
115	24/62	35.80	TCEEI30-1.5VA-18A
115	2×6/125	2×9.15	TCEEI30-1.5VA-19A
115	2×9/83	2×13.70	TCEEI30-1.5VA-20A
115	2×12/62	2×17.30	TCEEI30-1.5VA-21A
115	2×15/50	2×24.70	TCEEI30-1.5VA-22A
115	2×18/41	2×29.40	TCEEI30-1.5VA-23A
115	2×24/31	2×35.80	TCEEI30-1.5VA-24A
2×115	6/250	8.95	TCEEI30-1.5VA-25A
2×115	9/166	12.90	TCEEI30-1.5VA-26A
2×115	12/125	16.70	TCEEI30-1.5VA-27A
2×115	15/100	24.70	TCEEI30-1.5VA-28A
2×115	18/83	29.50	TCEEI30-1.5VA-29A
2×115	24/62	35.80	TCEEI30-1.5VA-30A
2×115	2×6/125	2×9.15	TCEEI30-1.5VA-31A
2×115	2×9/83	2×13.70	TCEEI30-1.5VA-32A
2×115	2×12/62	2×17.30	TCEEI30-1.5VA-33A
2×115	2×15/50	2×24.70	TCEEI30-1.5VA-34A
2×115	2×18/41	2×29.40	TCEEI30-1.5VA-35A
2×115	2×24/31	2×35.80	TCEEI30-1.5VA-36A

Frequency 50/60Hz
Split-bobbin
Temperature class ta 70ºC/B
Weight: 0.08kg

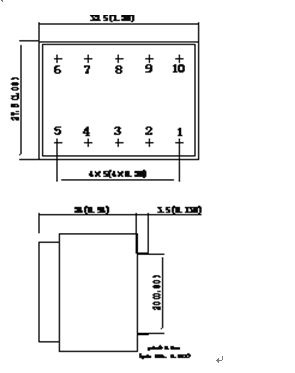

Mechanical

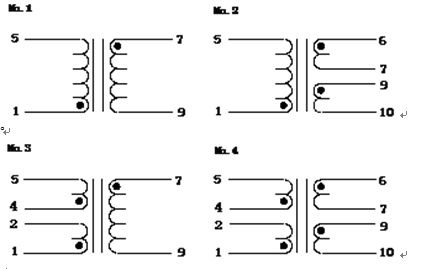

Schematics

Product Feature
1.Easy to install.
2.Lower power consumption.
3.Little temperature rising.
4.High accuracy of output voltage.
5.Dimension and output leads can be customized.
6.Dielectric Strength is high.

We are a professional manufacturer specializing in custom-designed transformers and inductors. Our products category are such as high frequency transformer, power transformer, power transformer, common mode inductor, inductor, magnetic ring inductor, linear filters, magnetic inductors, magnetic ring transformer, I-shaped inductor, magnetic inductors, air core coil, coil, vibration oscillation coil, winding inductance coils, etc

Core category are as below. Cron core, iron silicon aluminum, ferrite, amorphous strip, sendust cores, ferrosilicon powder core, high flux magnetic powder core, iron nickel iron nickel molybdenum powder core, high permeability ferrite, zinc, nickel, manganese zinc soft magnetic, permanent magnet and soft magnetic metal and so on

Magnetic bar P/N: 3*12, 3*15, 3*20, 4*15, 4*16, 4*20, 5*15, 5*20, 5*25, 6*20, 6*25, 6*30, 8*30, 15*150, etc

I-shaped inductor P/N: 0406 0507 0608 0810 0912 1010 1012 1016 1313 1618 1517, etc.

Ring: Ring size(outer diameter, inner diameter, thickness) Common mode magnetic coil and magnetic ring filter. Common mode inductor loop(ring): 6*3*3, 9*5*3, 10*6*5, 12*6*4, 13*8*7, 14*8*7, 18*10*8, 22*14*8, 25*15*13, 31*19*13, etc

Magnetic ring, inductor coil, inductor, magnetic ring: 3026, 3052, 4426, 4452, 5026, 5026B, 6026, 6826, 6826A, 6026D, 6052D, 6052, 8026, 8026B, 9026, 9426, 10626, 13026, 15026, 15726, 18426, etc.

Linear filters: UU9.8/UF9.8 UU10.5/UF10.5 UU16/UF16; UT20/ET20 UT24/ET24 UT28/ET28 ET35.

High frequency transformer P/N: EE8.3, EE10/EI10, EE13/EI13, EE16/EI16 EE19/EI19 EE20/UU21 EE21 EE22/EI22/EE25/EI25/EE28/EI28/EI30/EE30/EI33/EE33/EE35/EI35/EE40/EI40/EE55/EE65/EE85/EE110

EE Series: EEL16/EEL19/EEL22/EEL25

ER Seris: ER24/ER25/ER28/ER35/ER39/ER40/ER42/ER45/ER49

EF Series: EF12.6/EF15/EF16/EF20/EF25/EF35

EFD\EFT Series: EFD15/EFD20/EFD25/EFD30/EFT43/EFT45/EFT46

EP. EPC POT Series: EP07/EP10/EP13/EP17/EPC13/EPC19/EPC27/EPC46/POT14/POT30/POT33

ETD Series: ETD29/ETD34/ETD44/ETD49/ETD54/ETD59

PQ Series: PQ20/PQ2016/PQ2020/PQ2620/PQ2625/PQ3220/PQ3230/PQ3235/PQ3535/PQ4040/PQ50/PQ5050

RM Series: RM04/RM06/RM05/RM08/RM10/RM12/RM14

Application: Switching mode power supply, LED driving power supply, Power module, Industrial equipment, Liquid crystal display, Charger, digital camera, Portable computer, communication network, etc electronics equipment.

Product model are complete with quick delivery time and High quality and low price. We can design and produce products according to our customers' requirement.
