| Prod Model: |
Power Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
8kw/10kw/12kw |
| Cooling: |
Automatically Controlled Cooling Fan |
| AC Regulation: |
Thd <3% |
| Fuse: |
Built in |
| Output Frequency: |
50/60Hz |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Air Conditioner |
| Brand: |
Upsen |
Product Description
Power Inverter DC 12V to AC 220V for air conditioner
Model:Pure Sine Wave Inverter Charger Power Star Series PS8Kw-12Kw (1ph in/1ph out)
Applications:
UPSEN Power Star Inverter ,can be used with different domestic appliance like TV,fan,air conditioner,cooker,mirco-wave oven,etc.
Key Features:
1:LCD status display available
2:3-step intelligent battery charging
3:RS232 communication port optional
4:Start Auto restart while AC is recovering
5:Superior performance from CPU control technology
6:Delay before transfer, extra protections for loads under generator mode
7:Generator compatibly and external battery connection achievable

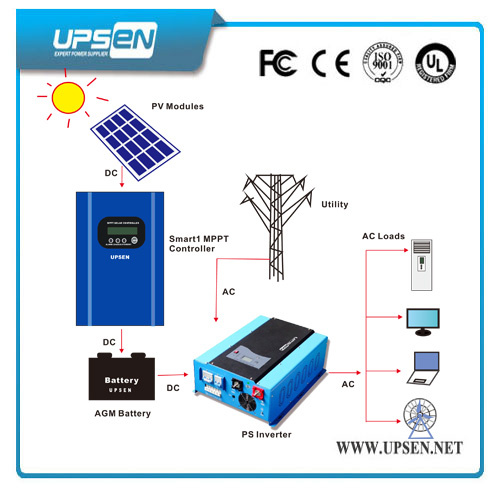

8:Solar Energy , City power , DC to AC can transfer automatically
9:Low battery voltage trip selectable, extracting max power from various batteries with different protections
10:Solar function: Charges battery from grid power on no-Solar time and charges battery from solar on solar time manually
Technical Specification
| Power Star Series |
| Model No. | PS8K | PS10K | PS12K |
| Nominal Power | 8KW | 10KW | 12KW |
| AC Input |
| Phase & Waveform | Single Phase & Pure Sine Wave |
| Voltage | 220/230/240VAC |
| Acceptable Voltage | 154-273VAC |
| Line Low Transfer | 154V |
| Line Low Return | 164V |
| Line high Transfer | 273V |
| Line high Return | 263V |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Line Low Transfer | 40Hz |
| Line high Transfer | 80Hz |
| AC Output |
| Phase & Waveform | Single Phase & Pure Sine Wave(bypass mode sync to input) |
| Voltage | 220/230/240VAC (Same as Input on bypass mode) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Crest Power | 3 times of rating power |
| Short Circuit Protection | Yes,shutdown |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 48V |
| Minimum Start Voltage | 40V |
| Low Battery Alarm | 44V |
| Low Battery Transfer | 40V |
| High Voltage Alarm | 64V |
| Max Charging Current | 75A | 85A | 100A |
| Over Charge Voltage | 62.8V |
| Transfer Efficiency |
| Line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 75 Watts |
| Indicators |
| 4-LED Display | Charge, Line, Inverter, Fault |
| LCD Display | Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault |
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS232/RJ11(Optional) |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 56 | 64 | 68 |
| Dimension L*W*H(mm) | 549*450*201mm | 584*450*201mm |
| *Specification is subject to change without prior notice. |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
