Product Description
Name:

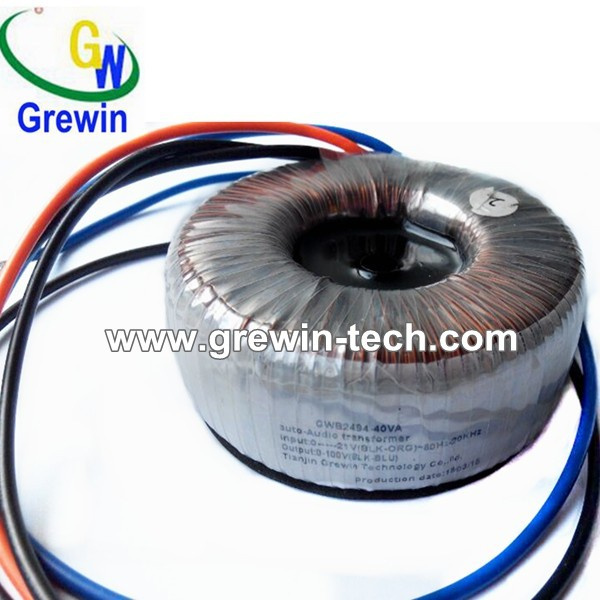

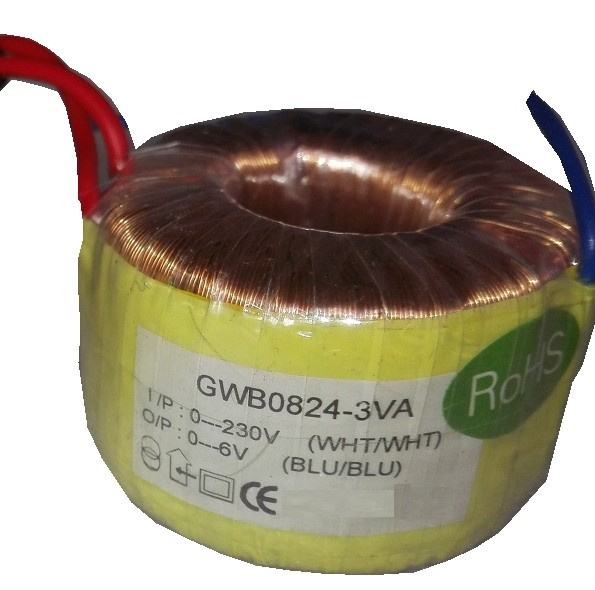

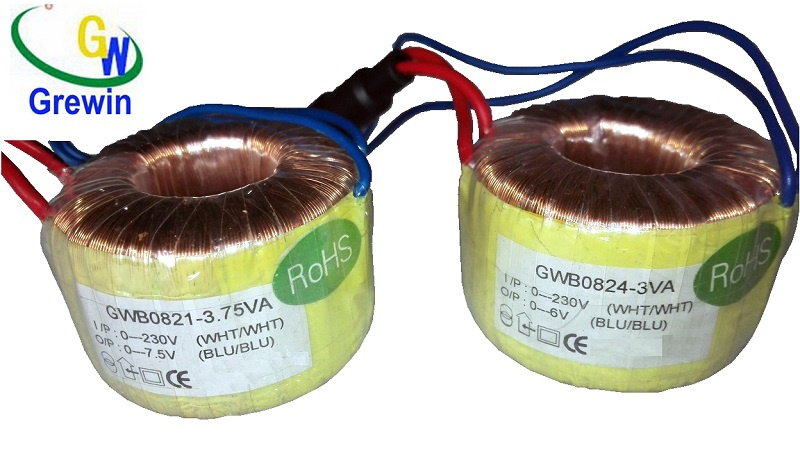

Small Power Inverter Toroidal Transformer for Solar Energy
1.

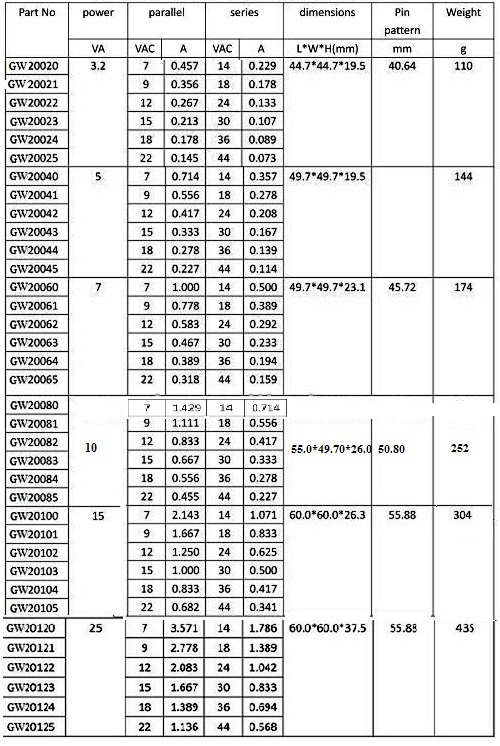

Technical parameters.| Miniature Toroidal Transformer |
| Part No | power | parallal | series | Dimension | Pin Pattern | Weight |
| VA | VAC | A | VAC | A | L*W*H(MM) | MM | g |
| GW20020 | 3.2 | 7 | 0.457 | 14 | 0.229 | 44.7*44.7*19.5 | 40.64 | 110 |
| GW20021 | 9 | 0.356 | 18 | 0.178 |
| GW20022 | 12 | 0.267 | 24 | 0.133 |
| GW20023 | 15 | 0.213 | 30 | 0.107 |
| GW20024 | 18 | 0.178 | 36 | 0.089 |
| GW20025 | 22 | 0.145 | 44 | 0.073 |
| GW20040 | 5 | 7 | 0.714 | 14 | 0.357 | 49.7*49.7*19.5 | | 144 |
| GW20041 | 9 | 0.556 | 19 | 0.278 |
| GW20042 | 12 | 0.417 | 24 | 0.208 |
| GW20043 | 15 | 0.333 | 30 | 0.167 |
| GW20044 | 18 | 0.278 | 36 | 0.139 |
| GW20045 | 22 | 0.227 | 44 | 0.114 |
| GW20060 | 7 | 7 | 1.000 | 14 | 0.500 | 49.7*49.7*23.1 | 45.72 | 174 |
| GW20061 | 9 | 0.778 | 18 | 0.389 |
| GW20062 | 12 | 0.583 | 24 | 0.292 |
| GW20063 | 15 | 0.467 | 30 | 0.233 |
| GW20064 | 18 | 0.389 | 36 | 0.194 |
| GW20065 | 22 | 0.318 | 44 | 0.159 |
| GW20100 | 15 | 7 | 2.143 | 14 | 1.071 | 60.0*60.0*26.3 | 55.88 | 304 |
| GW20101 | 9 | 0.667 | 18 | 0.833 |
| GW20102 | 12 | 1.250 | 24 | 0.625 |
| GW20103 | 15 | 1.000 | 30 | 0.500 |
| GW20104 | 18 | 0.833 | 36 | 0.417 |
| GW20105 | 22 | 0.682 | 44 | 0.341 |
| GW20120 | 25 | 7 | 3.571 | 14 | 1.786 | 60.0*60.0*37.5 | 55.88 | 435 |
| GW20121 | 9 | 2.778 | 18 | 1.389 |
| GW20122 | 12 | 2.083 | 24 | 1.042 |
| GW20123 | 15 | 1.667 | 30 | 0.833 |
| GW20124 | 18 | 1.389 | 36 | 0.694 |
| GW20125 | 22 | 1.136 | 44 | 0.568 |
Name:
High efficiency Toroidal Transformer for Amplifier,winding machine and equipments
1.technical parameters | Power | Input Voltage(V) | Output Voltage(V) | Dimension
OD*H(mm) | Weight (kg) |
| GWB50VA | 220V (230V) | 12V | 80*38 | 0.74 |
| GWB100VA | 220V (230V) | 12V | 95*45 | 1.25 |
| GWB200VA | 220V (230V) | 12V | 112*52 | 2.05 |
| GWB250VA | 220V (230V) | 12V | 118*54 | 3.36 |
| GWB500VA | 220V (230V) | 12V | 140*65 | 4.2 |
| GWB1000VA | 220V (230V) | 12V | 170*75 | 7.2 |
| GWB1500VA | 220V (230V) | 12V | 180*85 | 9.75 |
| GWB2000VA | 220V (230V) | 12V | 185*105 | 12 |
| GWB3000VA | 220V (230V) | 12V | 200*120 | 16.6 |
| GWB5000VA | 220V (230V) | 12V | 230*135 | 24 |
2. We have abtained VDE,UL,CE,ISO9000 approval .we guarantee quality is the first.
Test process1 .No-load test (included no-load voltage,no load current and no load loss)
2.iInductive voltage test
3. Load test (load voltage and temperature rise
4. Temperature rise test .
5.Insulated resistance
6.Hi-pot test
7.Leakage indutance test
8.DC resistance test
9.Surface inspection.3.customized audio toroidal transformer and solar energy transformer Application:
1). Application:
1. audio equipment
2. electric control
3. computer
4.instrument
5.telecommunications
6.high-end and middle-end vedio etc
2). Advantages:
1.High quality 100% copper core
2.a full range of toroidal transformer3.Specially sales and technical services:5-10Years
4.With 14 years' producing history in transformer induatry
5.our company have cooperated with many customers around the world and gained good reputation at home and abroad.
3).Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.
4).GREWIN'S Dimension :
External diameter: 40mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)
4.product procedure
The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:
