| Prod Model: |
L200CM-12/L200CM-24/L200CM-36/L200CM-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Use: |
Standard Battery |
| Case: |
PC+ABS Plastic |
| Color: |
Black |
| Customized: |
Yes |
| Recovery Function: |
Yes |
| Short Circuit Protection: |
Yes |
| Reverse Potection: |
Yes |
| LED Dispaly: |
Yes |
| Overheating Protection: |
Yes |
| Delivery Date: |
3-4 Weeks |
| Type: |
Lithium Battery |
| Charger Type: |
Li-ion Battery Charger |
| Charger Application: |
Electric Wheelchair, Electric Scooter, Unicycles |
| Nominal Voltage: |
16.8V/ 29.4V/ 42.0V/54.0V |
| Compatible Battery Type: |
12V/ 24V/36V/48V |
| Size: |
213 X 94 X 54mm |
| Socket Type: |
TUV, VDE, PSE, UK, SAA... |
Product Description
Charger name: Li ion battery charger / lithium battery charger
Charger catalogue: Li ion battery charger
Charger suit for: 24V/36V/48V Li ion battery pack
1. The charger integrates power factor correction (PFC), it can avoid the impact of high current and can't produce pollution on the grid
2. The input AC voltage is 90V~264V 50~60Hz for L200-XX, and is 90V~132V or 200V~260V 50~60Hz for L200CM-XX
3. Efficiency > 87%, Power Factor > 0.97 [for L200] or >0.7[for L200CM]
4. With MCU controller, CC+CV, cut-off when finished charging
5. Designed for 24V~48V power Li-ion/Li-Fe battery pack
Protection
1. The charger's internal relay makes the output voltage is less than 5.5V with no-load, when the output is connected to a battery, the output voltage of charger is normal
2. Short circuit protection: When the output of charger is shorted, the charger will close output automatically without any damage
3. Reverse polarity protection: When the output is connected to a battery reversely, the charger will close output automatically without any damage
4. Overheating protection: The internal temperature exceeds 80 ° C, the charger will close output automatically
L200CM-24 LiPo Portable 7S 26V Li-ion Car Battery Charger
-
| Specification |
|---|
| Input: 120 or 240V (defined when order) |
| Output: 29.4V 6.0A |
| Charge Process: C.C--C.V.--Cut off |
| Charger Indicator: Red Charging/Green Finished |
| Output Protections: Short-circuit, Reverse Polarity |
| Safety Approval: CE |
| Size: 213 x 94 x 54mm |
| Suit for Battery: 26 Volt (7Cells) 8~50Ah Li-ion Battery Charger |
Feature:
Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Pre-charge function for deep discharged battery pack
Designed for 7 series Li-ion/polymer battery
With bi-color LED, red for charging green for finished Red flashing for errors, "off" for no battery
Protection mode for battery polarity reversed or the output connectors shorted.
Meet EN60335-2-29 and UL1310 safety requirements
Specification for L200CM-24
| Input Voltage | 100~120VAC or 220~240VAC, 50-60Hz |
| Input Current | 3.3A @ 100V input. |
| Input power factor | 0.7 |
CV Charge Voltage | L200CM-12 | L200CM-24 | L200CM-36 | L200CM-48 |
| 16.8V | 29.4V | 42.0V | 54.0V |
| Bulk charge current | Up to 15A | Up to 8A | Up to 6A | Up to 4.5A |
| Pre-charge current | 2A | 1.2A | 1.2A | 0.7A |
| Operate Temp. | -20ºC~40ºC |
| Cooling | Fan convection. Do not cover the charger. |
| Charge principle | Auto 4 stages (Pre-CC-CV-Cutoff) charging process. |
| Battery type | 7 series Li-ion/polymer battery |
| Battery capacity | 10-100Ah |
| Size | 213 x 94 x 54mm |

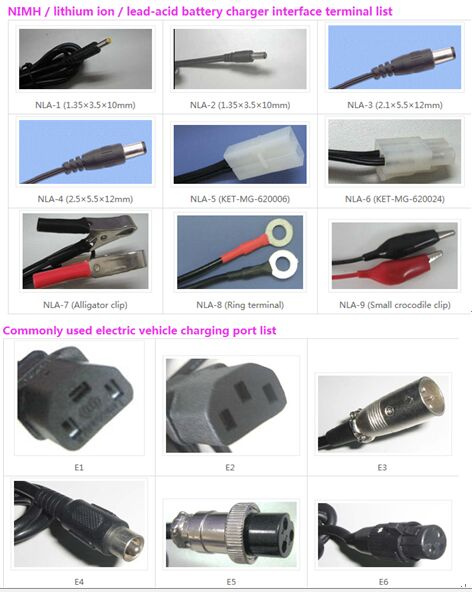

| Output cable | 1.5 meter 2xAWG16#, SPT1 wire, alligator clips |
| Input AC plug | IEC60320-C14 |
| Enclosure | Aluminium casing, with Fan cover. |
| Weight | 0.9kg |
Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.
After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.
Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.
We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
