Name: Power Rechargeable Battery Ecectric-Tools Battery Sealed Lead Acid Battery
Brand: all-electronics-online.com
SKU: 702027572
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 95-105/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	6FM100(12v200ah/10hr)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Longway
Series:	General SLA Battery
Size:	330173219 (Total Height 224 ) Mm
10hr:	100ah
Terminal:	Nb
Color:	Grey or Black or Others
Packing Qty:	1 PCS/CTN
MOQ:	50PCS
Container Qty:	750 PCS/Container
Lead-Time:	15 Days for One Container
Type:	Lead-Acid Batteries
Usage:	Electric Tools
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

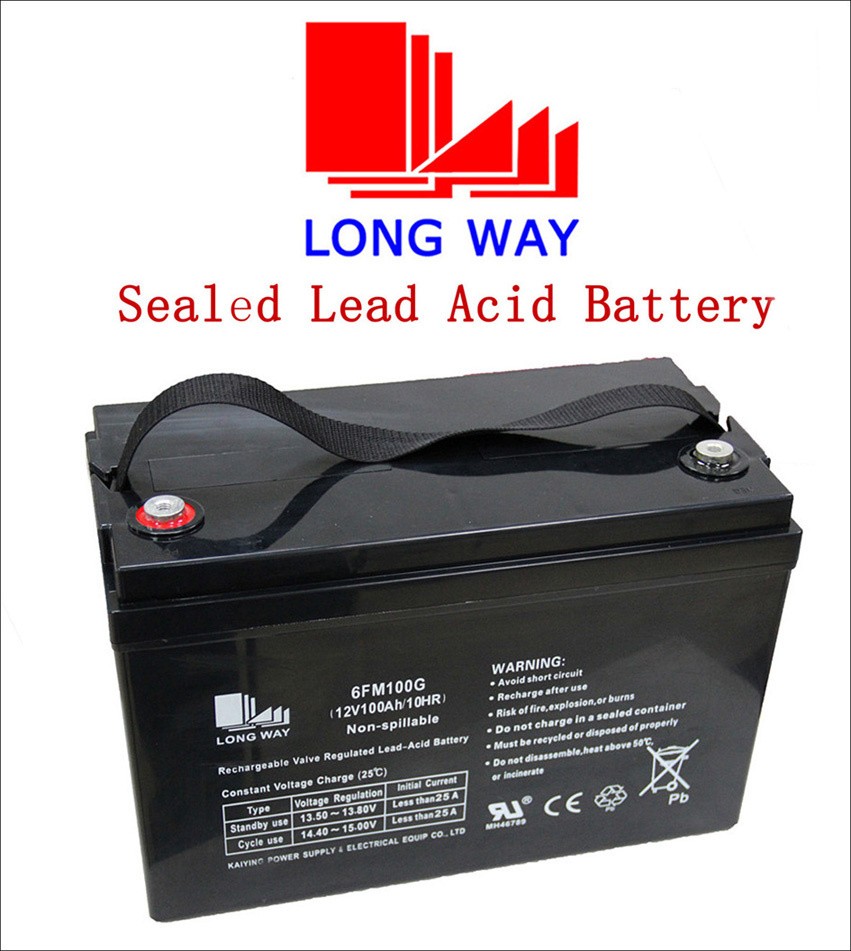

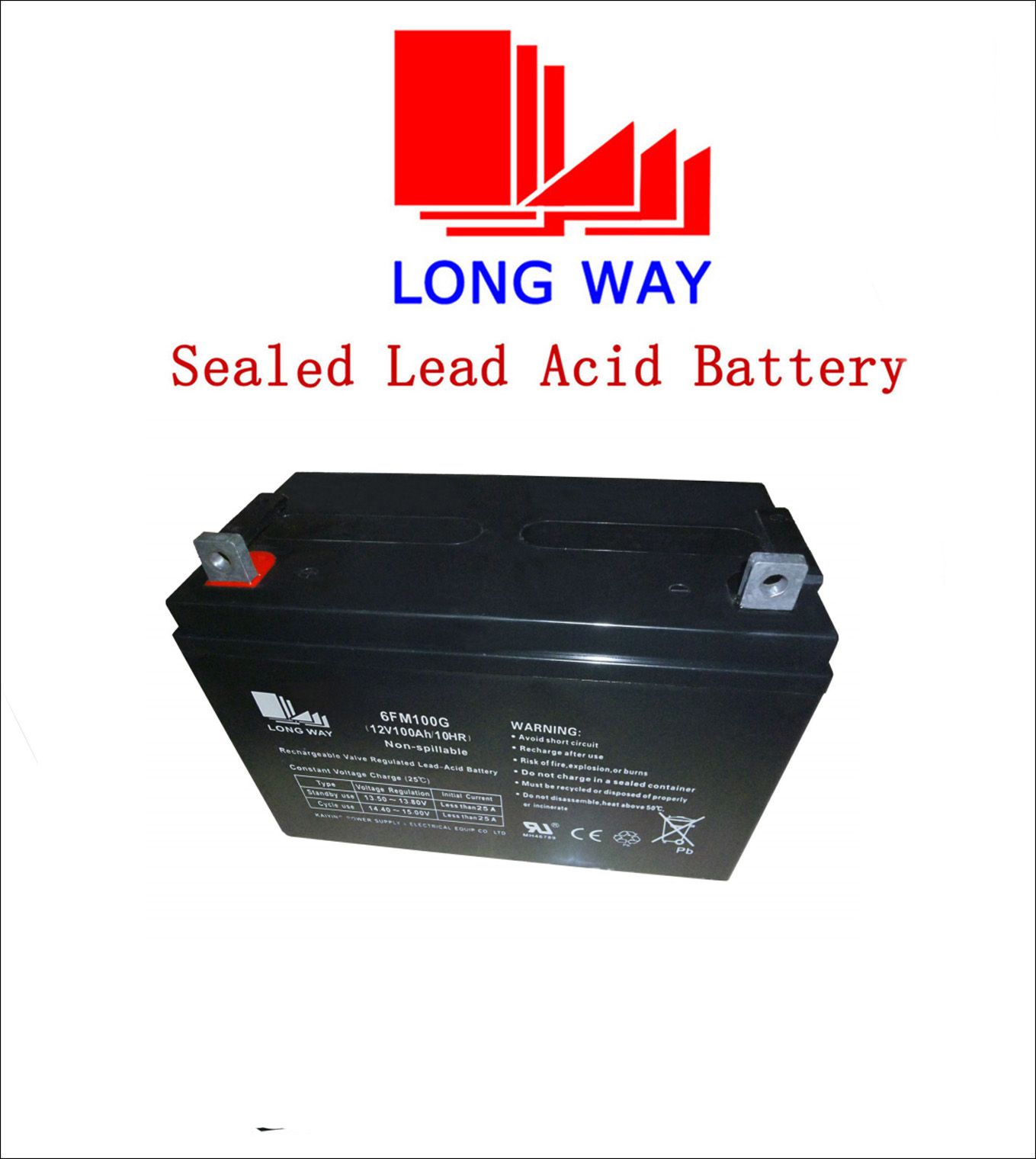

LONGWAY Sealed Rechargeable Lead-Acid Battery(12V100AH/10HR)

LONGWAY® 6FM100H specially designed for high efficient discharge application .
Its characteristics are high energy density , small footprint and high discharge efficiency
It can be used for more than 260 cycles at 100% discharge in cycle service , up to 10 year
In standy service.

1)Detail description
Cells per Unit:6
Normal Voltage :12V
Capacity:100Ah@10Hr-rate to 1.80V per cell@25ºC
Weight:Approx.(29.5±3% kg) (65.04lbs)
Maximum Discharge Current:100A(5sec)

Internal Resistance:Approx. 4.0mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
                                                       Charge: 0ºC~50ºC
                                                      Storage: -20ºC~60ºC
Nominal Operating Temperature Range:25ºC±3ºC
Float Charging Voltage:13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current :25A
Equalization and Cycle Service :14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge:
     LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.

Terminal:Terminal F12
Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

2)Application
UPS, inverter, solar system, OEM acceptable

3)General Features
Stable quality&high reliability
Sealed construction
Environmentally friendly
Maintenance-free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL component recognition(MH46789)

Our factory photo

Our certificate

If any interest, welcome to contact us freely.

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
