Power Relay for Power Control

Name: Power Relay for Power Control
Brand: all-electronics-online.com
SKU: 821530445
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 0.15-0.22/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	w38
Certification:	UL TUV CQC
Contact Material:	Gold Plate
UL Insulation Class:	F
Installation Type:	PCB
Operate Time:	Max.10ms
Release Time:	Max.5ms
Weight:	5g
Contact Form:	Transformation

Product Description

Basic Info

Model NO.: W38/38A
Contact Form: 1C = 1 Transformation
Product protective: S=Sealed Nil= Soldered
Contact material: Nil: No Gold G: Gold Plate
Rated Power: H = 200mW N= 360mW B = 450mW
Dimension: 15.7*11*12 MM
Weight: Approx 5g
Trademark: FANHAR
Origin: China

Product Description
1. 3A contact switching capability
2.Has a set of type of switching contacts
3.Printed plate leads
4. With two kinds of packaging types: plastic and anti-flux

Contact Data:

Contact Form	1C
Rated load	1A 240VAC/30VDC 3A 120VAC
Max Switching Voltage	240VAC/ 30VDC
Max Switching Current	3A
Max Switching Capacity	240VA/30W
Min Allowing load	10mV 1mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	100MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	500VAC 1min
Between coil and contacts	1000VAC 1min
Operate Time	Max.10ms
Release Time	Max.5ms
Mechanical life	10,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	1A 240VAC /30VDC 10,0000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	98m/s² Approx10G 98m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-25ºC to +70ºC
Humidity	5% to 85%
Installation type	PCB Mounting
Certification	UL ISO TUV CQC

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)			Rated consumed power	Allowing voltage
Coil rated voltage	Operating voltage	Releasing Voltage	H	N	B	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	45Ω	25Ω	20Ω	H:200mW N:360mW B:450mW	90-130 % Rated voltage
DC 5V			120Ω	70Ω	56Ω
DC 6V			180Ω	100Ω	80Ω
DC 9V			400Ω	220Ω	180Ω
DC 12V			700Ω	400Ω	320Ω
DC 24V			2800Ω	1600Ω	1280Ω

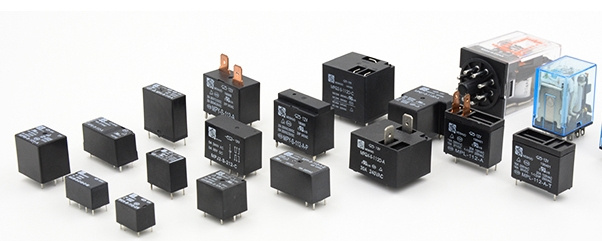

Zhejiang Fanhar Electronics Co., Ltd. is a National Hi-Tech enterprise specialized in research, development, production and sales of relays. With more than 30 series, hundreds of product specifications, our relays are widely used in power control, smart home, household appliances, electric vehicles and charging pile, industrial control and emerging energy fields.

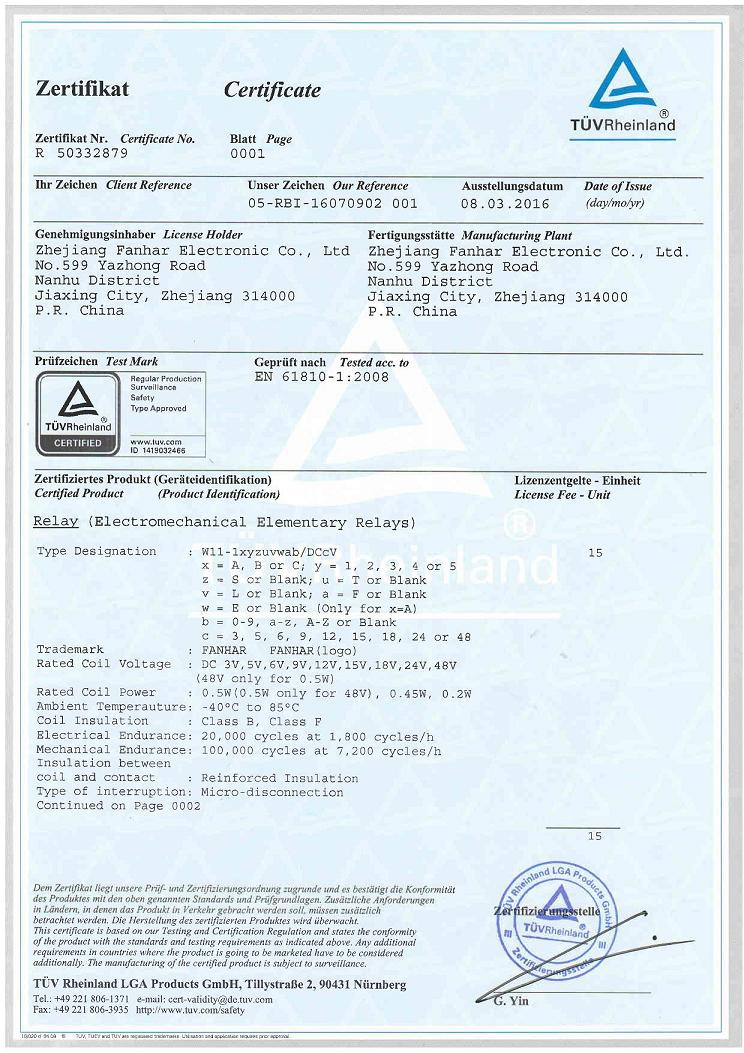

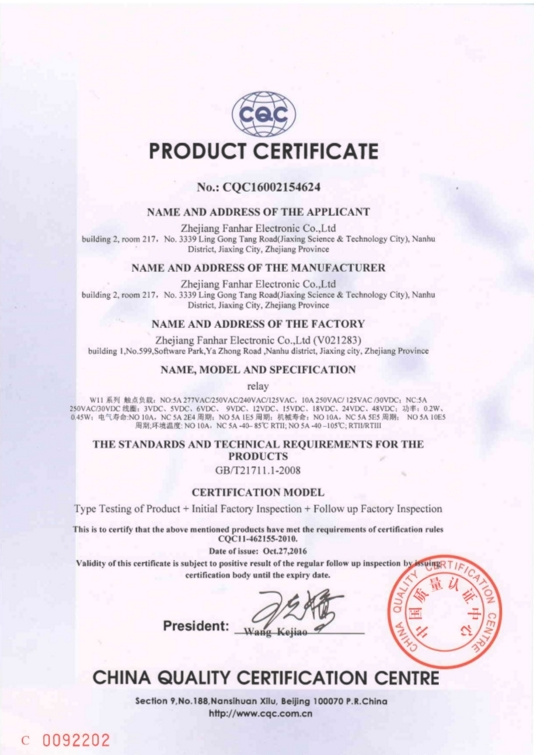

With a complete quality assurance system, Fanhar has passed the ISO9001 quality management system and ISO14001 environmental management system certification. Products possess UL, TUV and CQC certification, and meet the EU RoHS, REACH requirements. 'Fanhar Relay has become a worldwide 's best choice by offering reliable quality assurance system, meticulous technical services, worldwide sales network and the best cost-effective.

Company Development History

Year of 2016

Zhejiang Fanhar Electronics Co., Ltd was acquired the honor of "National High and newTech Enterprise"

Year of 2014

Zhejiang Fanhar Electronics Co., Ltd was founded, mainly engaged in electromagnetic relays and new energy relays.

Year of 2013

Zhejiang Great Electrical Co., Ltd cooperated with Panasonic Group, mainly engaged in Latching relays.

Year of 2011

The Chinese Communist Party Branch of Zhejiang Great Electrical Co., Ltd was founded.

Year of 2010

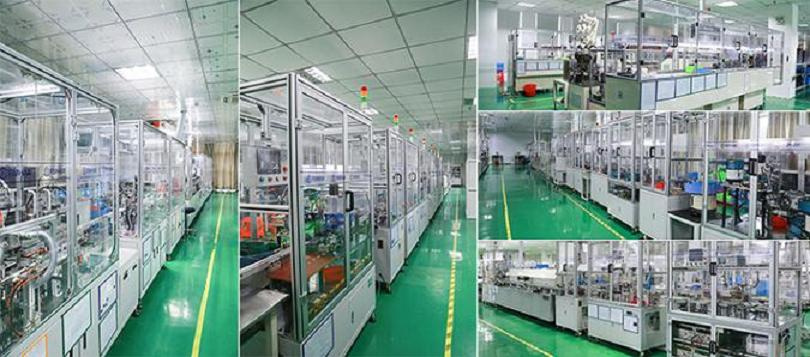

Zhejiang Great Electrical Co., Ltd removed to Jiashan Industry of Zhejiang who has a 12000m2 self- owned factory where is close to Shanghai, the sales amount of the year has a great breakthrough which is more than 100 Million RMB.

Year of 2007

Zhejiang Great Electrical Co., Ltd was Founded.

Year of 2005

Yueqing Great Electrical Co., Ltd upgraded to Wenzhou Great Electrical Co., Ltd, mainly engaged in Latching Relays.

Year of 2003

Yueqing Great Electrical Co., Ltd was established, mainly engaged in Latching Relays.
