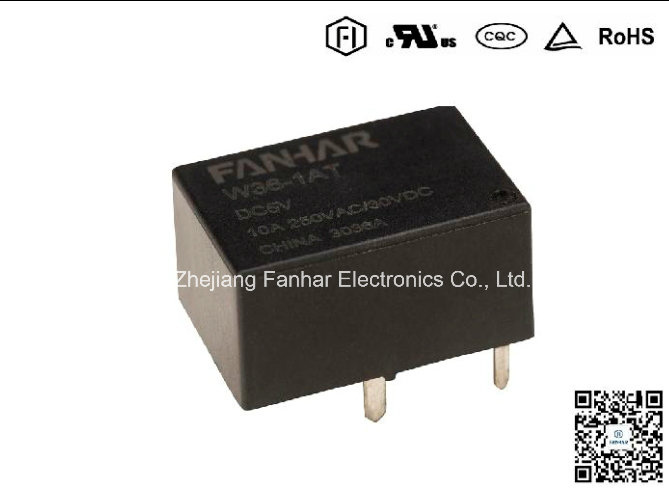

Power Relay for Solar Inverter

Name: Power Relay for Solar Inverter
Brand: all-electronics-online.com
SKU: 827717315
Availability: InStock
Rating: 4.6 (121 reviews)

Price:	US $ 0.5-0.65/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	W36

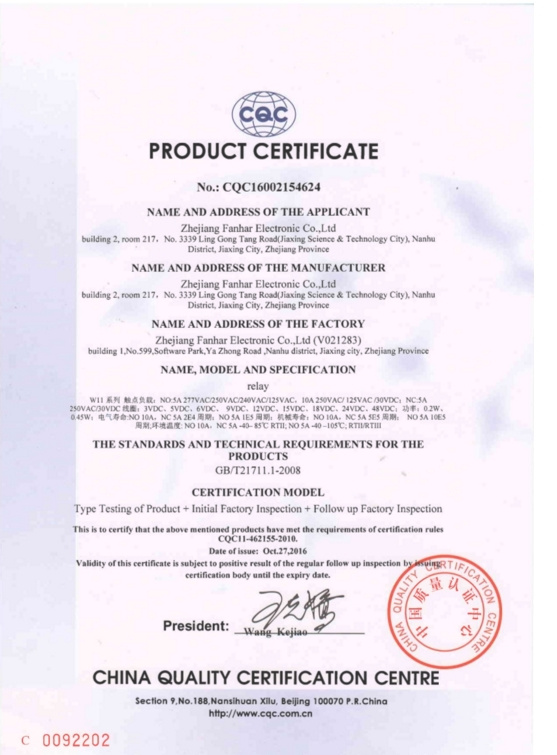

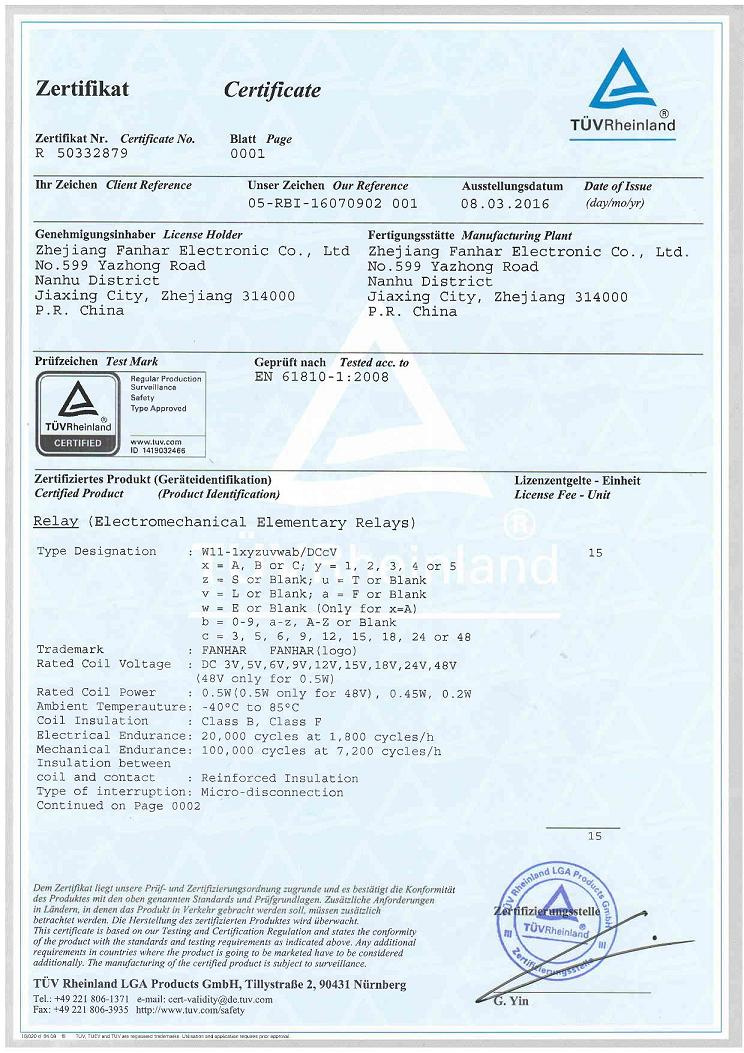

Certification:	UL TUV CQC
Weight:	10g
Contact Material:	Agsno2
UL Insulation Class:	F
Installation Type:	PCB

Product Description

Basic Info

Model NO.: W36
Contact Form: 1A = 1 OPEN CONTACTS
Product protective: S=Sealed Nil= Soldered
Contact material: T = AgSnO2
Dimension: 23*16*10.2 MM
Weight: Approx 10g
Trademark: FANHAR
Origin: China

Product Description
1. 16A contact switching capability
2. Ultra-flat construction for flat mounting applications
2. UL insulation class: F grade

Contact Data:

Contact Form	1A
Rated load	1A 125VAC/ 2A 30VDC
Max Switching Voltage	277VAC
Max Switching Current	16A
Max Switching Capacity	4000VA/480W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	2500VAC 1min
Withstand impact voltage	Between coil and contacts 10kv(1.2X50us)
Operate Time	Max.8ms
Release Time	Max.5ms
Mechanical life	10,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	10A 250VAC 100,000 ops ON/OFF=1s/9s 16A 250VAC 50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification	UL CQC TUV

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V			66.7mA	45Ω	200mW	90-130 % Rated voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	40mA	125Ω
DC 6V			33.3mA	180Ω
DC 9V			22.2mA	405Ω
DC 12V			16.7mA	720Ω
DC 24V			8.3mA	2880Ω
DC 48V			5.2mA	11520Ω
