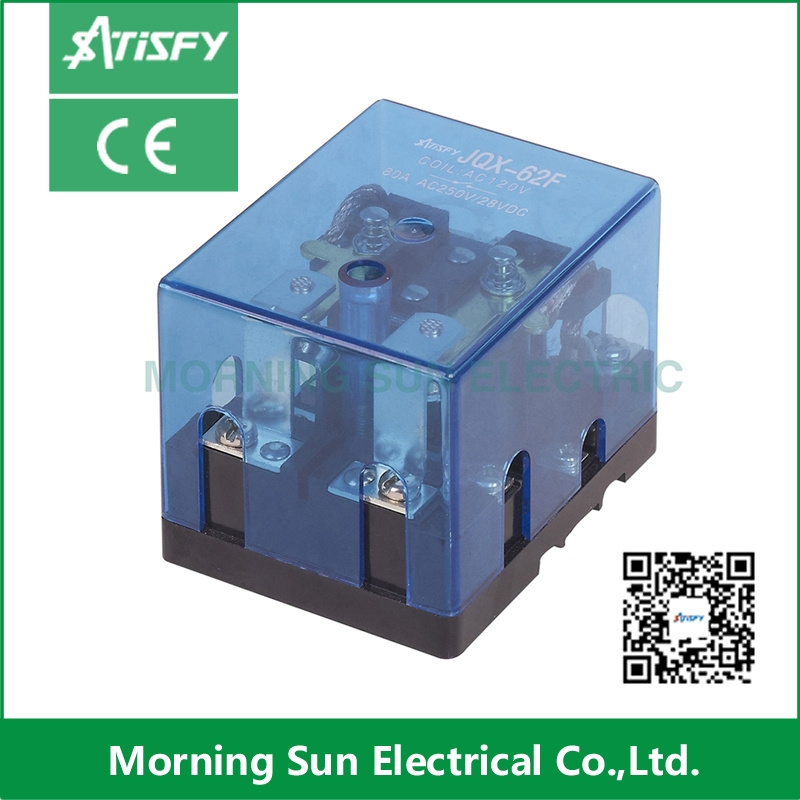

Power Relay Jqx-62f with High Quality

Prod Model:	JQX-62F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM

Product Description

Technical Parameter

JQX-62F 1Z 80A power relay (General Purpose Relay, Power Relay, Latching Relay, etc)

JQX-62F 1Z 80A power relay (General Purpose Relay, Power Relay, Latching Relay, etc) is a kind of electric control device, is that when the input (incentive) change to specified requirements, the output electric circuits of the charged amount occurs due to the step change of a kind of electrical appliances. It has a control system (also called input circuit) and control system (also called the output circuit), the interaction between. Usually used in automatic control circuit, it is actually with a small current to control large current operation of a kind of "automatic switch". In a circuit plays an automatic adjustment, safety protection, conversion circuit, and so on.

Type		JQX-62F 1Z 80A
Dimensions (mm)		68.2*62*69
Contact form		1Z
Contact capacity		80A 250V AC
Coil voltage	DC	6~220V
	AC	6~380V
Coil power		DC: ≤ 2.0W AC: ≤ 2.5VA
Pick-up		DC: ≤ 75% AC: ≤ 80%
Drop-out		DC: ≥ 10% AC: ≥ 30%
Contact resistance		≤ 50mΩ
Insulation resistance		≥ 1000mΩ
Service life	Electrical	100000 times
	Mechanical	10000000 times
Dielectric strength	Between open contacts	1500v rms
	Between coil and contacts	1500v rms
Mounting form		Welding
Operation temperature		-40~+60
Weight		About 220g
