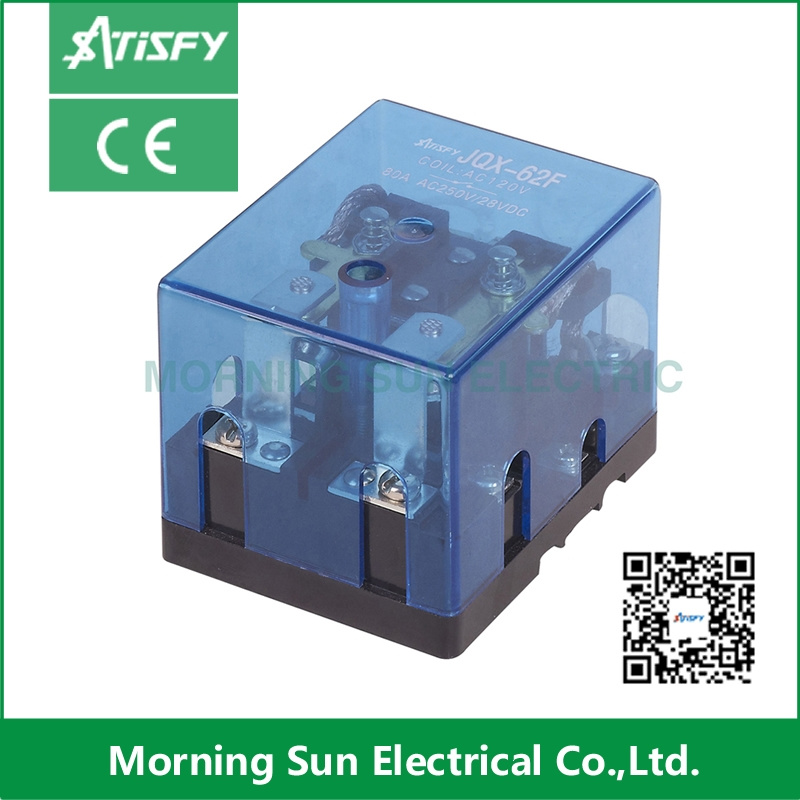

Power Relay with High Quality

Name: Power Relay with High Quality
Brand: all-electronics-online.com
SKU: 645495665
Availability: InStock
Rating: 4.9 (112 reviews)

Price:	US $ 2.70/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-62F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM

Product Description

Model: Power relay JQX-59F 2Z
1)Outline dimensions: 72x46x82mm
2)Contact data:
A)Contact arrangement: 2Z(2D, 2H)
B)Material: Silver alloy
3)Max. Curent: 100A
4)Max voltage: 28V DC/250V AC
5)Coil data:
A)Nominal voltage: 6-220V DC/6-380V AC
B) Coil power: 20W/2.5VA

Technical Data

Insulation Resistance	≥1000mΩ (500VDC)
Dielectric strength	Between coil and contacts ≥2500VAC1min
Dielectric strength	Between open contacts ≥1200VAC1min
Operate/ Release time	≤ 40ms/ 25ms
Terminal Type	Screw

Contact Specification

Contact Form	1Z, 1H, 1D	2Z, 2H, 2D
Contact Resistance	≤100mΩ (1A 6VDC)
Contact Material	AgCdO, AgSnO2
Contact Capacity	80A 250VAC/ 30VDC 120A 250VAC/ 30VDC	80A 250VAC/ 30VDC

Coil Specification

Rated Coil Power

80A DC2.5W AC4.0VA
120A DC2.0W AC4.0VA

Coil Date

Nominal voltage VDC	Operate voltage VDC	Release voltage VDC	Coil resistance Ω±10%	Nominal voltage VAC	Operate voltage VAC	Release voltage VAC	Coil resistance Ω±10%
6	4.80	0.60	18	6	4.80	1.80	9
12	9.60	1.20	70	12	9.60	3.60	36
24	19..20	2.40	290	24	19.20	7.20	144
48	38.40	4.80	1150	48	38.40	14.40	576
60	48	6.00	1800	110	88.00	36.00	3500
110	88.0	11.0	6050	220/240	176.00	72.00	12000/14400
