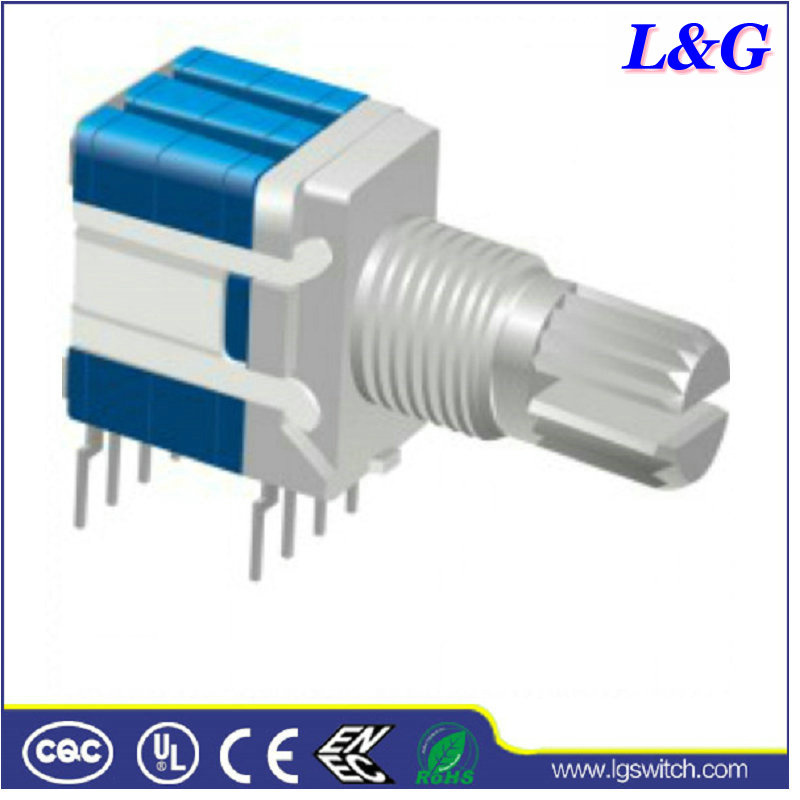

Power Selector 10mm Rotary Pulse Switch (RS1010)

Name: Power Selector 10mm Rotary Pulse Switch (RS1010)
Brand: all-electronics-online.com
SKU: 702701852
Availability: InStock
Rating: 4.5 (61 reviews)

Price:	US $ 0.01-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS1010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Changeover Angle:	30±3°
Actuator Length:	15mm
Rotational Torque:	40±20mn M
Rating:	0.1A 16V DC/50ua 3V DC
Mechanical Life:	10,000 Cycles
Voltage Proof:	100V AC for 1 Minute
Push Direction:	100n
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	RoHS
Condition:	New

Product Description

SR1010:

Poles: 2.3.4
Positions : 2.3.4
Changeover angle : 30±3°
Changeover timing :Non shorting
Rotational torque : 40±20mN·M
Actuator length :L: 15mm
Rating (max.)/(min.) (Resistive load) : 0.1A 16V DC/50µA 3V DC
Electrical performance Contact resistance (Initial performance/After lifetime) : 50mΩ max./150mΩ max.
Insulation resistance : 100MΩ min. 100V DC
Voltage proof : 100V AC for 1 minute
Mechanical performance Terminal strength : 5N for 1 minute
Actuator strength Rotational direction : 0.5N·m
Push direction :100N
Wobble of actuator (load at the tip of shaft: 5N) Measuring position from mounting surface :10mm
Durability Operating life without load : 10,000 cycles 100mΩ max.
Operating life with load (at max. rated load) :10,000 cycles 150mΩ max.
Environmental performance Cold : -40±2C for 96h
Dry heat : 85±2C for 96h
Damp heat :40±2C, 90 to 95%RH for 96h

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
